Dc-Dc Converter: Components

Fig 1: Exploded View Of DC-DC Converter Components (1 Of 2)
G04113743Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

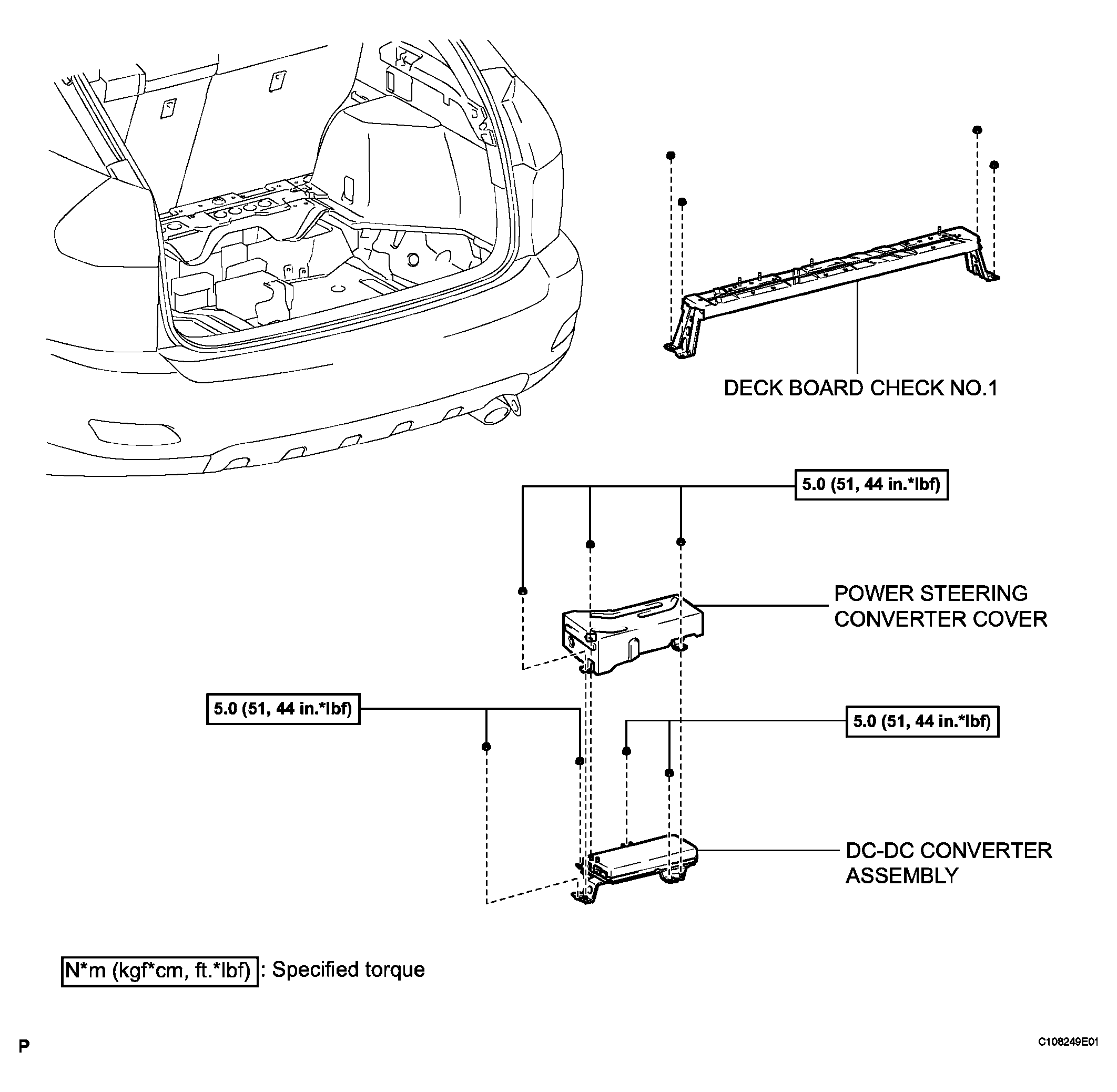

Fig 2: Exploded View Of DC-DC Converter Components With Torque Specifications (2 Of 2)
G04113744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
