Fuel Tank: Components

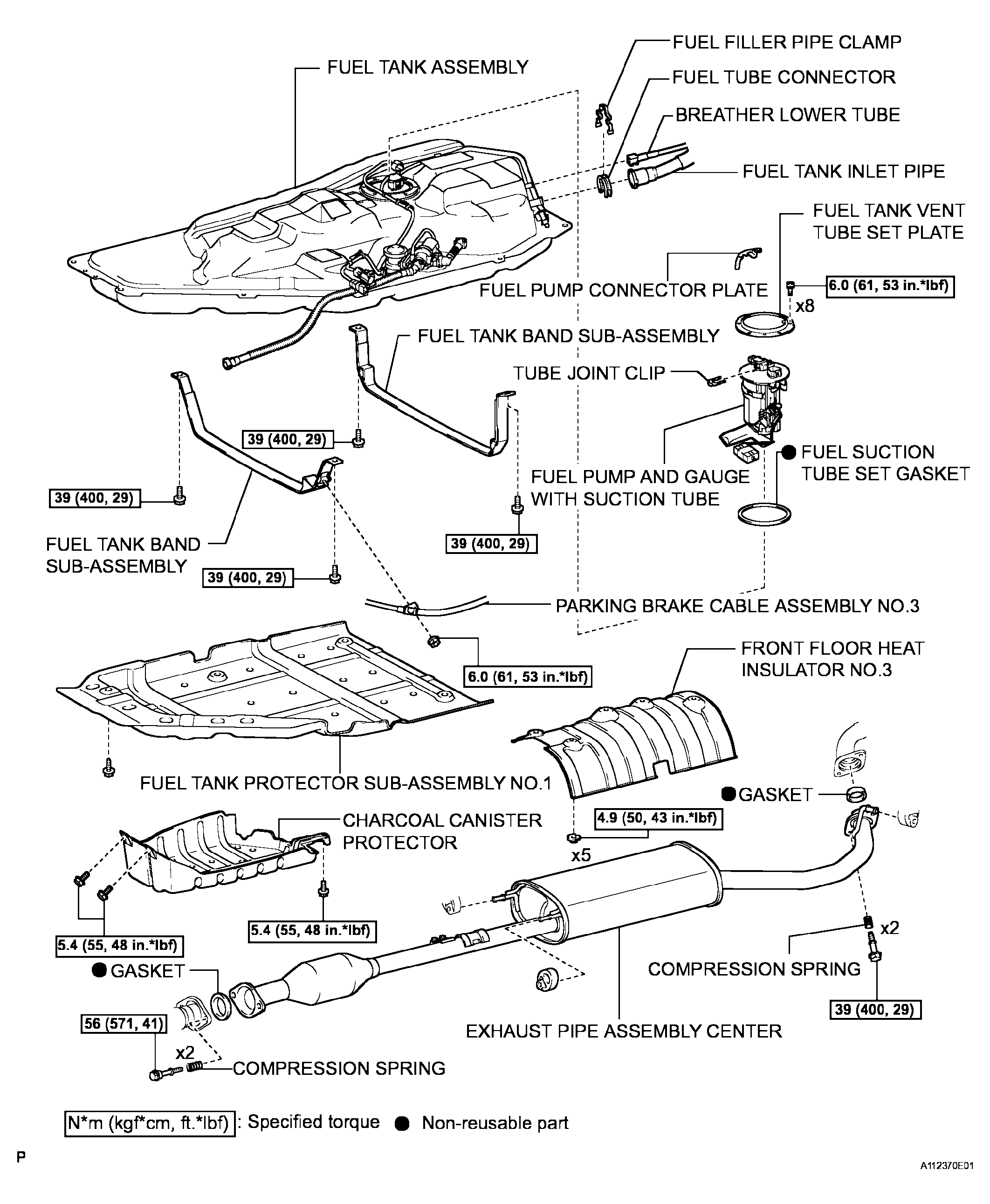

Fig 1: Fuel Tank Replacement Components With Torque Specifications (1 Of 2)
G04111540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

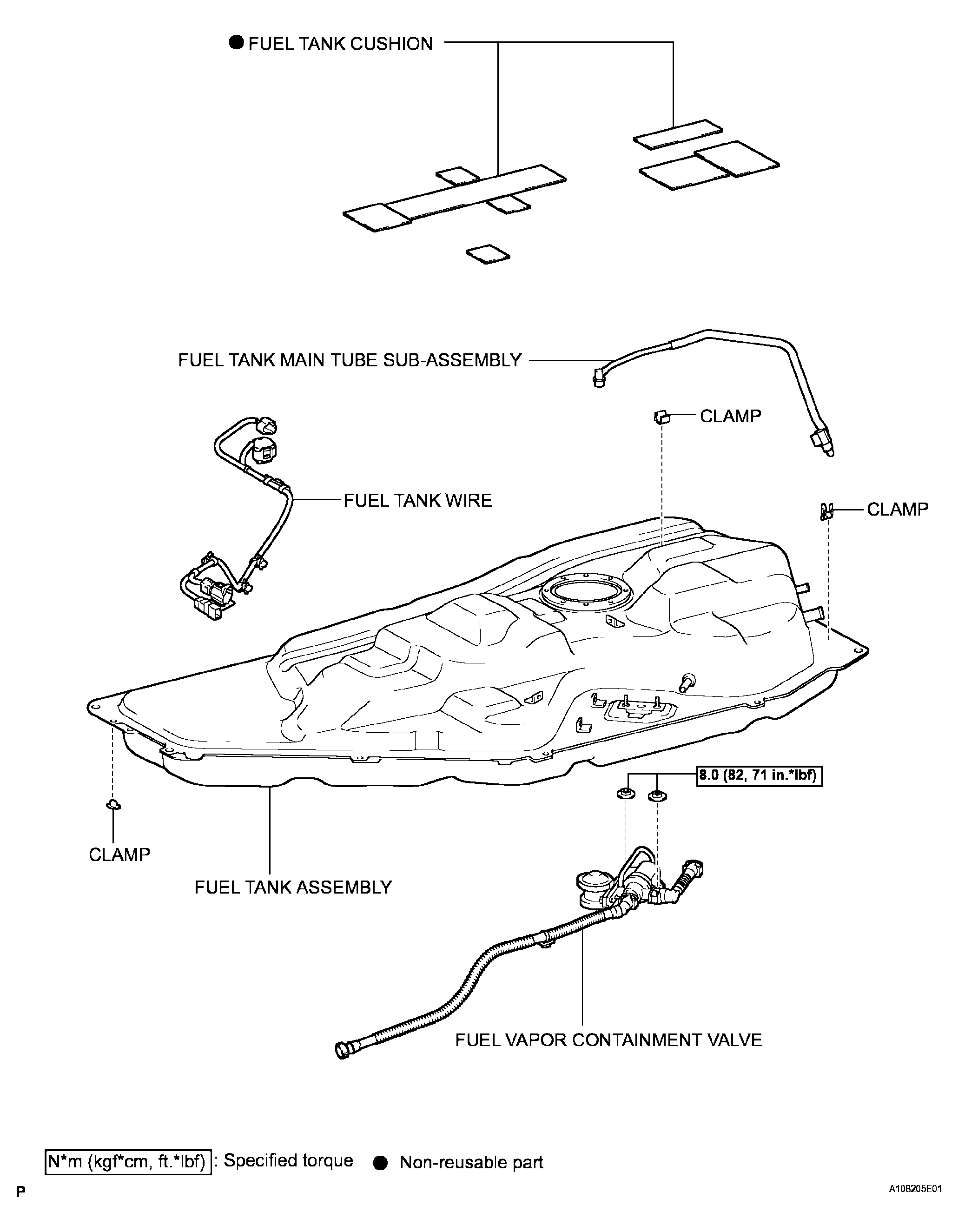

Fig 2: Fuel Tank Replacement Components With Torque Specifications (2 Of 2)
G04111541Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
