Customize Parameters

Buzzer ON/OFF Setting

The buzzer ON/OFF setting, which is a setting of the buzzer function of the combination meter, can disable the driver side seat belt buzzer and front passenger side seat belt buzzer.

NOTE: Basically, these buzzers should be set on for safe driving. Perform the procedures only if it is necessary to set the buzzer off.

Fig 1: Displaying Buzzer On/Off Setting

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

PROCEDURE:

PROCEDURE REFERENCE

Steps	Driver Side and Passenger Side Seat Belt Buzzer	Front Passenger Side Seat Belt Buzzer
1	Turn the ignition switch ON.	Turn the ignition switch ON.
2	Press the ODO/TRIP switch until the odometer displays "ODO".	Press the ODO/TRIP switch until the odometer displays "ODO".
3	Turn the ignition switch OFF.	Turn the ignition switch OFF.
4	Turn the ignition switch ON.	Turn the ignition switch ON.
5	Press the ODO/TRIP switch immedeately (within 6 seconds) and hold it down for 10 seconds or more.	Sit in the front passenger seat. Press the ODO/TRIP switch immediately (within 6 seconds) and hold it down for 10 seconds or more.
6	Continue holding down the ODO/TRIP switch and fasten the driver side seat belt.	Continue holding down the ODO/TRIP switch, fasten and release the passenger side seat belt.
7	Check that the odometer displays either "SEAT BELT BUZZER ON" or "SEAT BELT BUZZER OFF"	Check that the odometer displays either "SEAT BELT BUZZER ON" or "SEAT BELT BUZZER OFF"
8	Press the ODO/TRIP switch to change the display to "SEAT BELT BUZZER OFF".	Press the ODO/TRIP switch to change the display to "SEAT BELT BUZZER OFF".
9	Turn the ignition switch OFF.	Turn the ignition switch OFF.
10	Turn the ignition switch ON.	Turn the ignition switch ON.
11	Check that no buzzer sounds.	Check that no buzzer sounds.
*: "SEAT BELT BUZZER OFF" indicates that the buzzer is OFF. "SEAT BELT BUZZER ON" indicates that the buzzer is ON. The buzzer ON/OFF setting will be finished (the odometer will display "ODO") if the ODO/ TRIP switch is not operated for 10 seconds or more. In this case, perform step 11 to check that the buzzer ON/ OFF setting is complete. If it is not complete, start from step 1 again.

NOTE: When either the battery cable or the combination meter connector is disconnected, these buzzers are set on.

OTHER PARAMETERS (Using Intelligent Tester)

HINT:

The following item can be customized.

NOTE:

Be sure to record the current value before customizing.
When performing troubleshooting, be aware that the functions may be set to OFF by customizing. (Example: In case of the symptom in which "The wireless operation does not function", check that the wireless operation is not set to OFF by customizing, then perform the troubleshooting.)

METER:

METER

Display (Item)	Default	Contents	Setting
KEY REMND SOUND	NORMAL	Function to change cycle of key remind warning buzzer.	600 / 900 / 1,200 ms
¹ : U.S.A. ² : Except U.S.A.

TIME ZONE SETTING (w/ Navigation System)

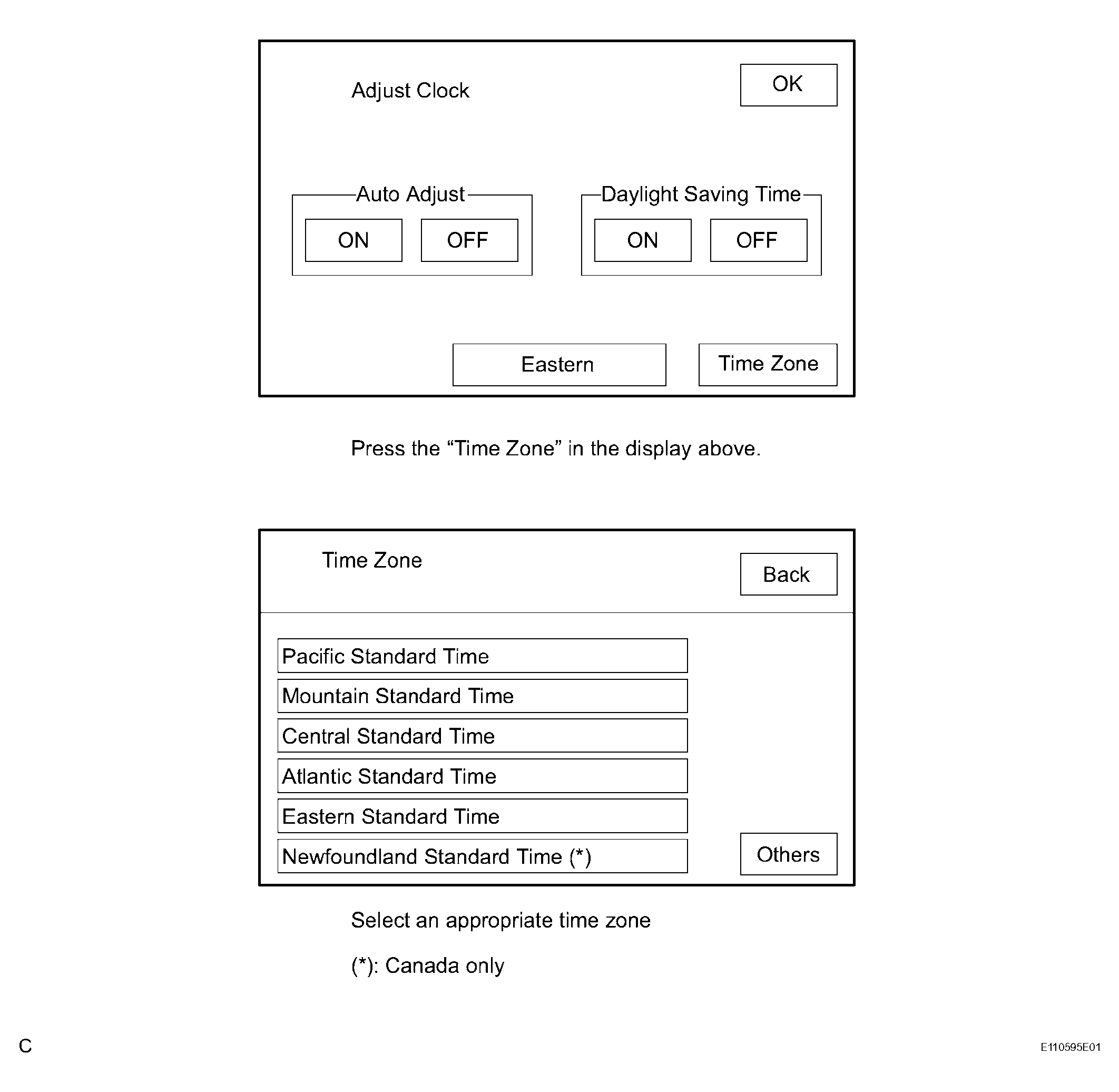

Fig 2: Displaying Time Zone Setting (W/ Navigation System)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
