Power Tilt and Power Telescopic: Notes

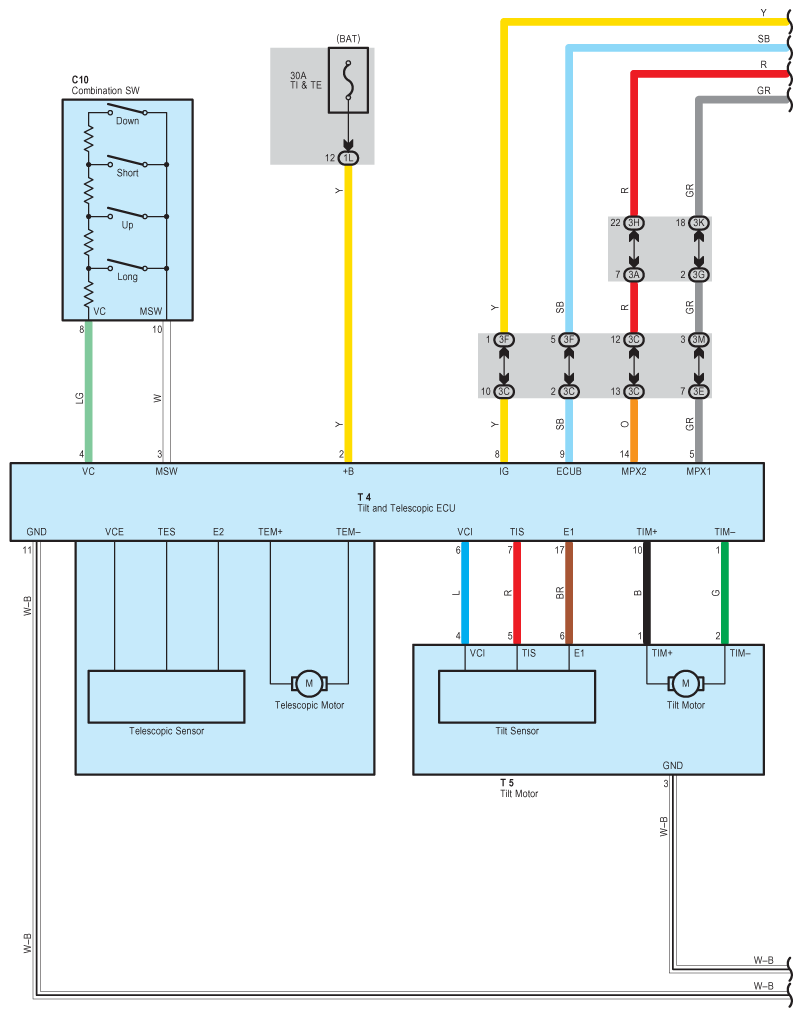

Fig 1: Power Tilt And Power Telescopic Wiring Diagram (1 Of 4)
G08914865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

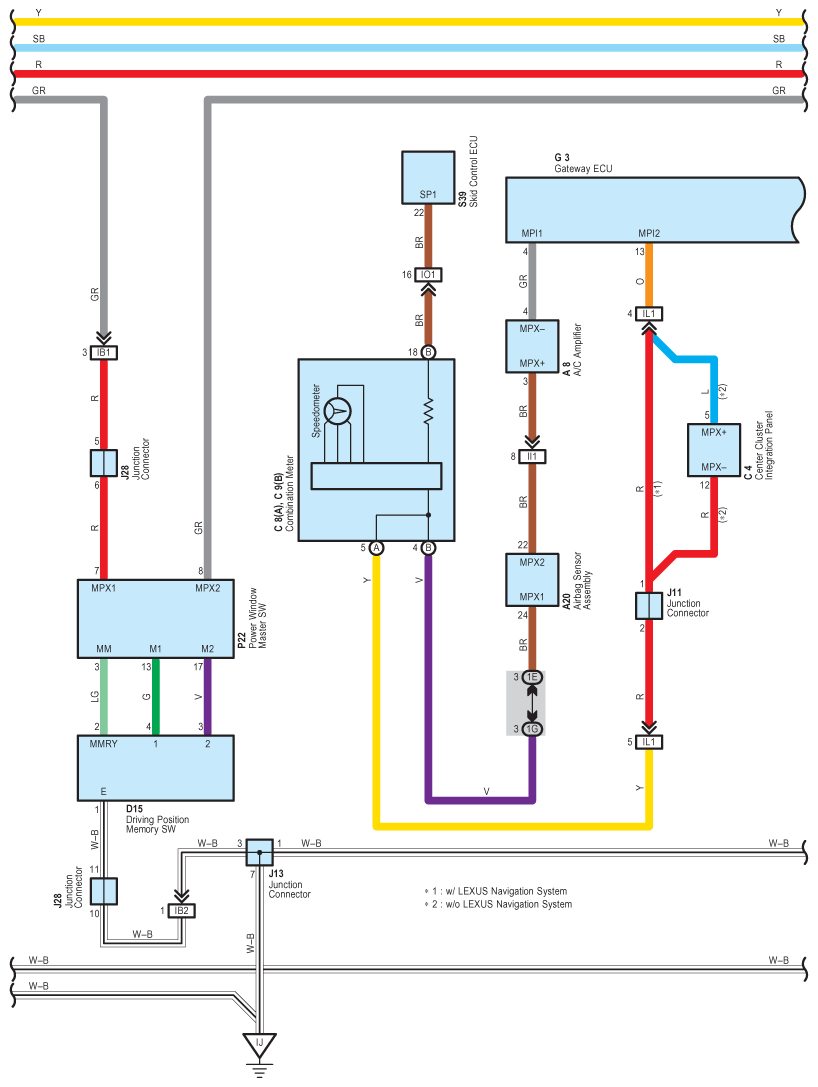

Fig 2: Power Tilt And Power Telescopic Wiring Diagram (2 Of 4)
G08914866Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

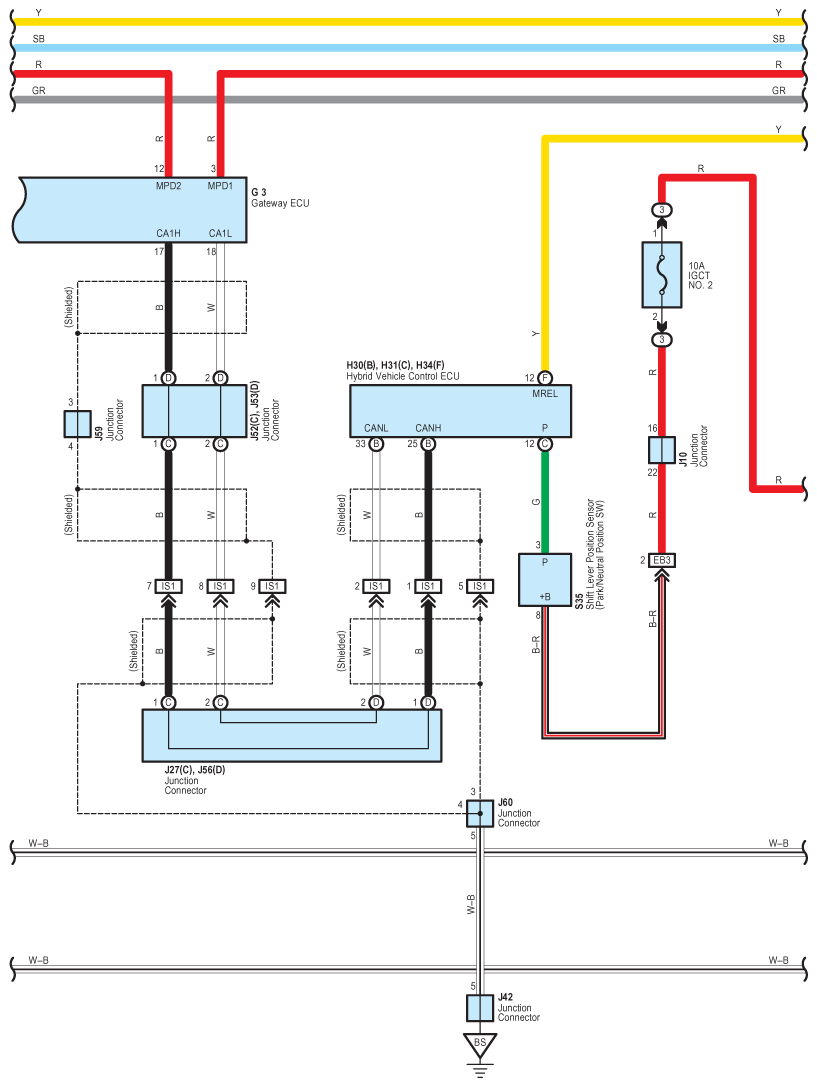

Fig 3: Power Tilt And Power Telescopic Wiring Diagram (3 Of 4)
G08914867Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

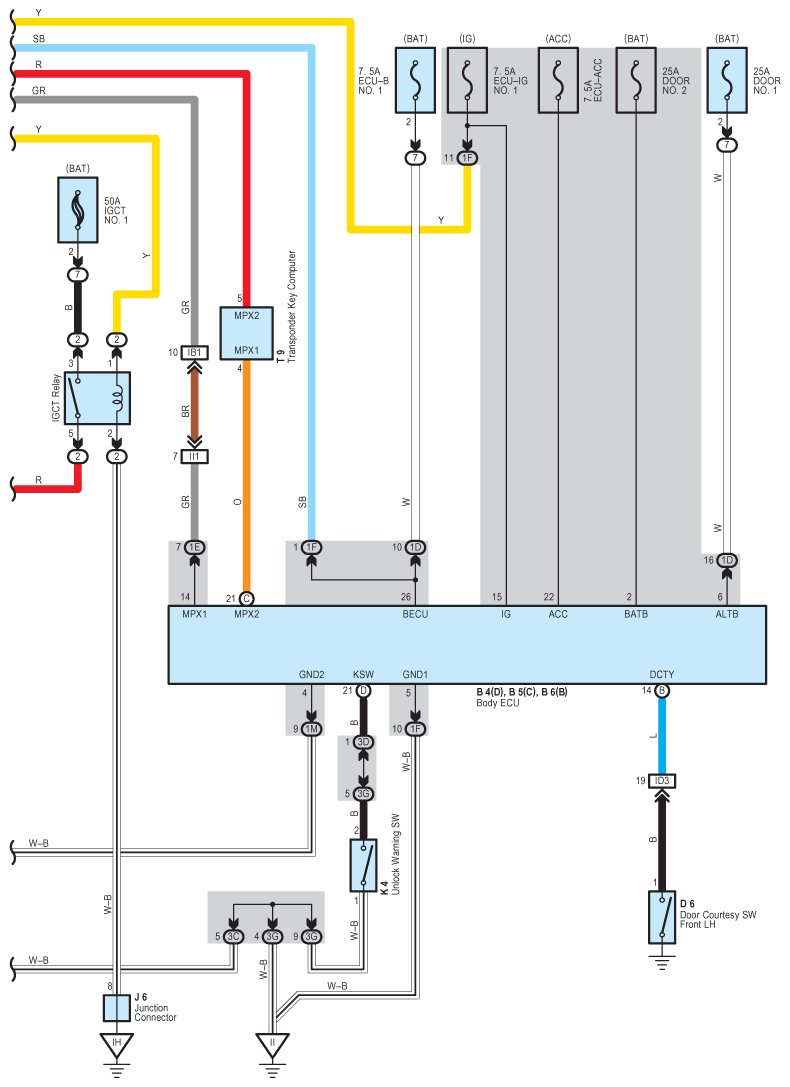

Fig 4: Power Tilt And Power Telescopic Wiring Diagram (4 Of 4)
G08914868Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
