Hybrid Vehicle Immobiliser System: Notes

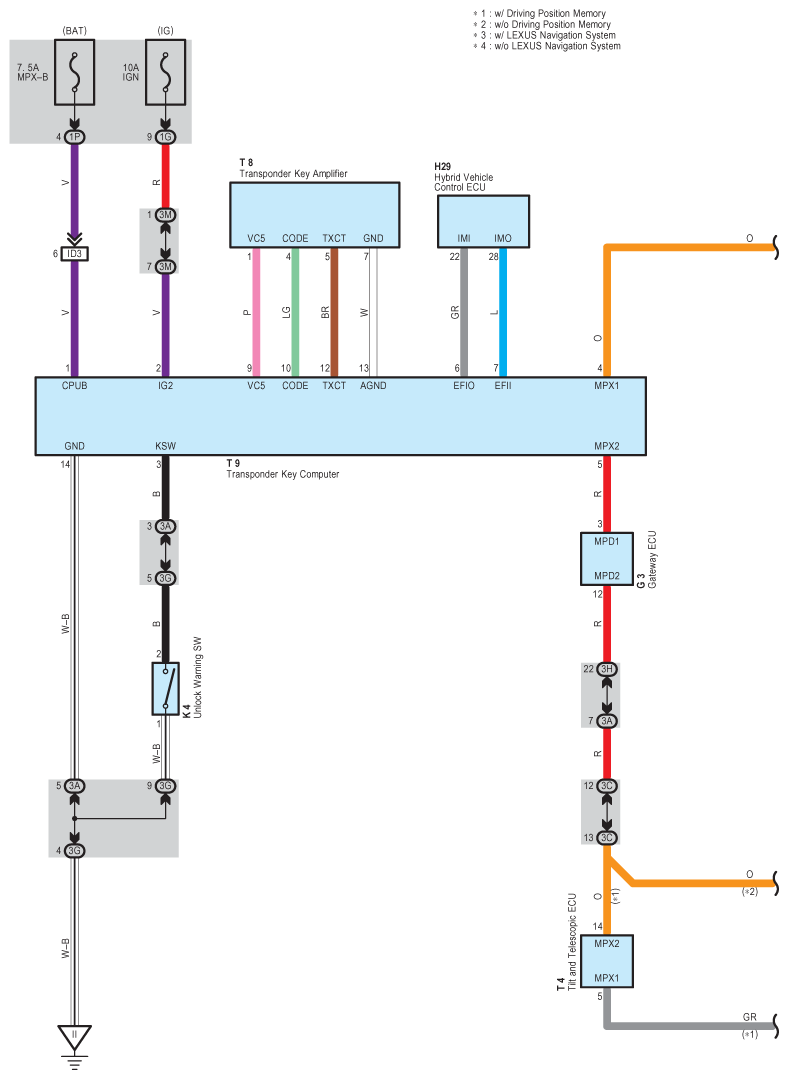

Fig 1: Hybrid Vehicle Immobiliser System Wiring Diagram (1 Of 2)
G08914695Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

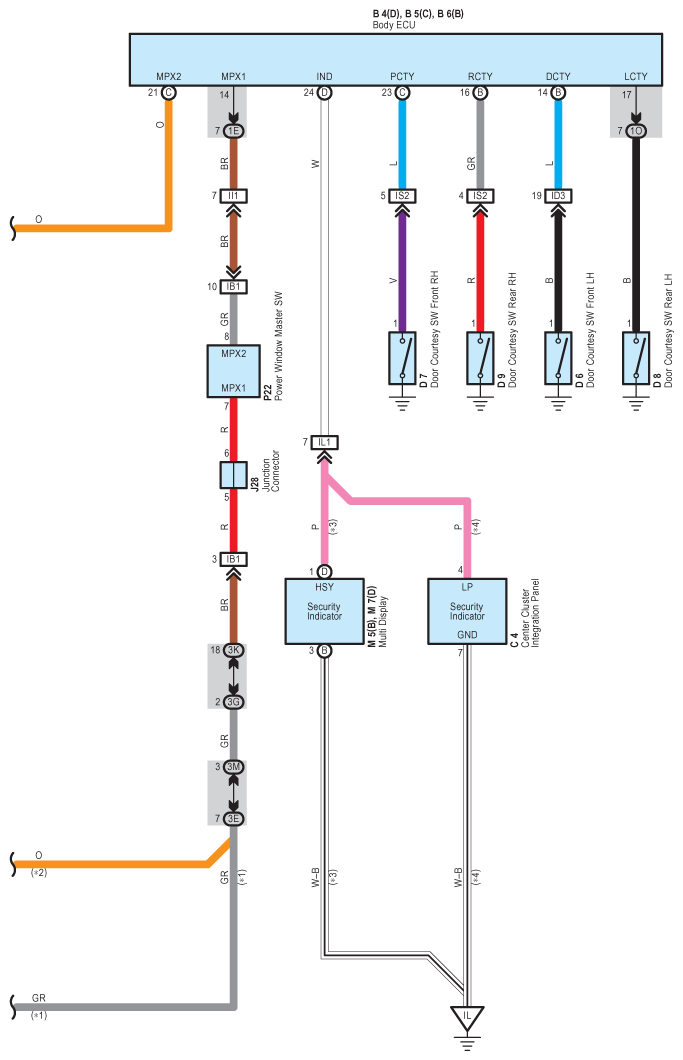

Fig 2: Hybrid Vehicle Immobiliser System Wiring Diagram (2 Of 2)
G08914696Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
