Power Point Socket: Removal

  1. REMOVE CONSOLE BOX HOLE COVER (See  REMOVAL  )
  2. REMOVE NO. 2 CONSOLE BOX HOLE COVER (See  REMOVAL  )
  3. REMOVE REAR CONSOLE BOX (See  REMOVAL  )
  4. REMOVE CONSOLE COVER LOWER
  5. REMOVE POWER POINT SOCKET
    1. Turn the power point socket in counterclockwise as shown in the illustration and disengage the claw between the power point socket and the power point socket cover.
    2. Push out the power point socket.
      Fig 1: Turning Power Point Socket Counterclockwise
      G04115995Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

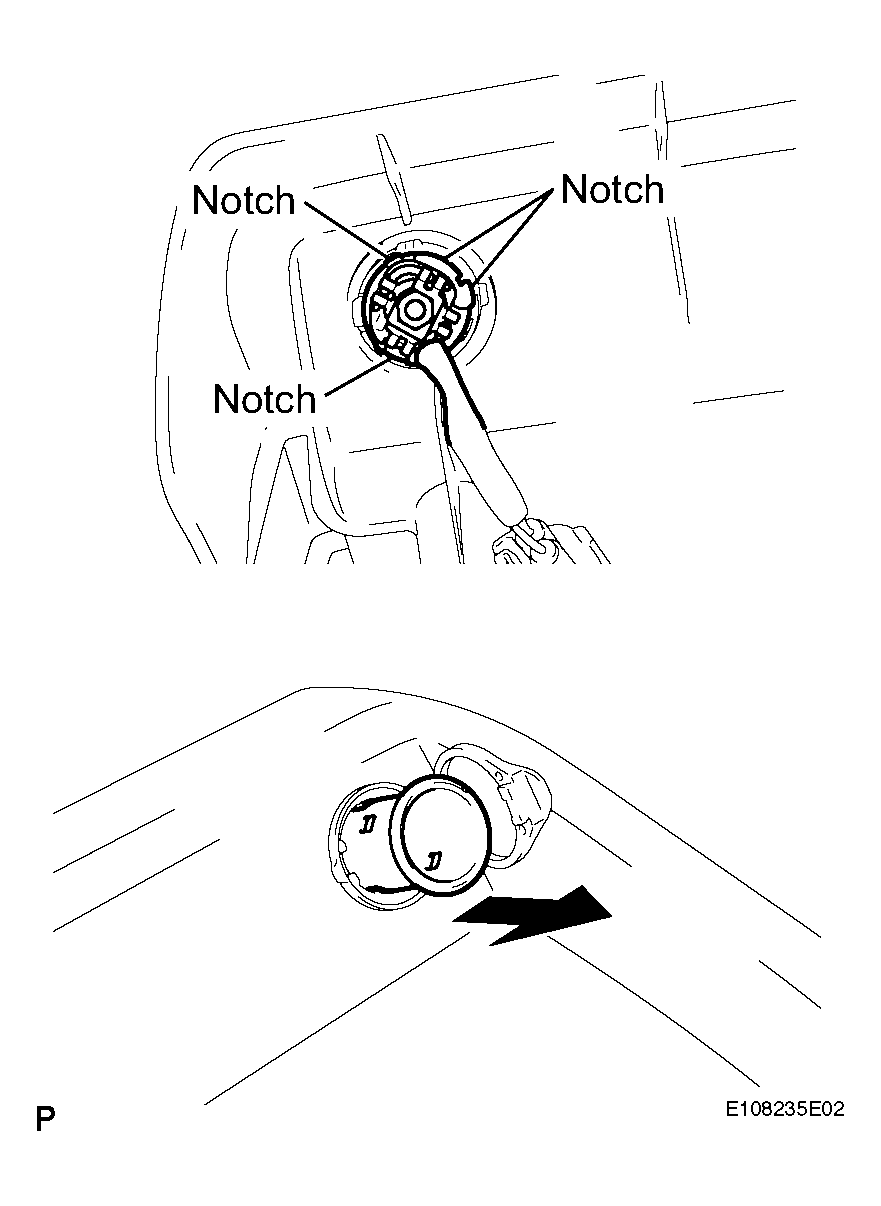

    3. Align the power point socket with the notch on the power point socket cover, and remove the power point socket.
      Fig 2: Identifying Power Point Socket
      G04115996Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE POWER POINT SOCKET COVER
    1. Disengage the 2 claws and remove the power point socket cover.
      Fig 3: Identifying Power Point Socket Cover
      G04115997Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
