No. 2 Power Point Socket: Components

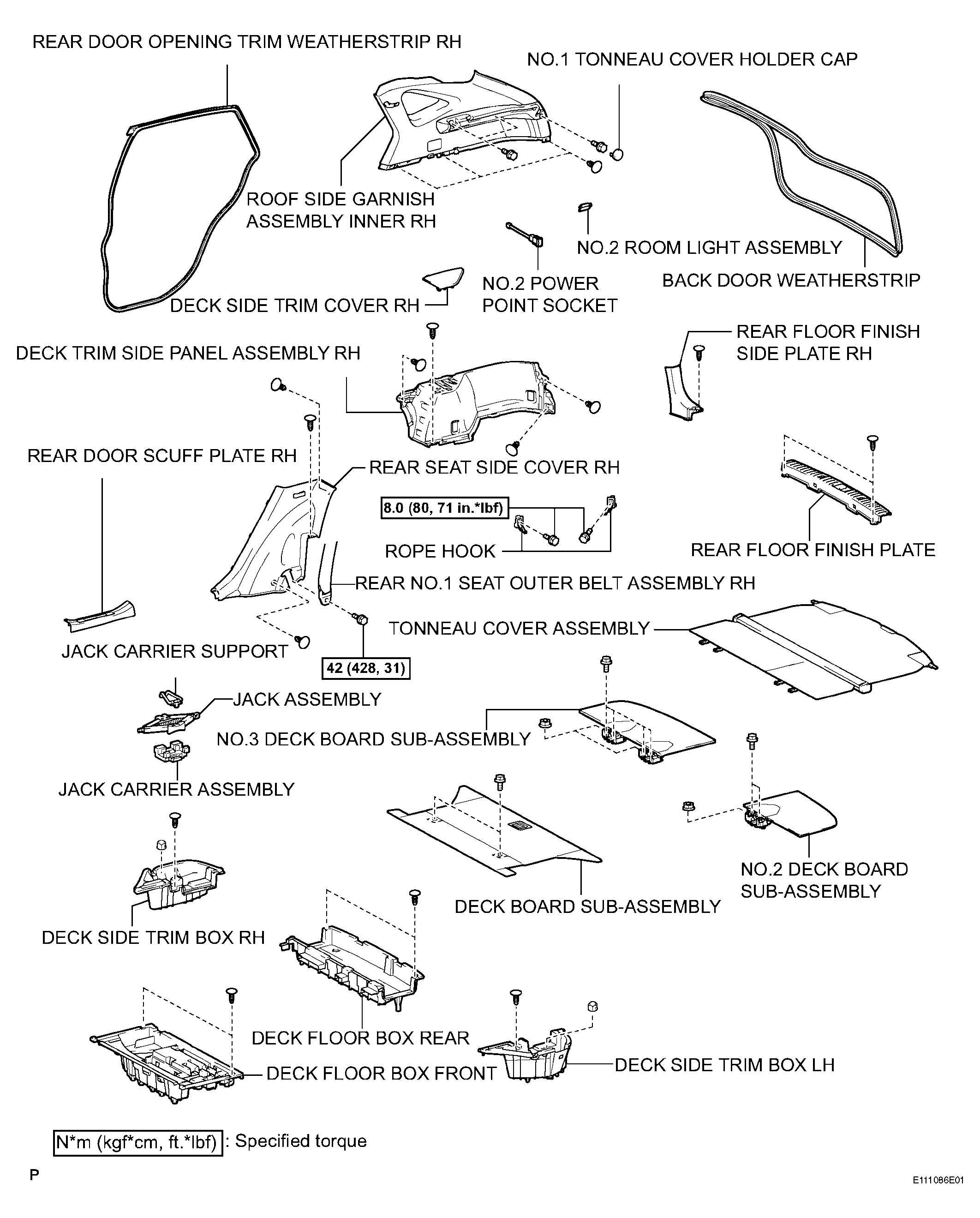

Fig 1: No. 2 Power Point Socket Replacement Components With Torque Specifications

G04116000

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
