Parts Location

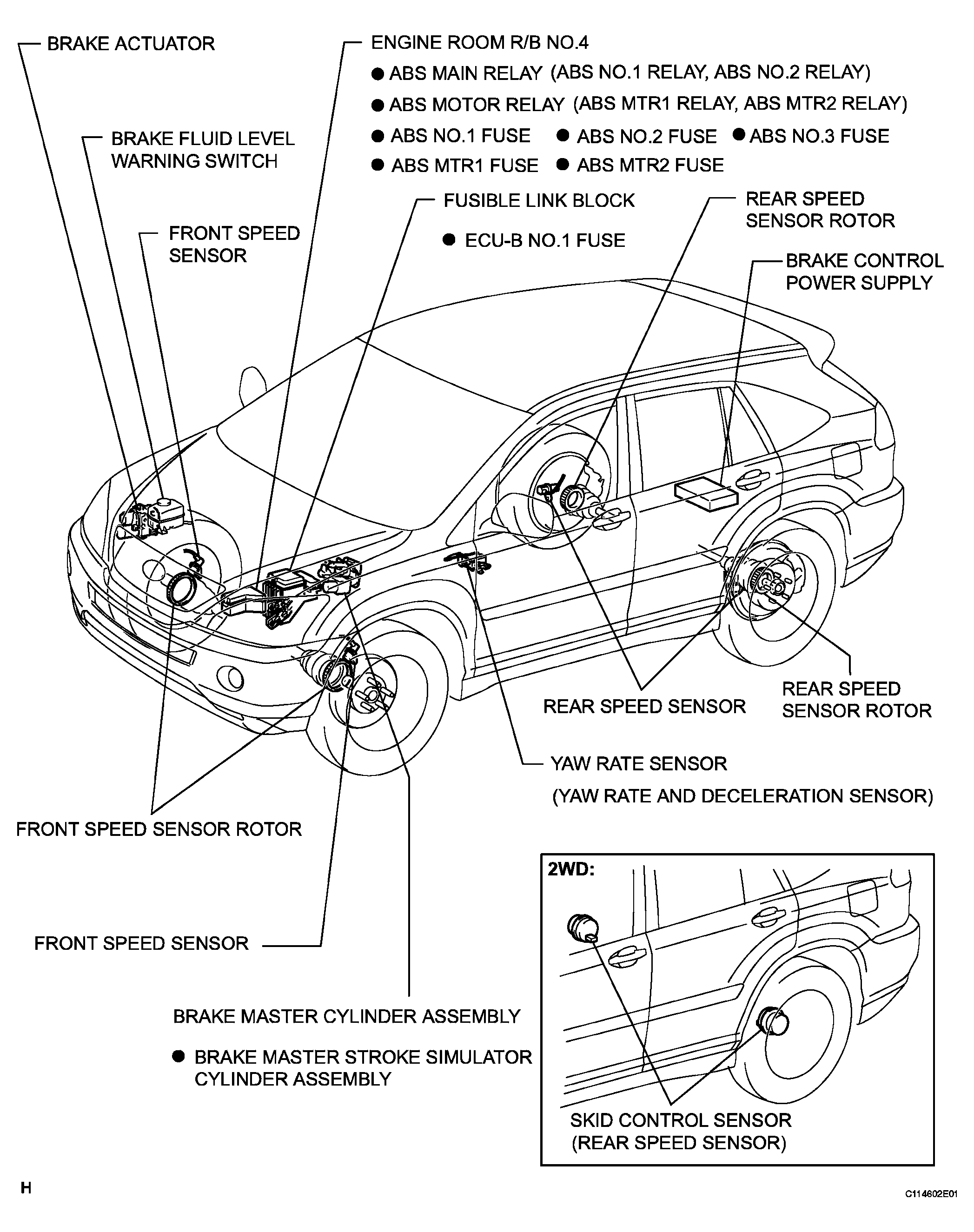

Fig 1: Identifying Electronically Controlled Brake System Parts Location (1 Of 2)
G04113125Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Electronically Controlled Brake System Parts Location (2 Of 2)
G04113126Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
