Brake Pedal Stroke Sensor: Components

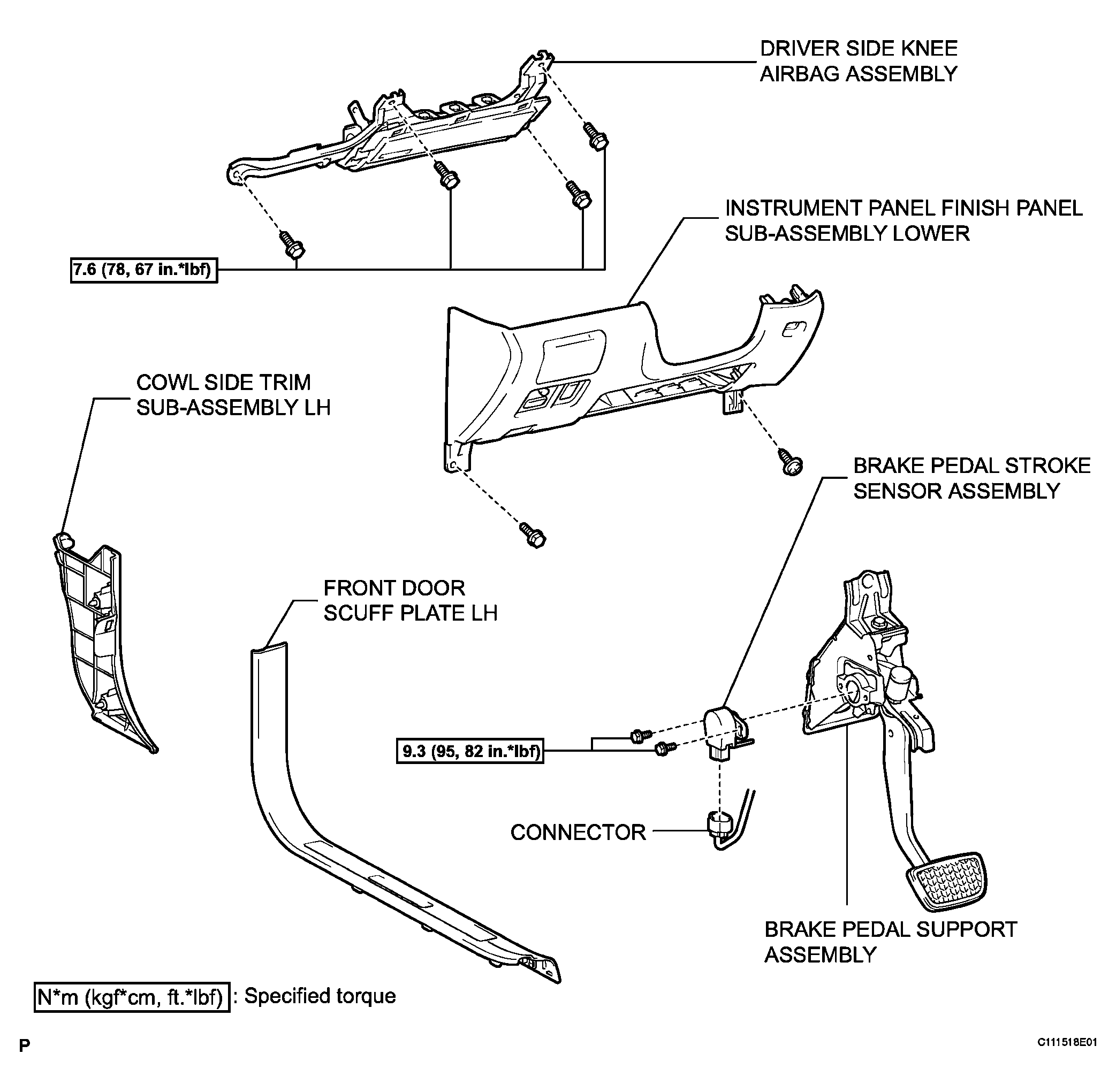

Fig 1: Brake Pedal Stroke Sensor Replacement Components With Torque Specifications
G04113356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
