Front Seat Assembly: Components

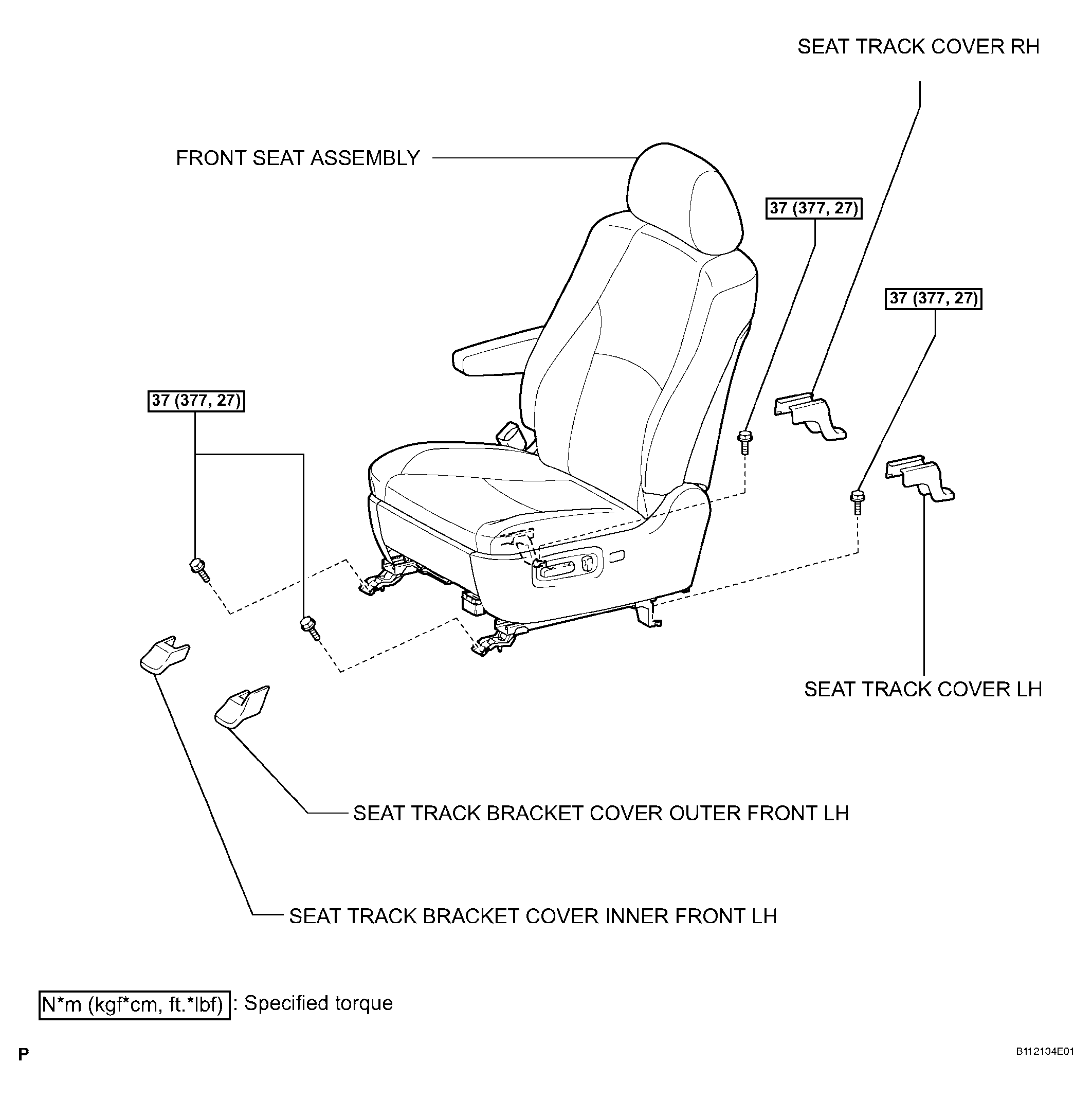

Fig 1: Front Seat Assembly Replacement Components With Torque Specifications (1 Of 5)
G04116274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

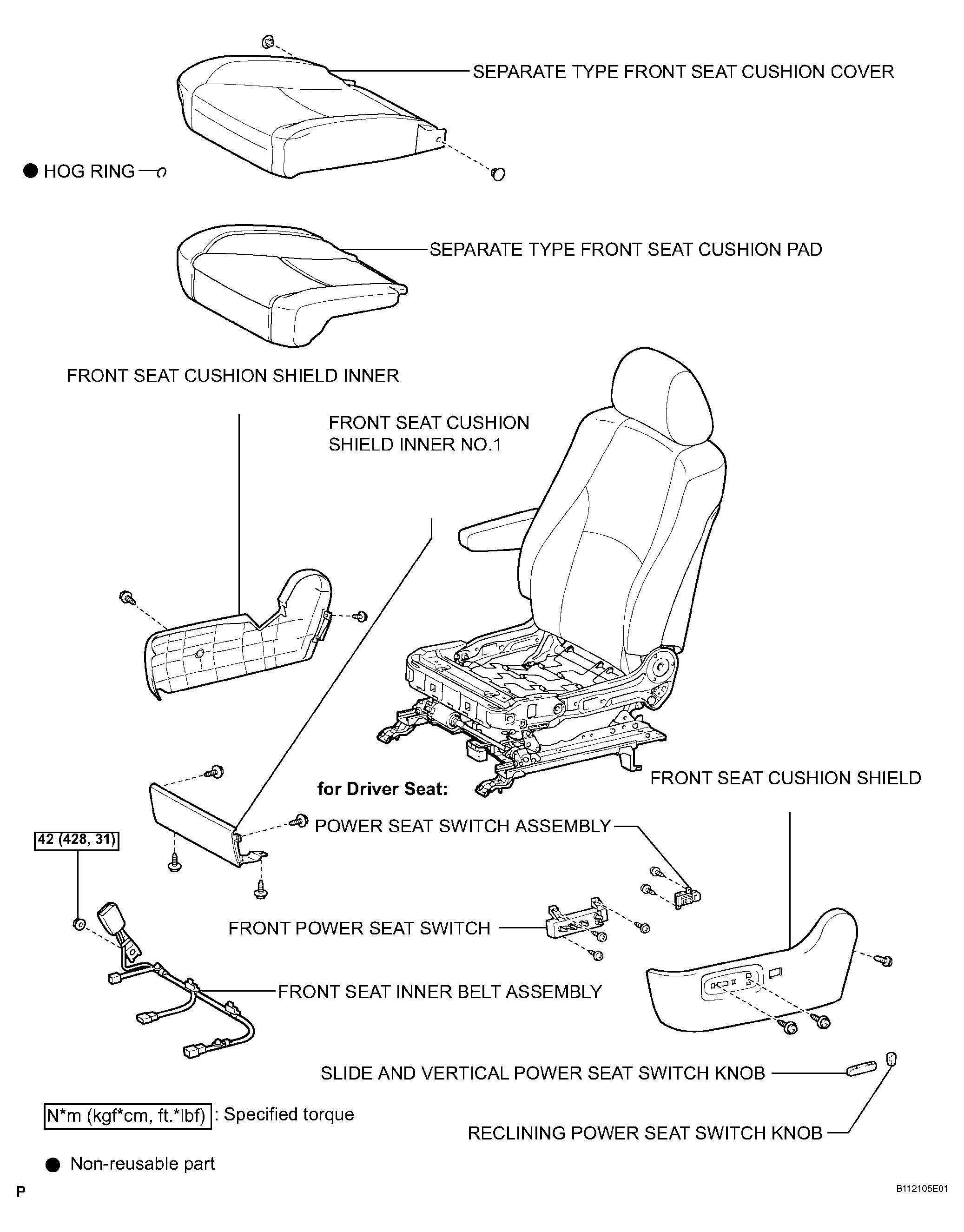

Fig 2: Front Seat Assembly Replacement Components With Torque Specifications (2 Of 5)
G04116275Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

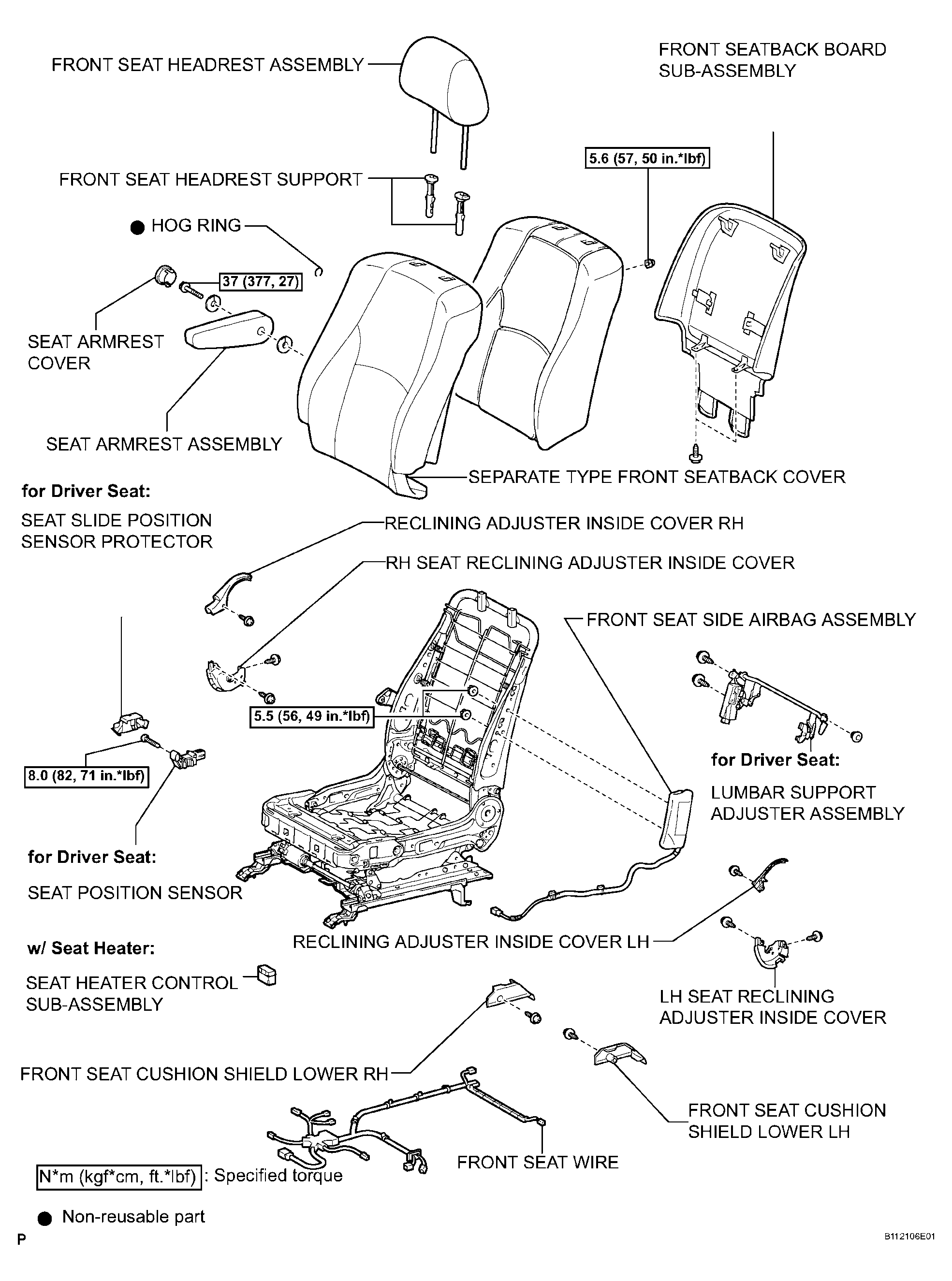

Fig 3: Front Seat Assembly Replacement Components With Torque Specifications (3 Of 5)
G04116276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

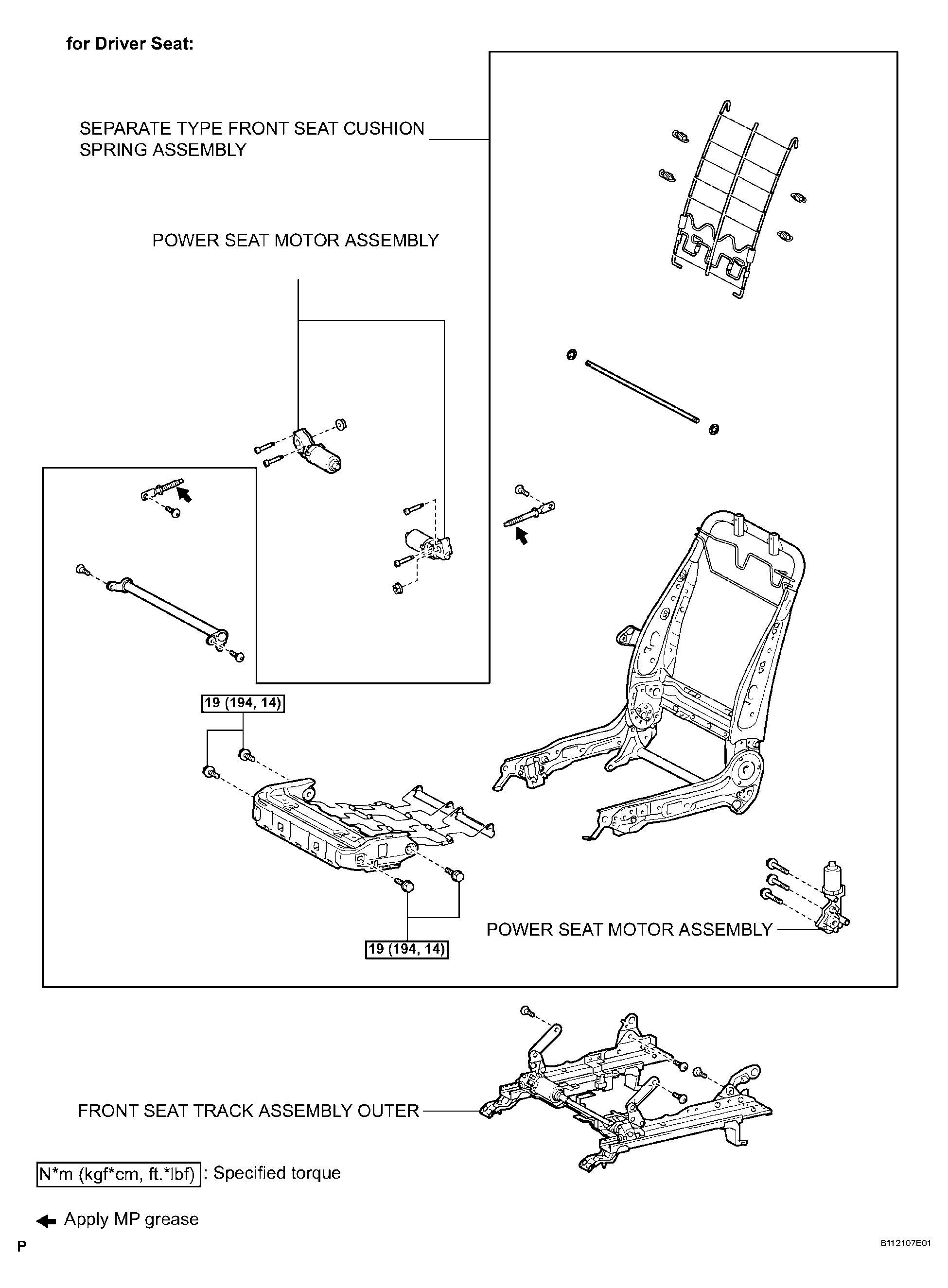

Fig 4: Front Seat Assembly Replacement Components With Torque Specifications (For Driver Seat) (4 Of 5)
G04116277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

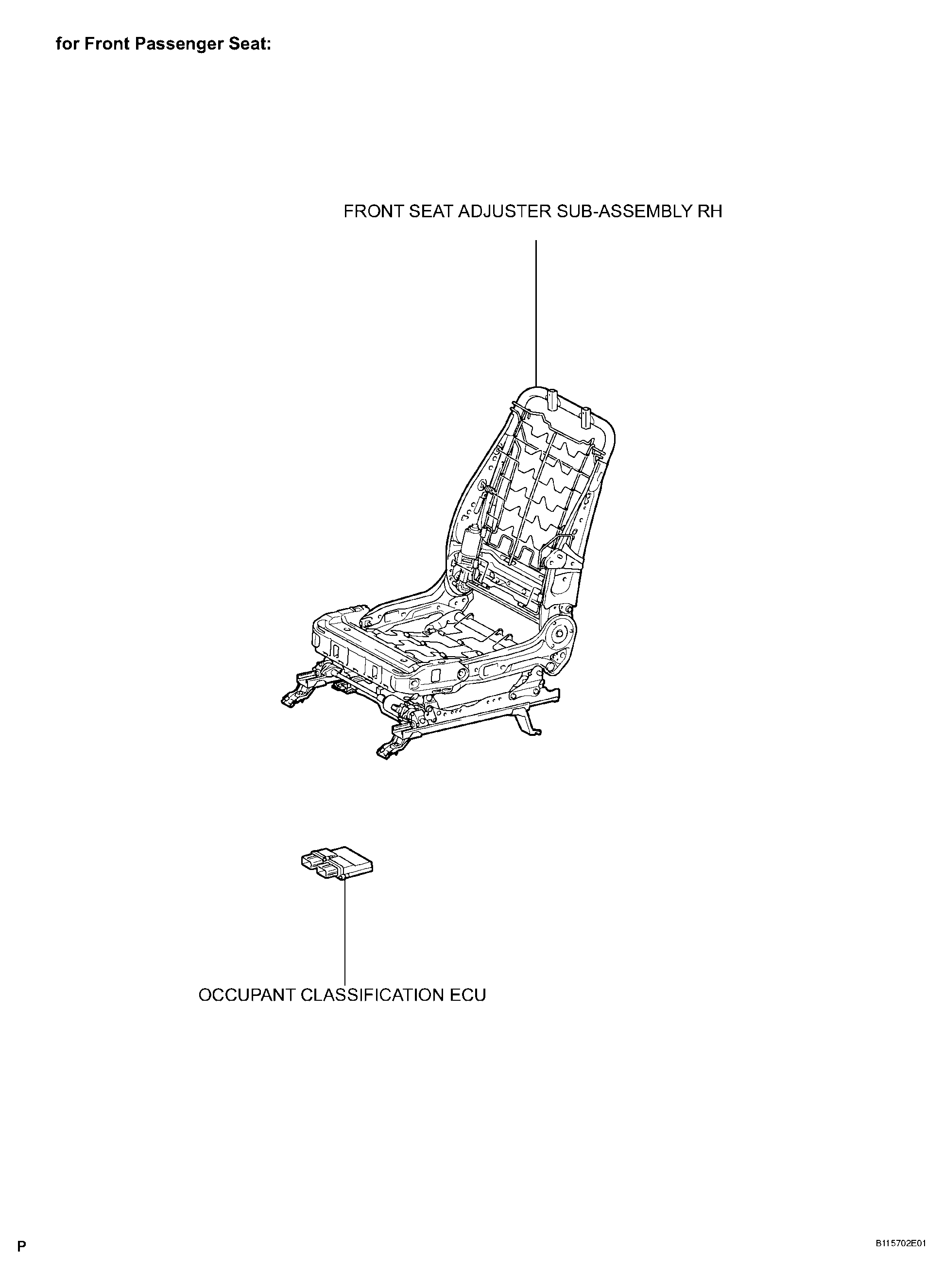

Fig 5: Front Seat Assembly Replacement Components With Torque Specifications (For Front Passenger Seat) (5 Of 5)
G04116278Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
