Unlock Warning Switch: Inspection

  1. INSPECT UNLOCK WARNING SWITCH ASSEMBLY
    1. Remove the unlock warning switch assembly.
    2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION AND SPECIFIED CONDITION

      Tester Connection Switch Position Specified Condition
      1 - 2 Free 10 kΩ or higher
      1 - 2 Pushed Below 1 Ω

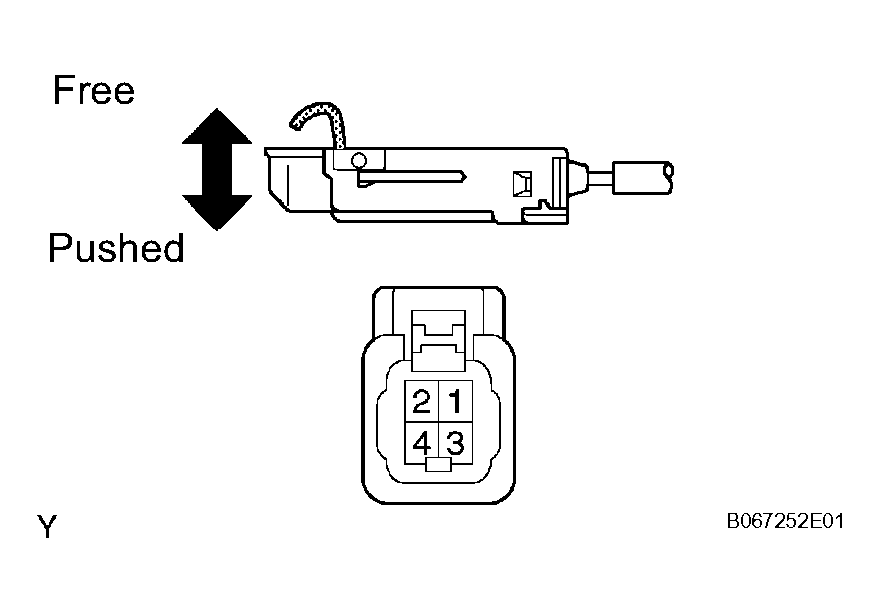

      Fig 1: Inspecting Unlock Warning Switch Assembly
      G04115340Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
