System Diagram

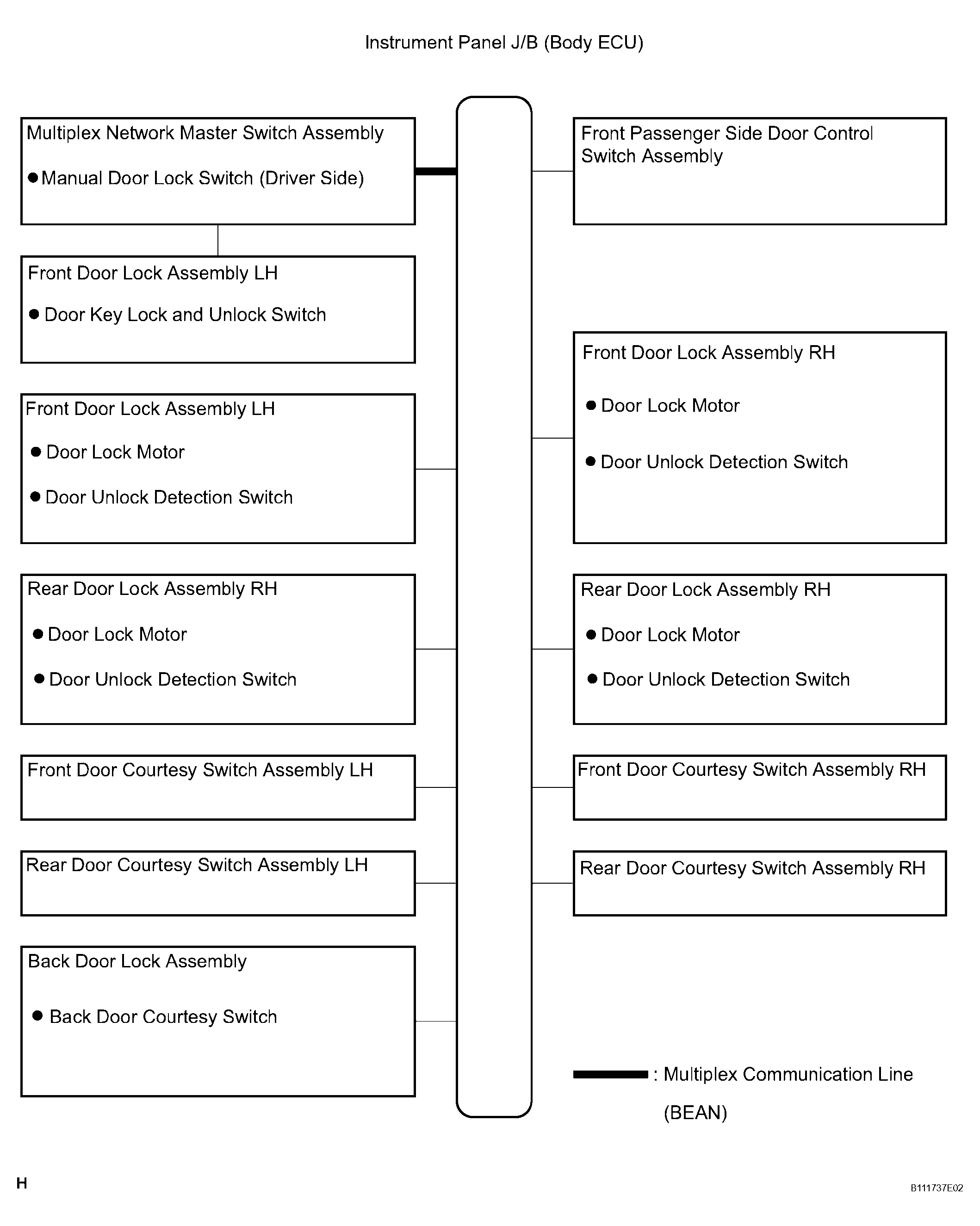

Fig 1: Identifying Door Lock System Diagram

G04115254

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
