Parts Location

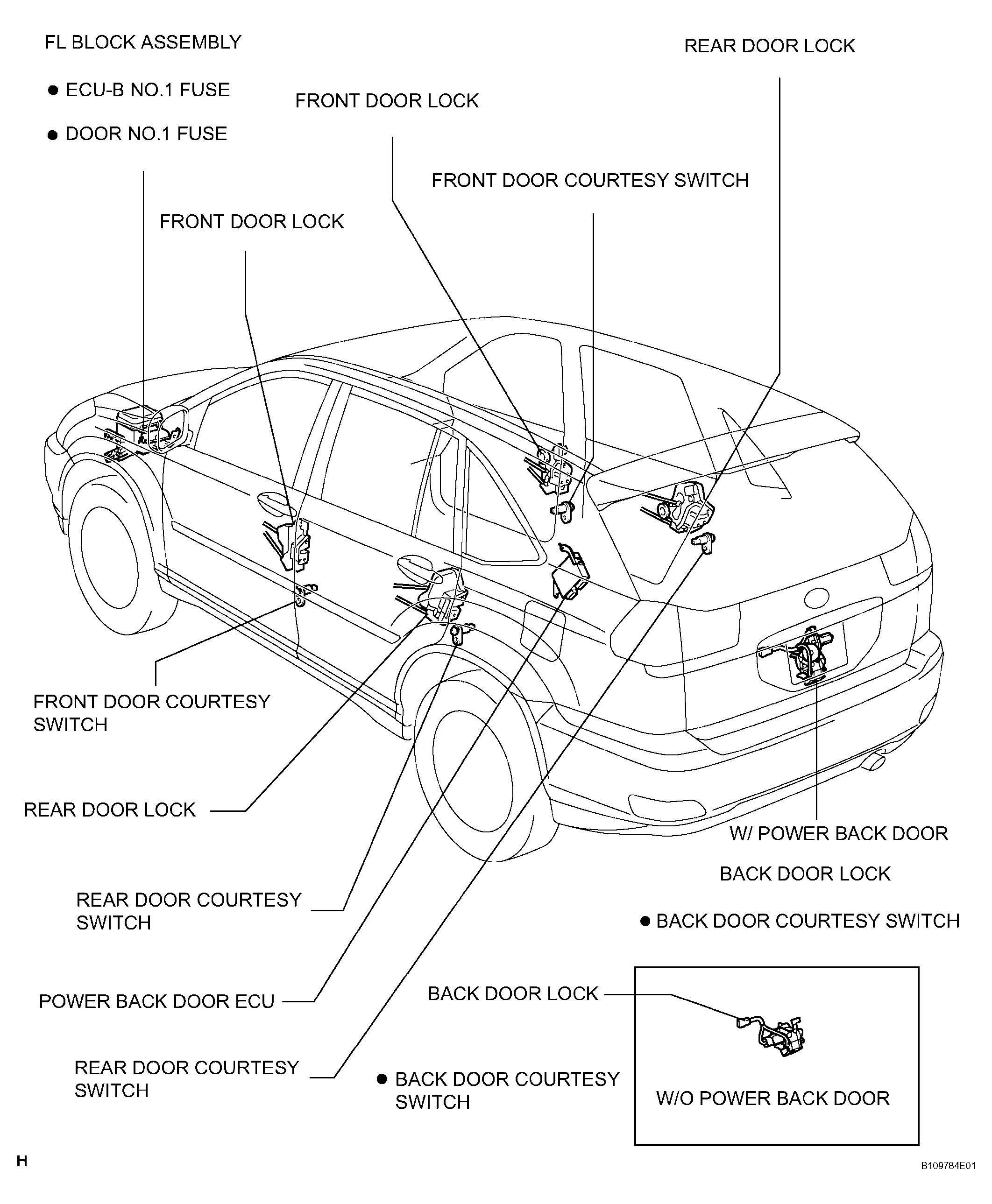

Fig 1: Identifying Door Lock Parts Location (1 Of 2)
G04115252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

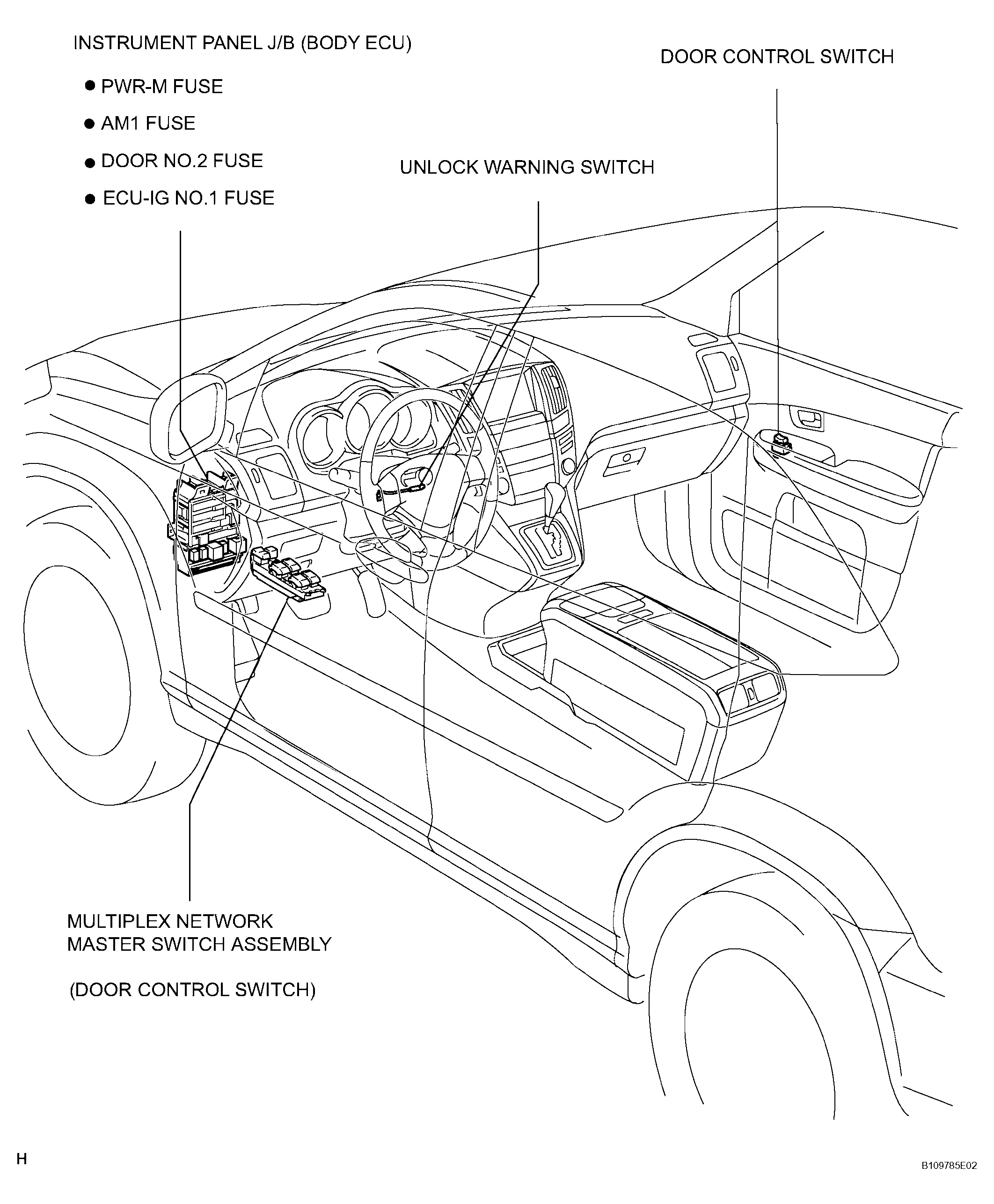

Fig 2: Identifying Door Lock Parts Location (2 Of 2)
G04115253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
