Terminals Of Ecu

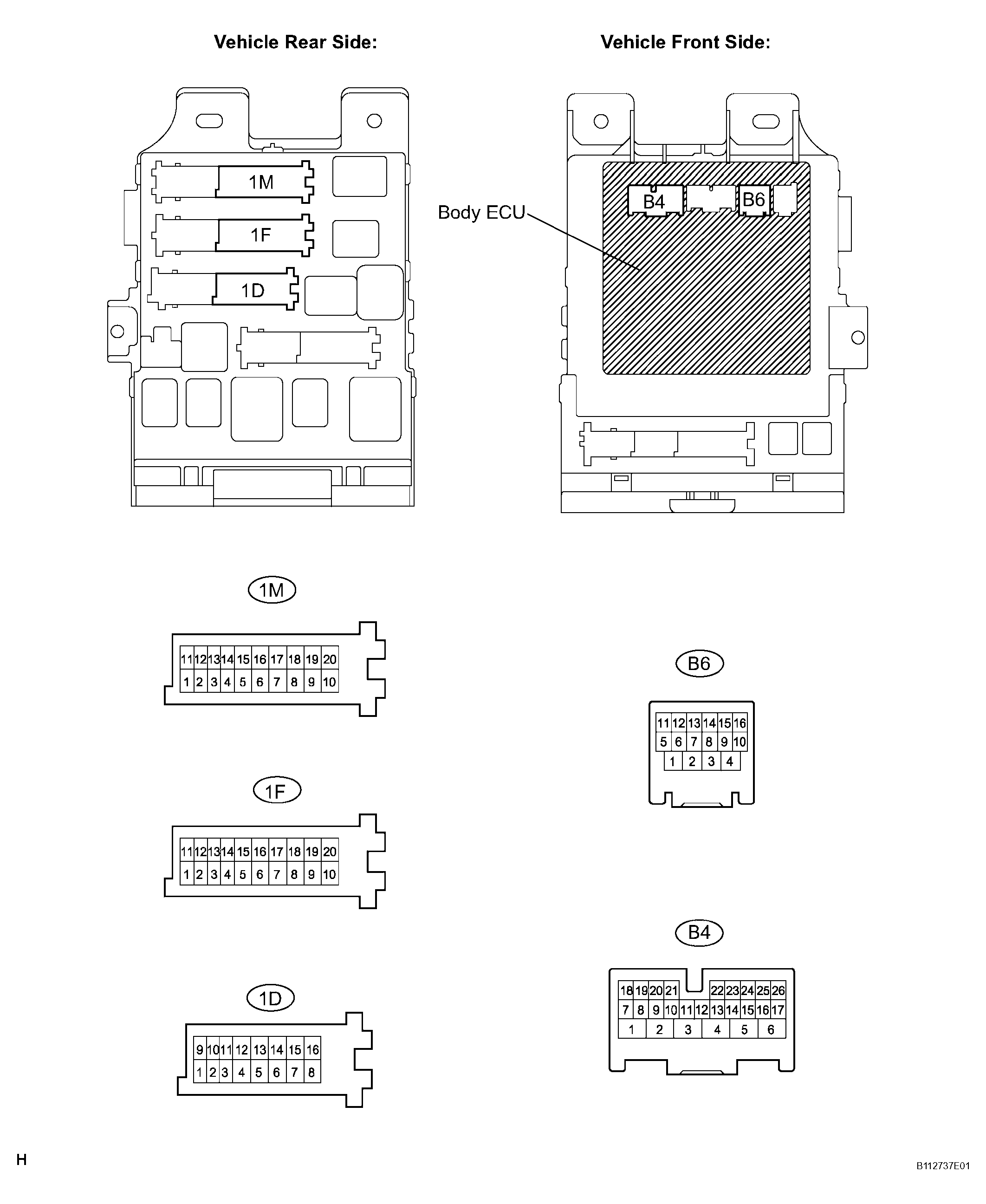

- CHECK INSTRUMENT PANEL J/B ASSEMBLY (BODY ECU)
- Disconnect the B4 and B6 ECU connectors.
- Disconnect the 1D, 1F and 1M J/B connectors.
- Measure the voltage and resistance according to the value(s) in the table below.
Standard resistance
TERMINAL SPECIFICATIONSSymbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition BECU (1D-10) - Body ground W - Body ground +B (BECU) power supply Constant 10 to 14 V GND1 (1F-10) - Body ground W-B - Body ground Ground Constant Below 1 Ω GND2 (1M-9) - Body ground W-B - Body ground Ground Constant Below 1 Ω DCTY (B6-14) - Body ground L - Body ground Driver door courtesy switch input Driver door CLOSED --> OPEN 10 kΩ or higher --> Below 1 Ω KSW (B4-21) - Body ground B - Body ground Key unlock warning switch input No key in ignition key cylinder --> Key inserted 10 kΩ or higher --> Below 1 Ω HINT:
If the result is not as specified, there may be a malfunction on the wire harness side.
- Reconnect the 1D, 1F, 1M, B4 and B6 connectors.
- Measure the voltage according to the value(s) in the table below.
Standard voltage
TERMINAL SPECIFICATIONSSymbols (Terminal No.) Wiring Color Terminal Description Condition Specified Condition DCTY (B6-14) - Body ground L - Body ground Driver door courtesy switch input Driver door CLOSED --> OPEN 10 to 14 --> 0 V
