Front Door Lock: Inspection

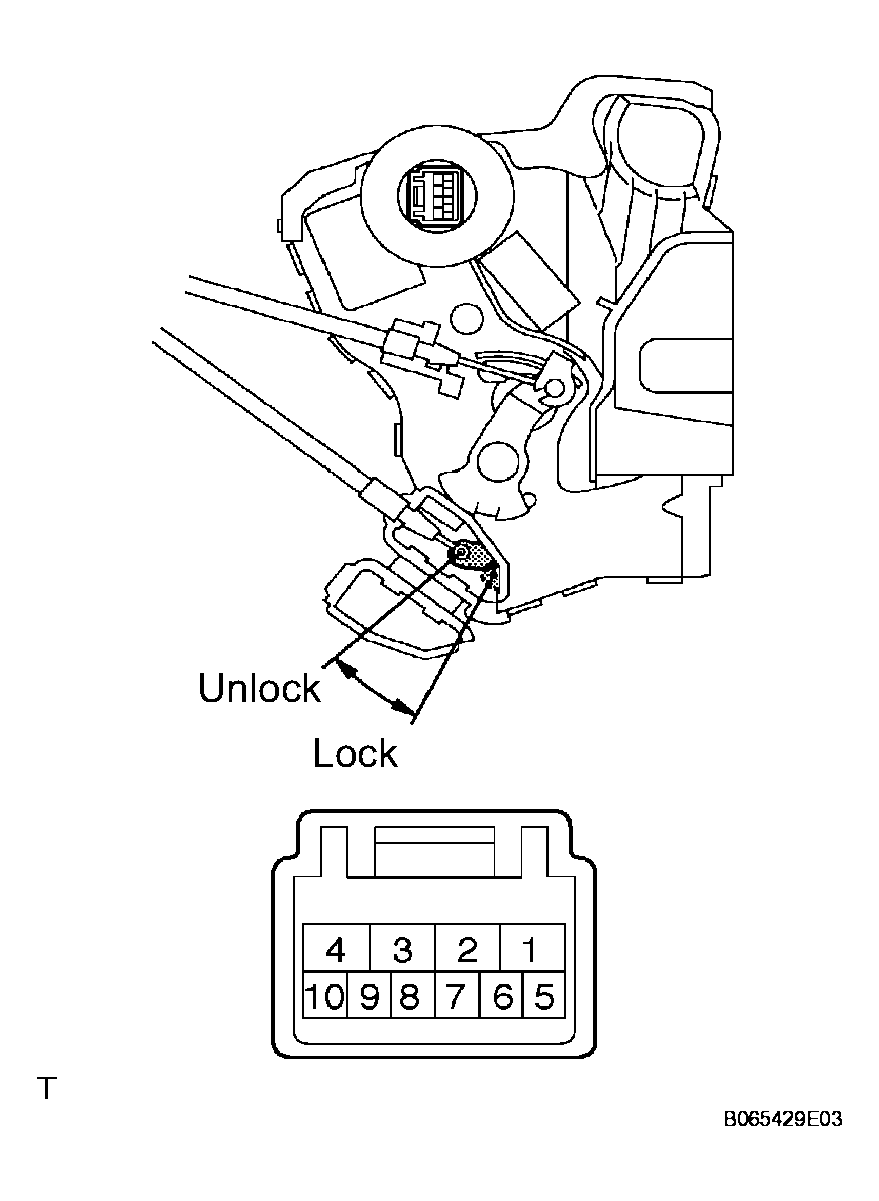

- INSPECT FRONT DOOR LOCK ASSEMBLY LH
- Apply battery voltage to the door lock and check operation of the motor.
OK
MEASUREMENT CONDITION AND SPECIFIED CONDITIONMeasurement Condition Specified Condition Battery positive (+) --> Terminal 4
Battery negative (-) --> terminal 1Lock Battery positive (+) --> Terminal 1
Battery negative (-) --> Terminal 4Unlock Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
HINT:
If the result is not as specified, replace the door lock assembly.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Door Lock Position Specified Condition 7 - 8 Lock 10 kΩ or higher 7 - 8 Unlock Below 1 Ω HINT:
If the result is not as specified, replace the door lock assembly.

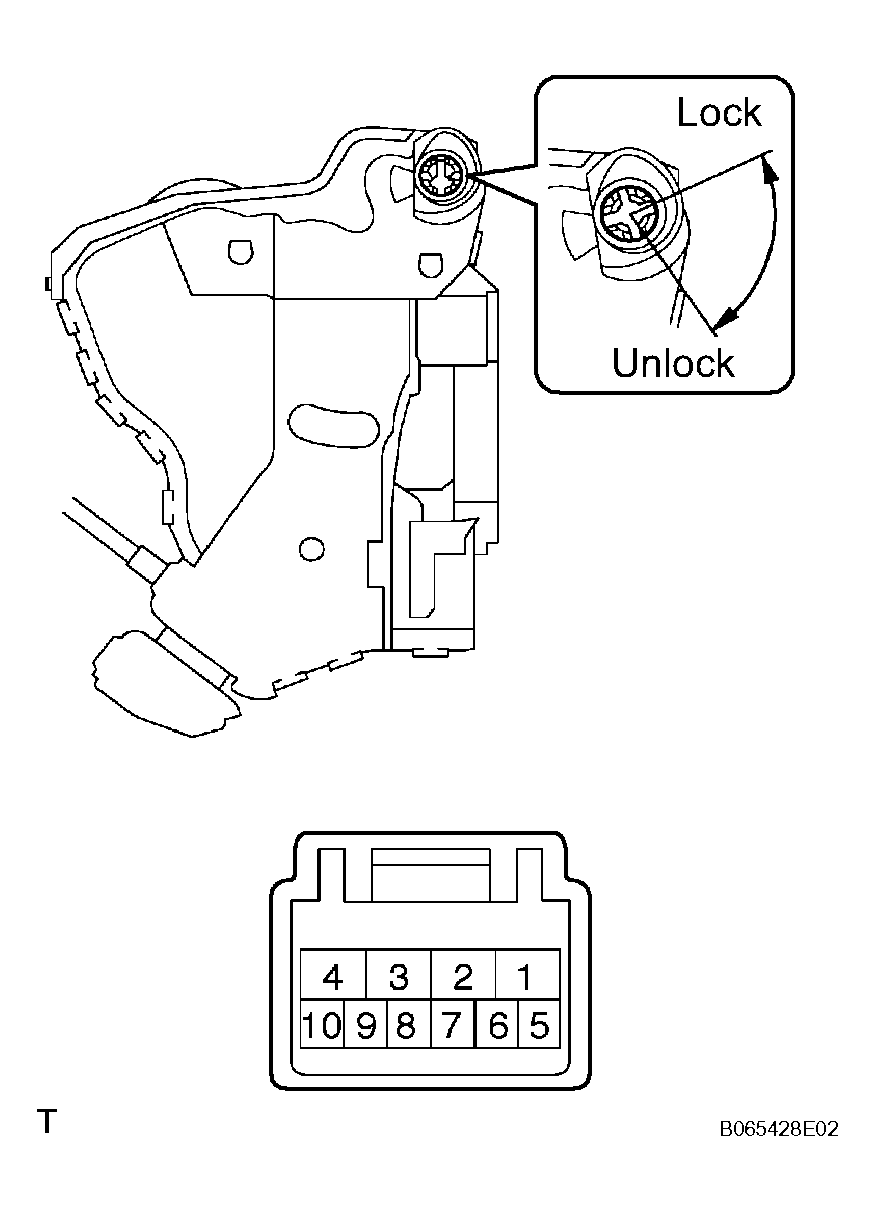

- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Condition Specified Condition 7 - 9 ON (Door lock set to LOCK) Below 1 Ω 7 - 9, 7 - 10 OFF (Free) 10 kΩ or higher 7 - 10 ON (Door lock set to UNLOCK) Below 1 Ω HINT:
If the result is not as specified, replace the door lock assembly.
- Apply battery voltage to the door lock and check operation of the motor.

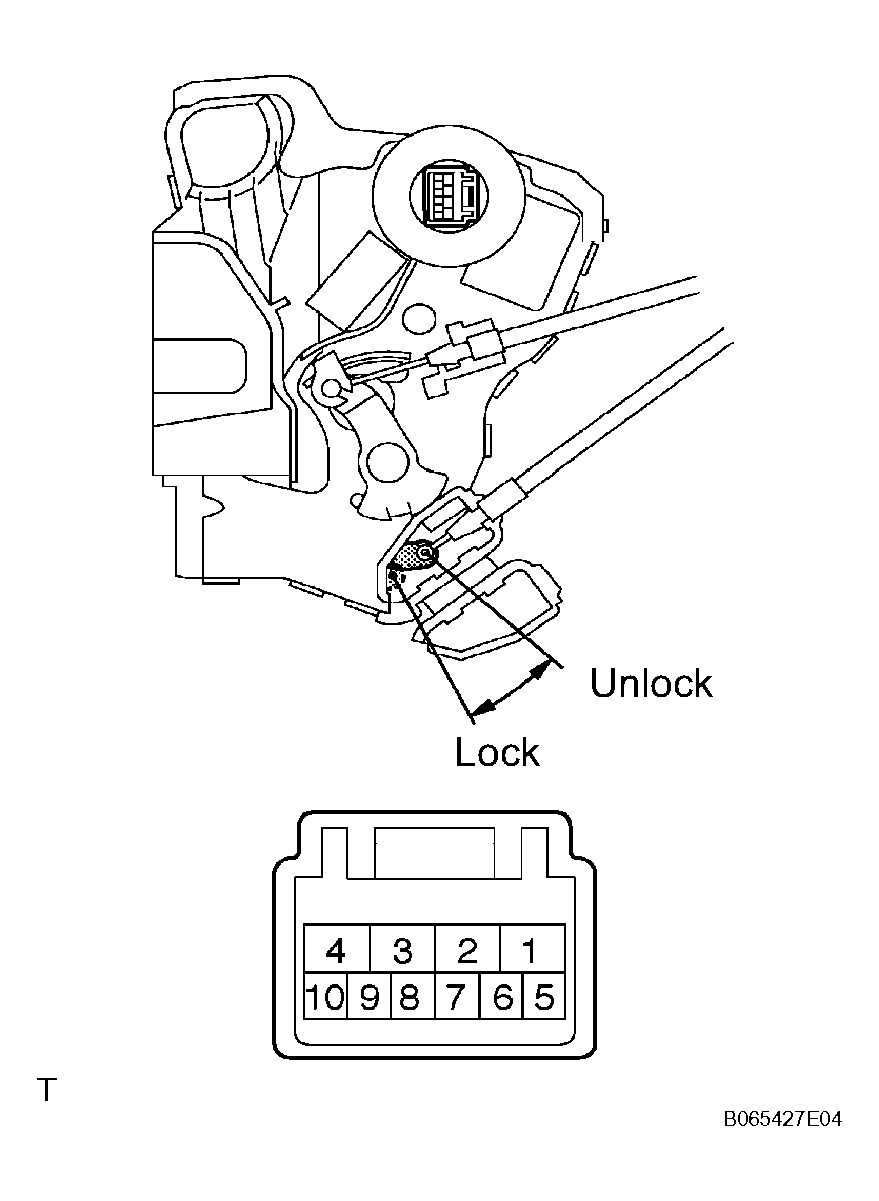

- INSPECT FRONT DOOR LOCK ASSEMBLY RH
- Apply battery voltage to the door lock and check operation of the motor.
OK
MEASUREMENT CONDITION AND SPECIFIED CONDITIONMeasurement Condition Specified Condition Battery positive (+) --> Terminal 4
Battery negative (-) --> Terminal 1Lock Battery positive (+) --> Terminal 1
Battery negative (-) --> Terminal 4Unlock HINT:
If the result is not as specified, replace the door lock assembly.
- Measure the resistance according to the value(s) in the table below.
Standard resistance
TESTER CONNECTION AND SPECIFIED CONDITIONTester Connection Door Lock Position Specified Condition 7 - 8 Lock 10 kΩ or higher 7 - 8 Unlock Below 1 Ω HINT:
If the result is not as specified, replace the door lock assembly.
- Apply battery voltage to the door lock and check operation of the motor.
