Remote Control Mirror without Memory: Notes

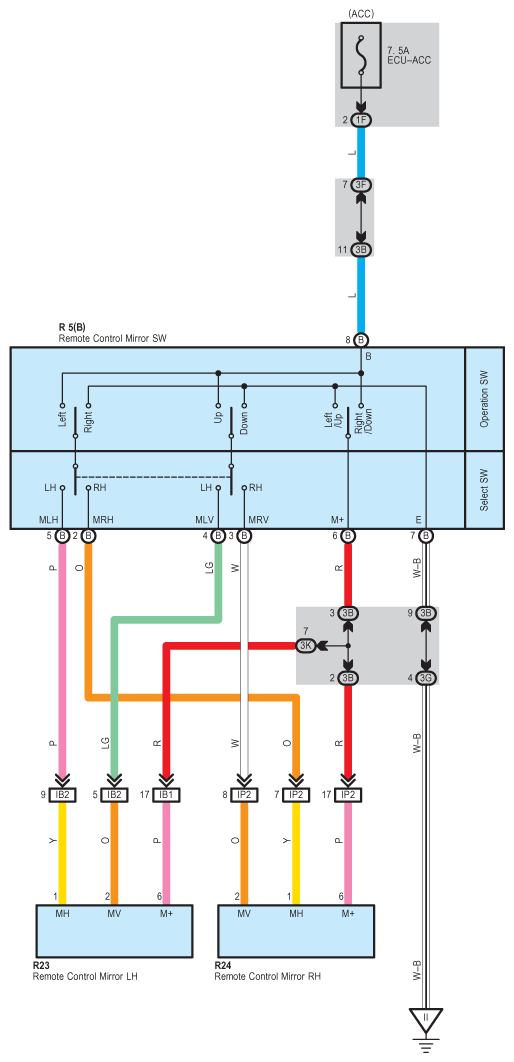

Fig 1: Remote Control Mirror Without Memory Wiring Diagram

G08914863

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
