Mirror Heater without Driving Position Memory: Notes

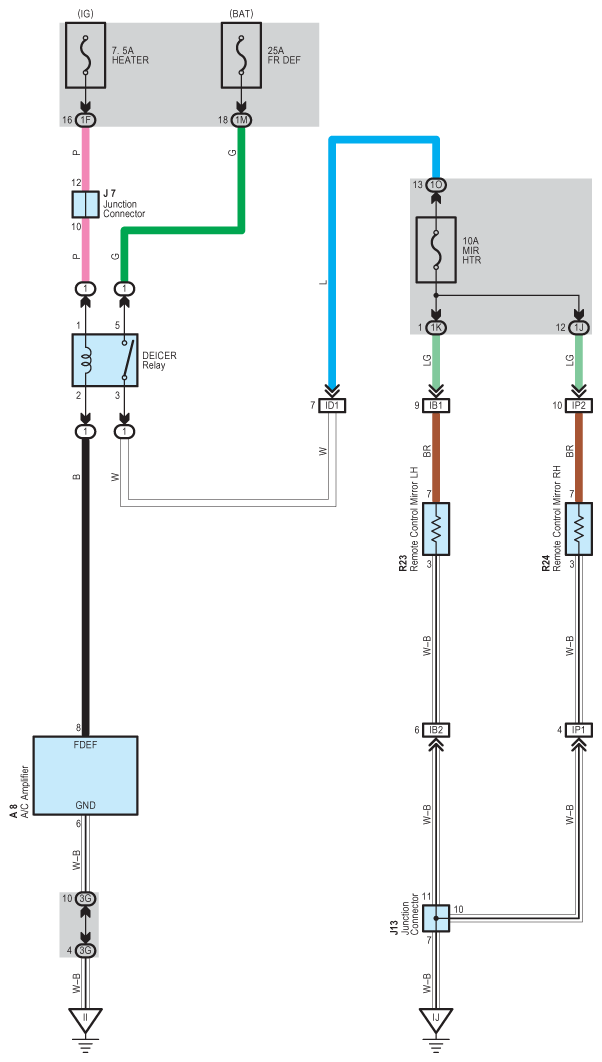

Fig 1: Mirror Heater Without Driving Position Memory Wiring Diagram

G08914864

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
