Cigarette Lighter: Notes

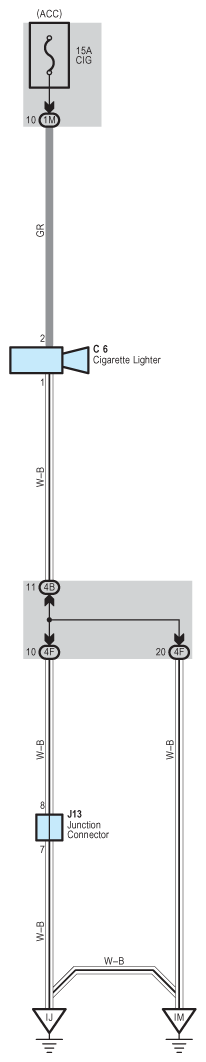

Fig 1: Cigarette Lighter Wiring Diagram
G08914880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
