Home >> Lexus >> 2006 >> RX 330 FWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission (U151E) >> Differential Case >> Components

Differential Case: Components

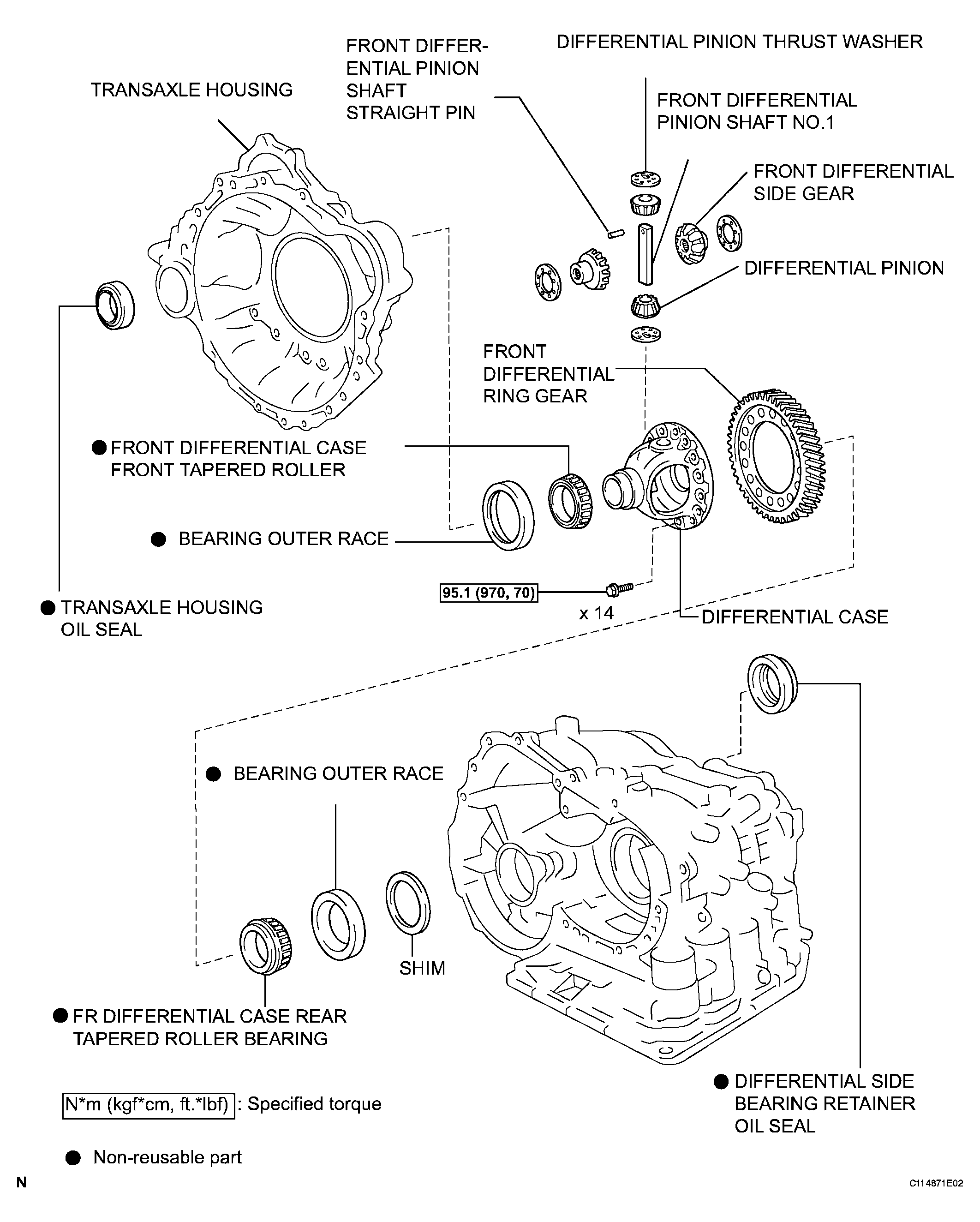

Fig 1: Differential Case Replacement Components With Torque Specifications

G04088988

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
