Pattern Select Switch Circuit: Wiring Diagram

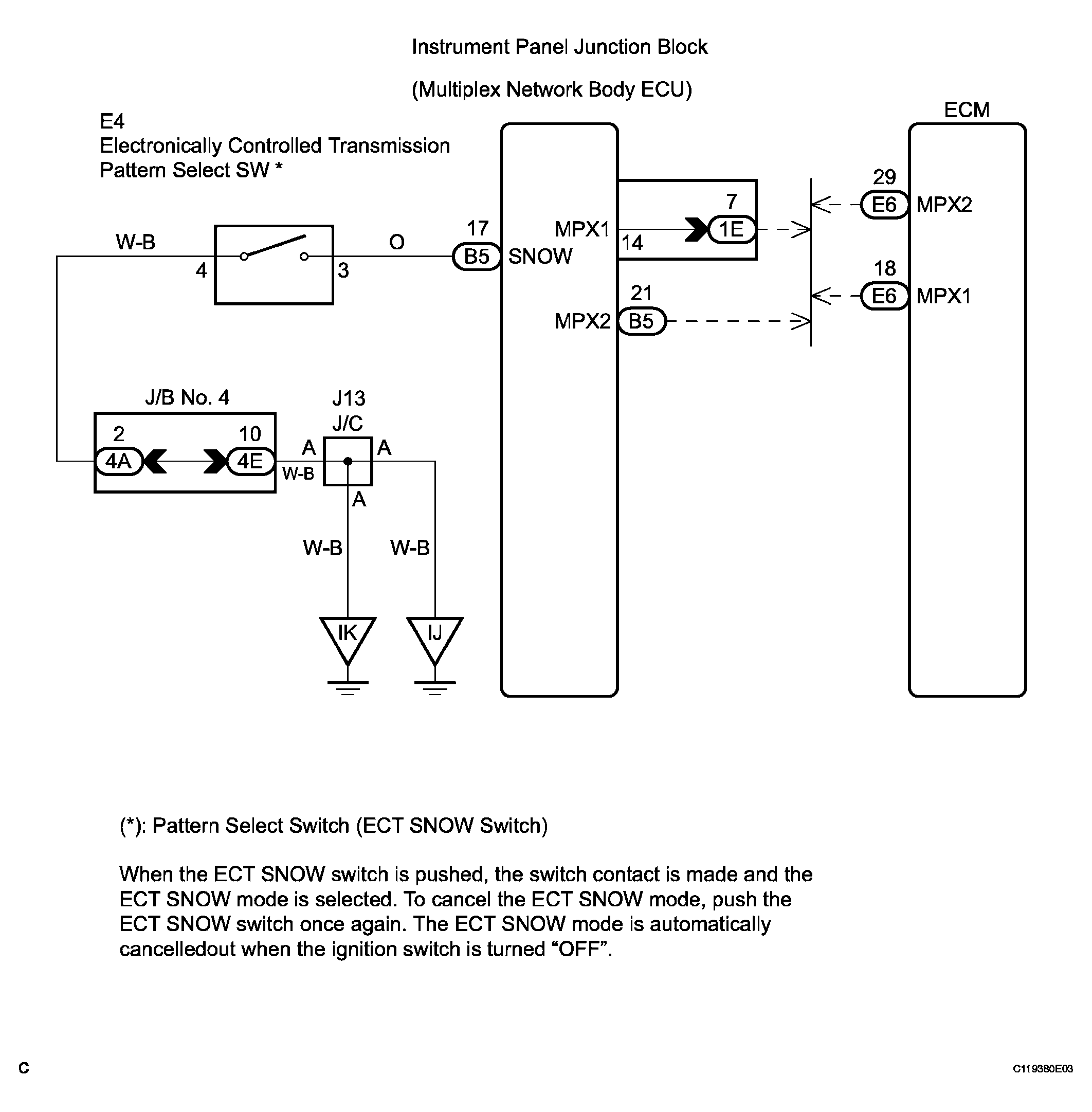

Fig 1: Pattern Select Switch Circuit

G04088462

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
