Automatic Transaxle Assembly: Components

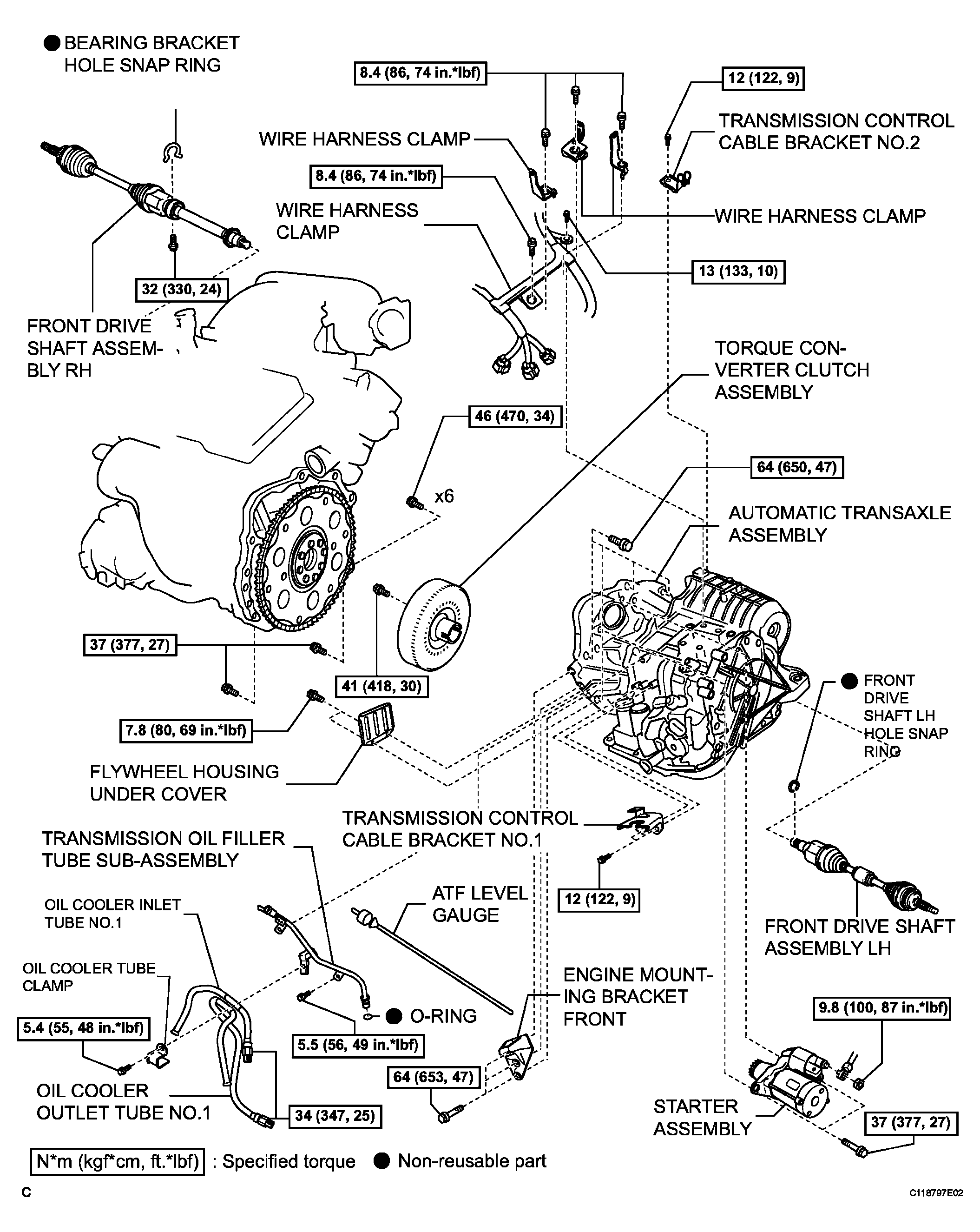

Fig 1: Automatic Transaxle Assembly Replacement Components With Torque Specifications

G04088558

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
