Upper Control Arm ASSY: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR WHEEL
DISCONNECT HEIGHT CONTROL SENSOR LINK SUB-ASSY REAR (W/AIR SUSPENSION) (See REPLACEMENT )

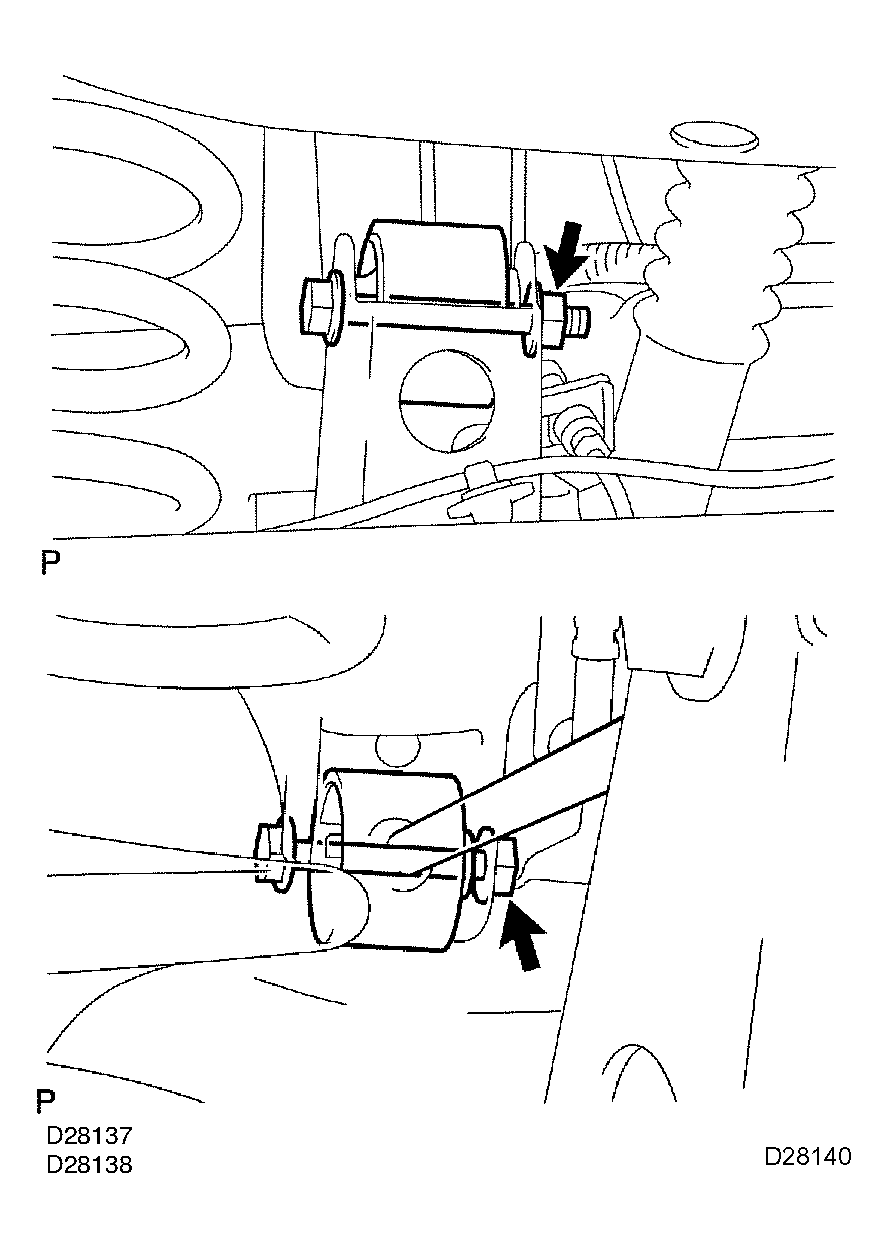

REMOVE UPPER CONTROL ARM ASSY
1. Remove the nut, washer and bolt from rear axle housing.
  HINT:

  While fixing the bolt, turn and remove the nut.

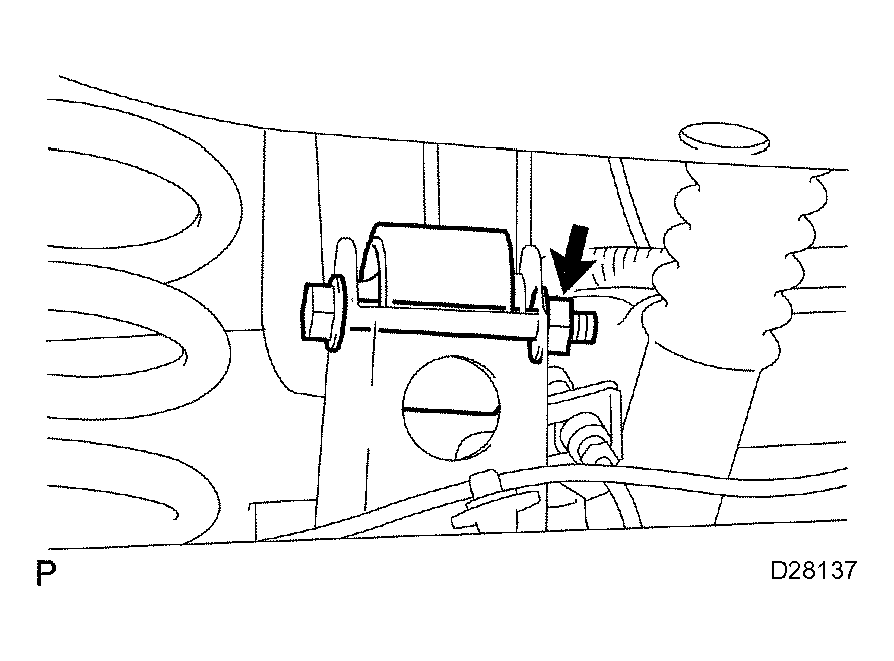

  Fig 1: Removing Nut, Washer & Bolt From Rear Axle Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the nut, washer and bolt with the upper control arm assy.
  HINT:

  While fixing the bolt, turn and remove the nut.

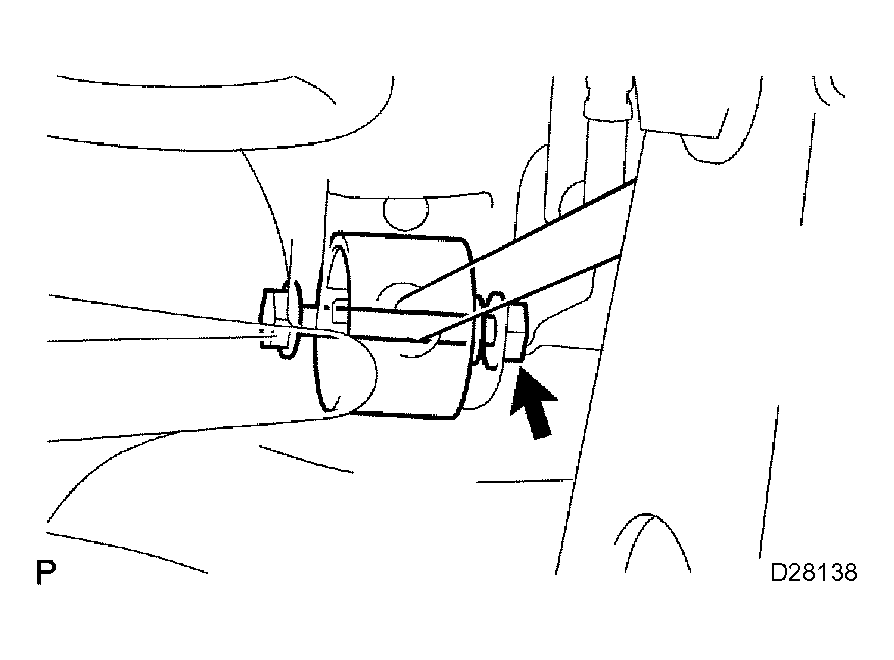

  Fig 2: Removing Nut, Washer & Bolt With Upper Control Arm Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL UPPER CONTROL ARM ASSY
1. Install the upper control arm assy, temporarily tighten the nut, washer and bolt.
  HINT:

  In the case of the air suspensions, install them by referring to Fig 3.

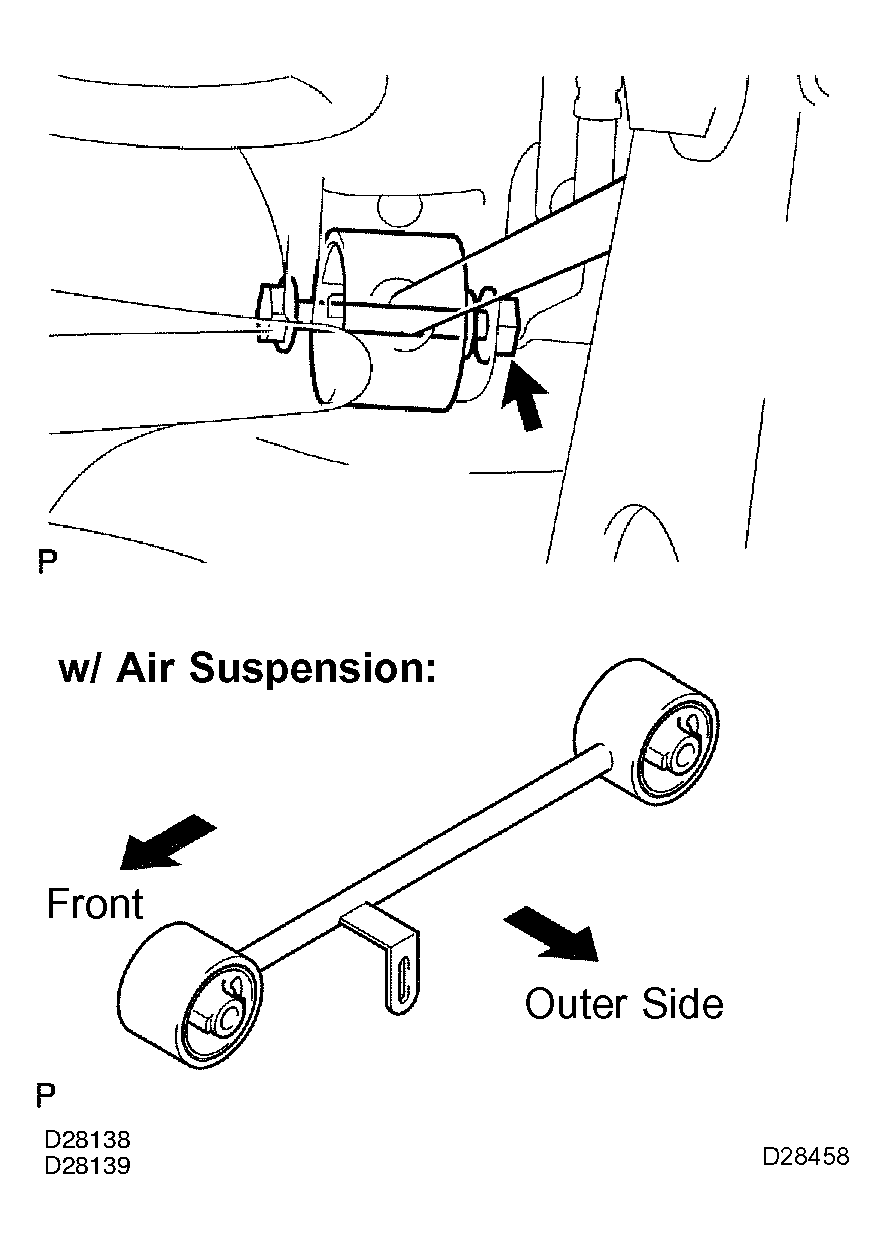

  Fig 3: Installing Upper Control Arm Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear axle housing, temporarily tighten the nut, washer and bolt.

  Fig 4: Installing Rear Axle Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT HEIGHT CONTROL SENSOR LINK SUB-ASSY REAR (W/AIR SUSPENSION) (See REPLACEMENT )
INSTALL REAR WHEEL
Torque: 112 N.m (1,137 kgf.cm, 83 ft.lbf)
STABILIZE SUSPENSION (See REPLACEMENT )
FULLY TIGHTEN UPPER CONTROL ARM ASSY
1. Fully tighten the 2 nuts.
  Torque: 80 N.m (816 kgf.cm, 59 ft.lbf)

  HINT:

  While fixing the bolt, turn and install the nut.

  Fig 5: Tightening Tighten Upper Control Arm Assy Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
