Upper Control Arm ASSY: Components

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

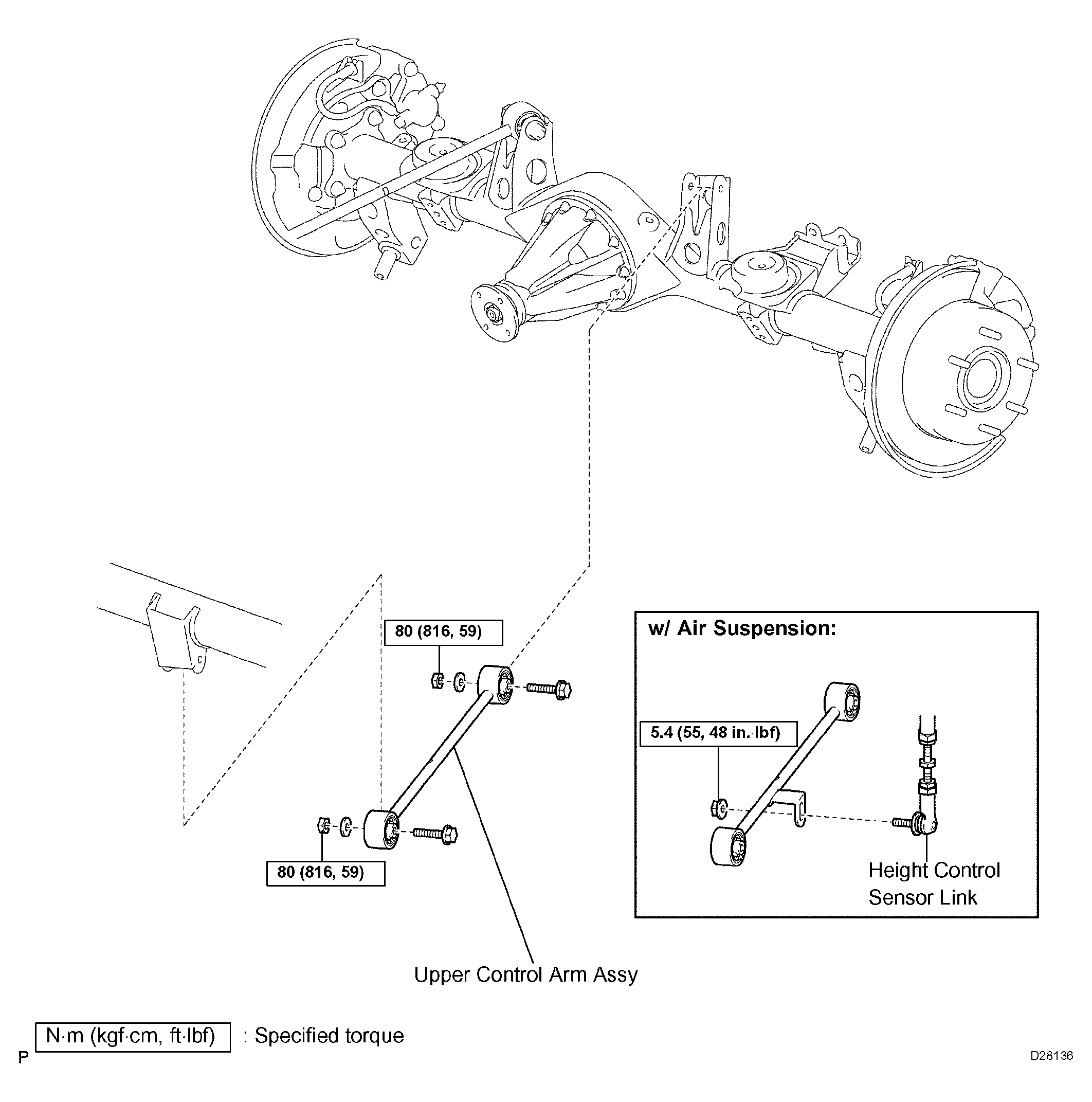

Fig 1: Identifying Upper Control Arm Assy Components
G04338100Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
