Rear Lateral Control Rod ASSY: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR LATERAL CONTROL ROD ASSY
1. Remove the bolt.

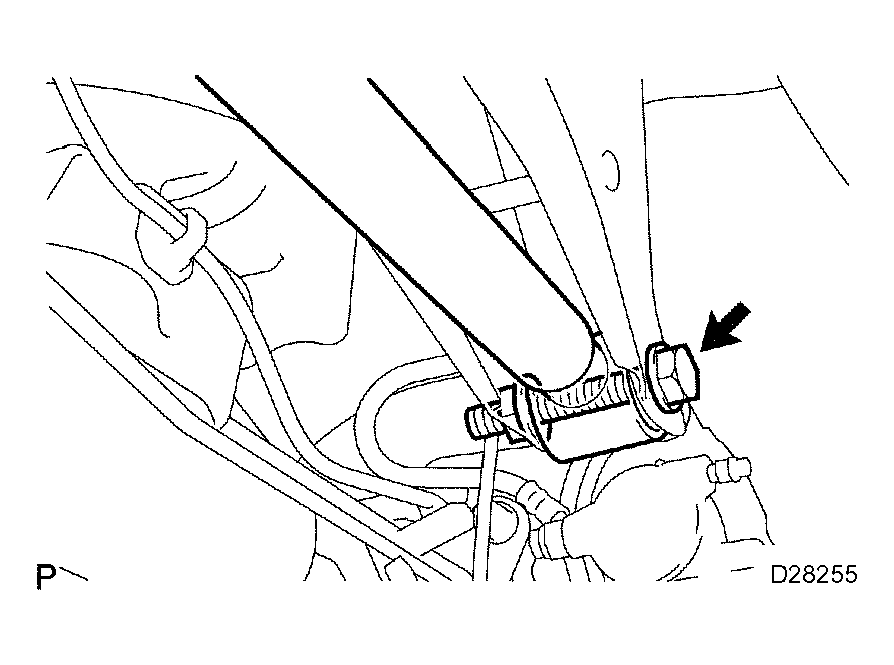

  Fig 1: Removing Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the bolt, nut and lateral control rod assy.
  HINT:

  While fixing the nut, turn and remove the bolt.

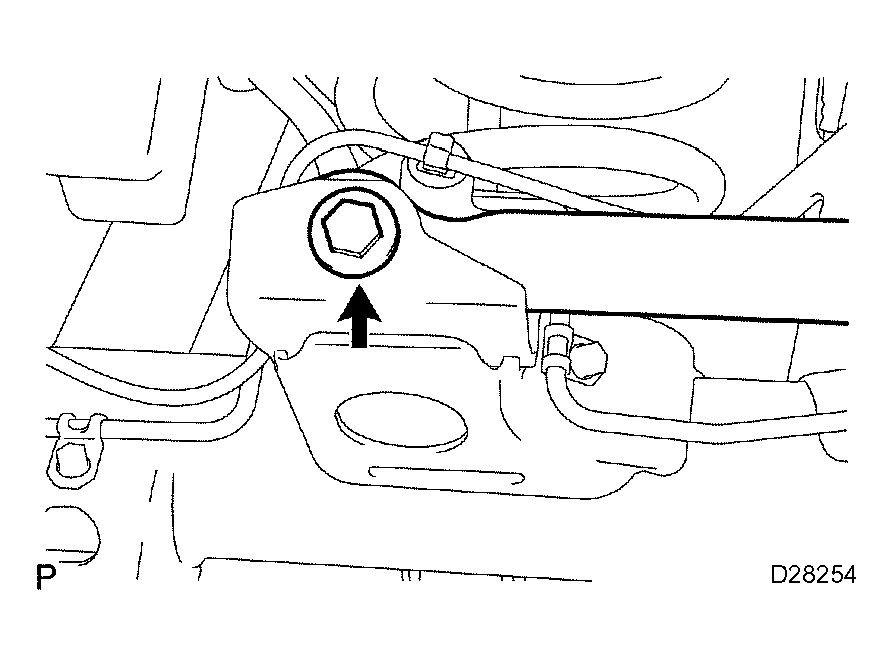

  Fig 2: Removing Bolt, Nut & Lateral Control Rod Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR LATERAL CONTROL ROD ASSY
1. Install the lateral control rod assy with the bolt.

  Fig 3: Installing Lateral Control Rod Assy With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the bolt and the nut.

  Fig 4: Installing Bolt & Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
STABILIZE SUSPENSION (See REPLACEMENT )
FULLY TIGHTEN REAR LATERAL CONTROL ROD ASSY
1. Fully tighten the 2 bolts.
  Torque: 130 N.m (1,326 kgf.cm, 96 ft.lbf)

  HINT:

  While fixing the nut, turn and install the bolt.

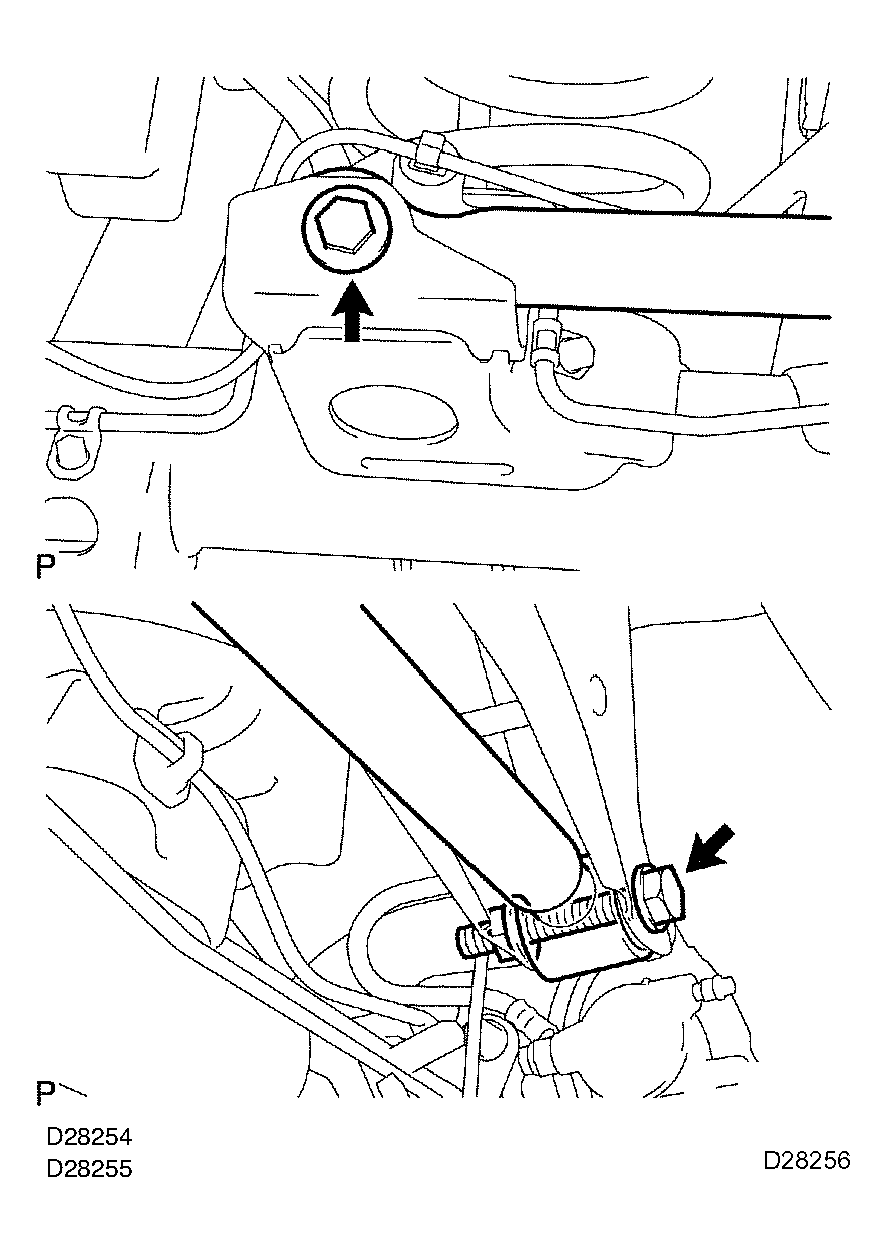

  Fig 5: Tightening Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
