Lower Control Arm ASSY LH: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR WHEEL
SEPARATE PARKING BRAKE CABLE ASSY NO.3
1. Remove the bolt, separate the parking brake cable assy No.3.
REMOVE LOWER CONTROL ARM ASSY LH
1. Remove the nut, washer and bolt from rear axle housing.
  HINT:

  While fixing the nut, turn and remove the bolt.

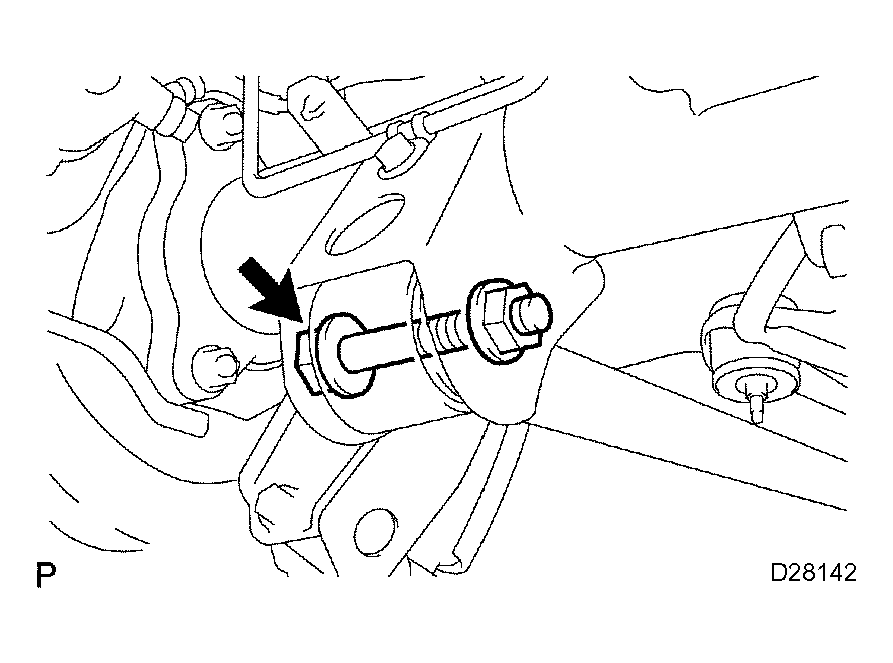

  Fig 1: Removing Nut, Washer & Bolt From Rear Axle Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the nut, washer, bolt and the lower control arm assy.
  HINT:

  While fixing the nut, turn and remove the bolt.

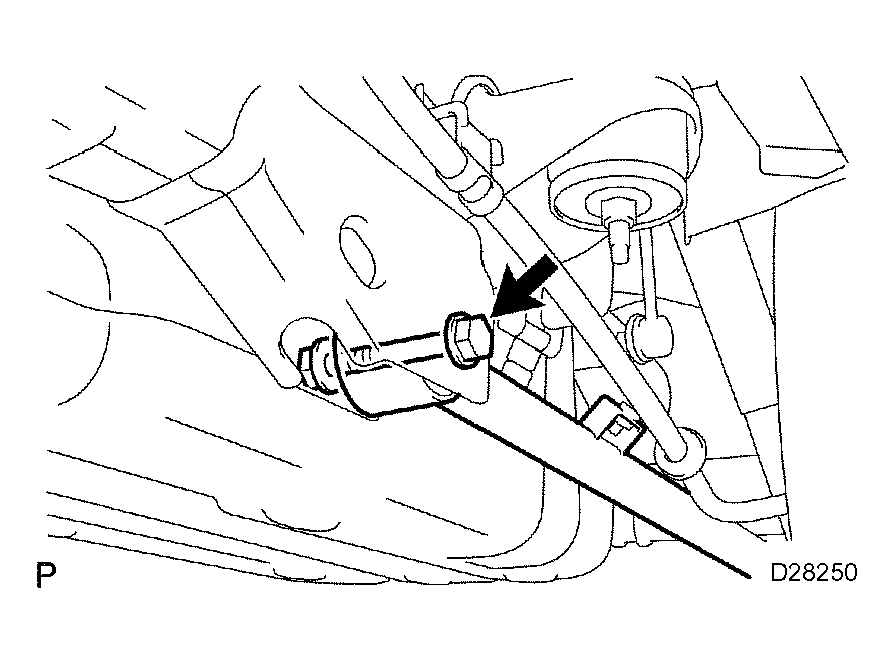

  Fig 2: Removing Nut, Washer, Bolt & Lower Control Arm Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL LOWER CONTROL ARM ASSY LH
1. Install the lower control arm assy, temporarily tighten the nut, washer and bolt.

  Fig 3: Installing Lower Control Arm Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

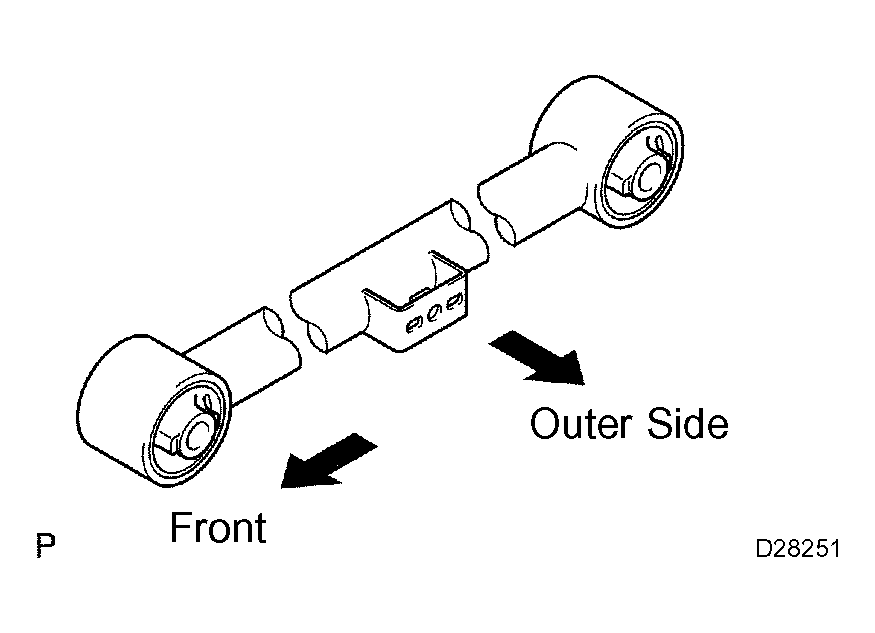

  Fig 4: Exploded View Of Lower Control Arm Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the rear axle housing, temporarily tighten the bolt, washer and nut.

  Fig 5: Installing Rear Axle Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT PARKING BRAKE CABLE ASSY NO.3
1. Connect the parking brake cable assy No.3 with the bolt.
  Torque: 13 N.m (127 kgf.cm, 9 ft.lbf)
INSTALL REAR WHEEL
Torque: 112 N.m (1,137 kgf.cm, 83 ft.lbf)
STABILIZE SUSPENSION (See REPLACEMENT )
FULLY TIGHTEN LOWER CONTROL ARM ASSY LH
1. Fully tighten the 2 bolts.
  Torque: 130 N.m (1,326 kgf.cm, 96 ft.lbf)

  HINT:

  While fixing the nut, turn and remove the bolt.

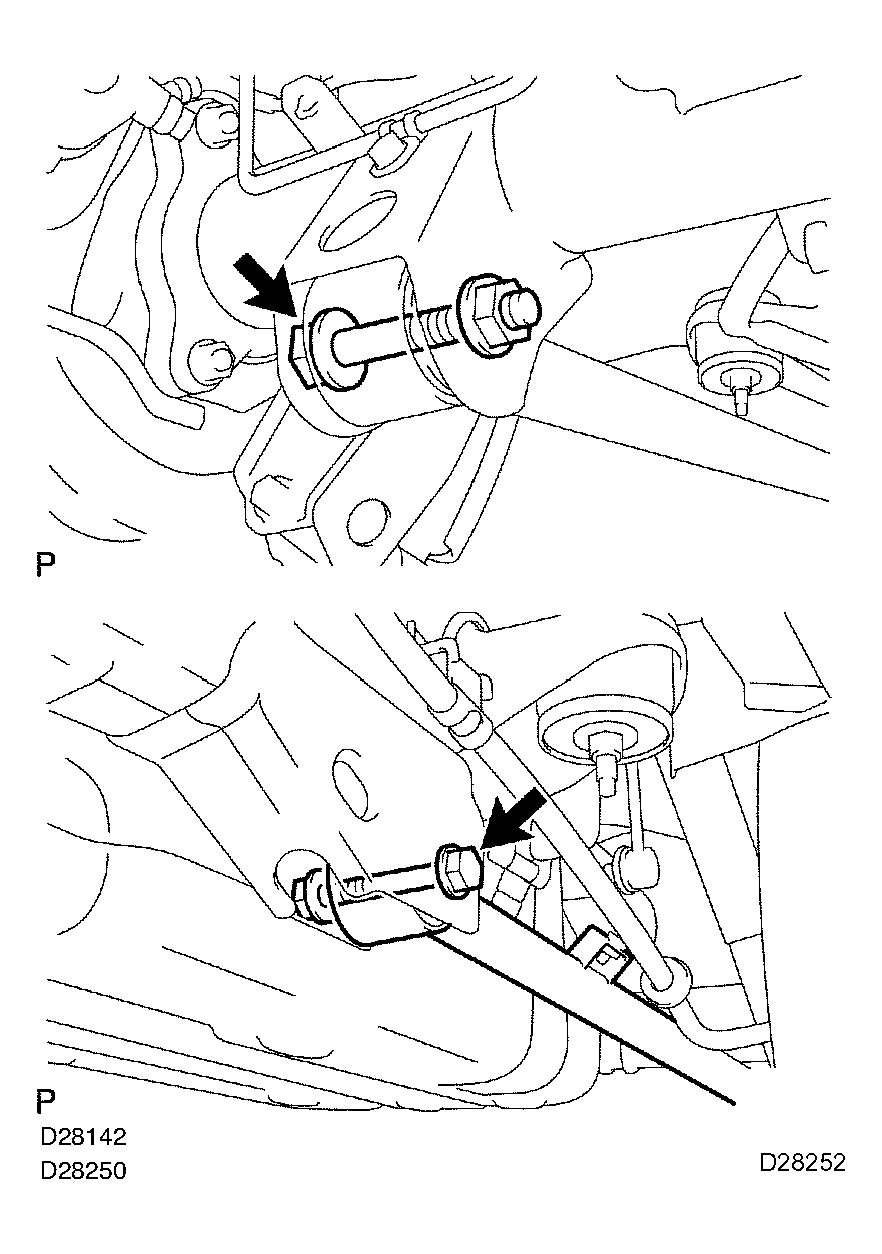

  Fig 6: Tightening Nut & Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
