Lower Control Arm ASSY LH: Components

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

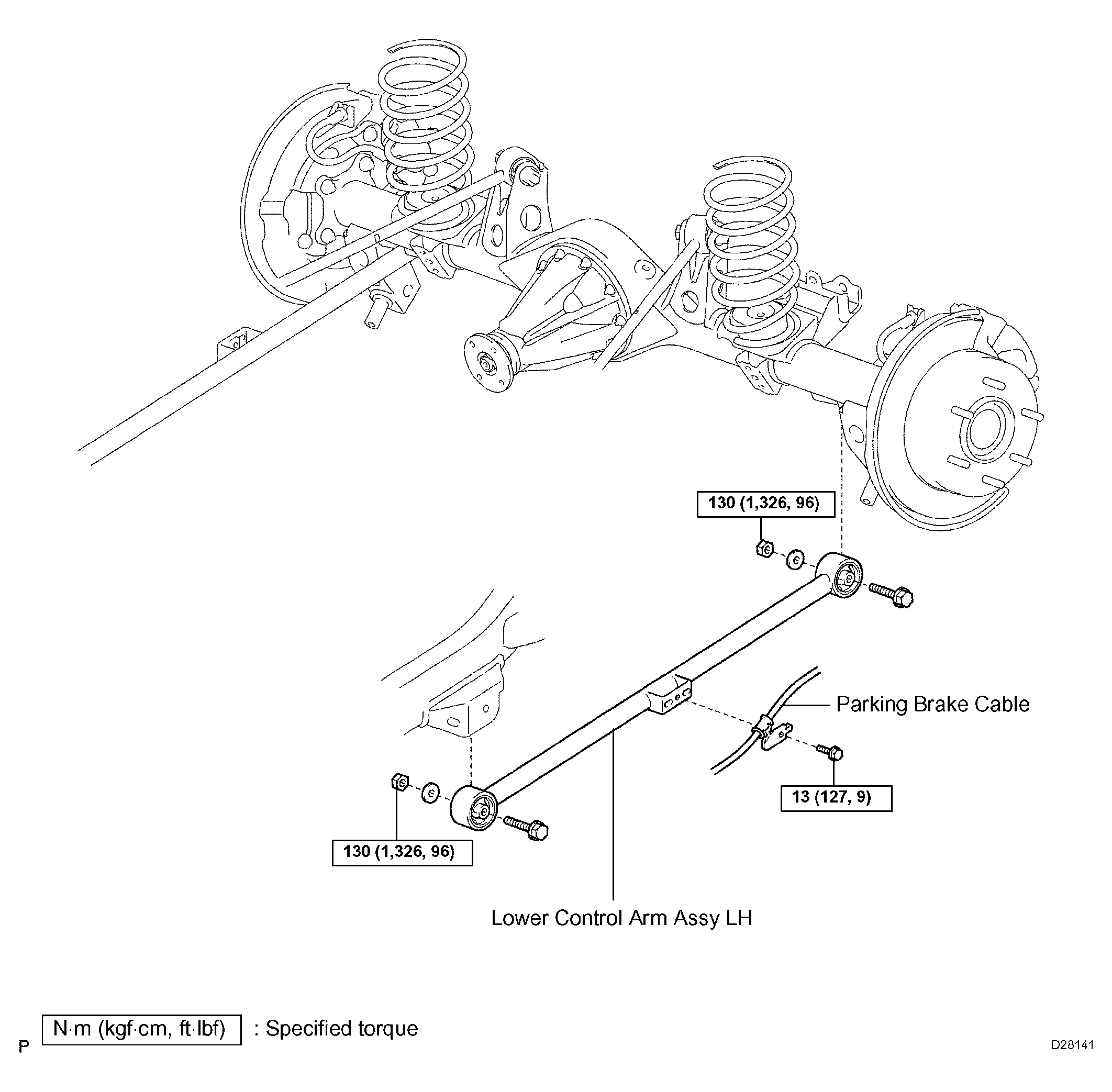

Fig 1: Identifying Lower Control Arm Assy LH Components
G04338106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
