Front Suspension System: Repair

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

This is the repair procedure for vehicle pull.

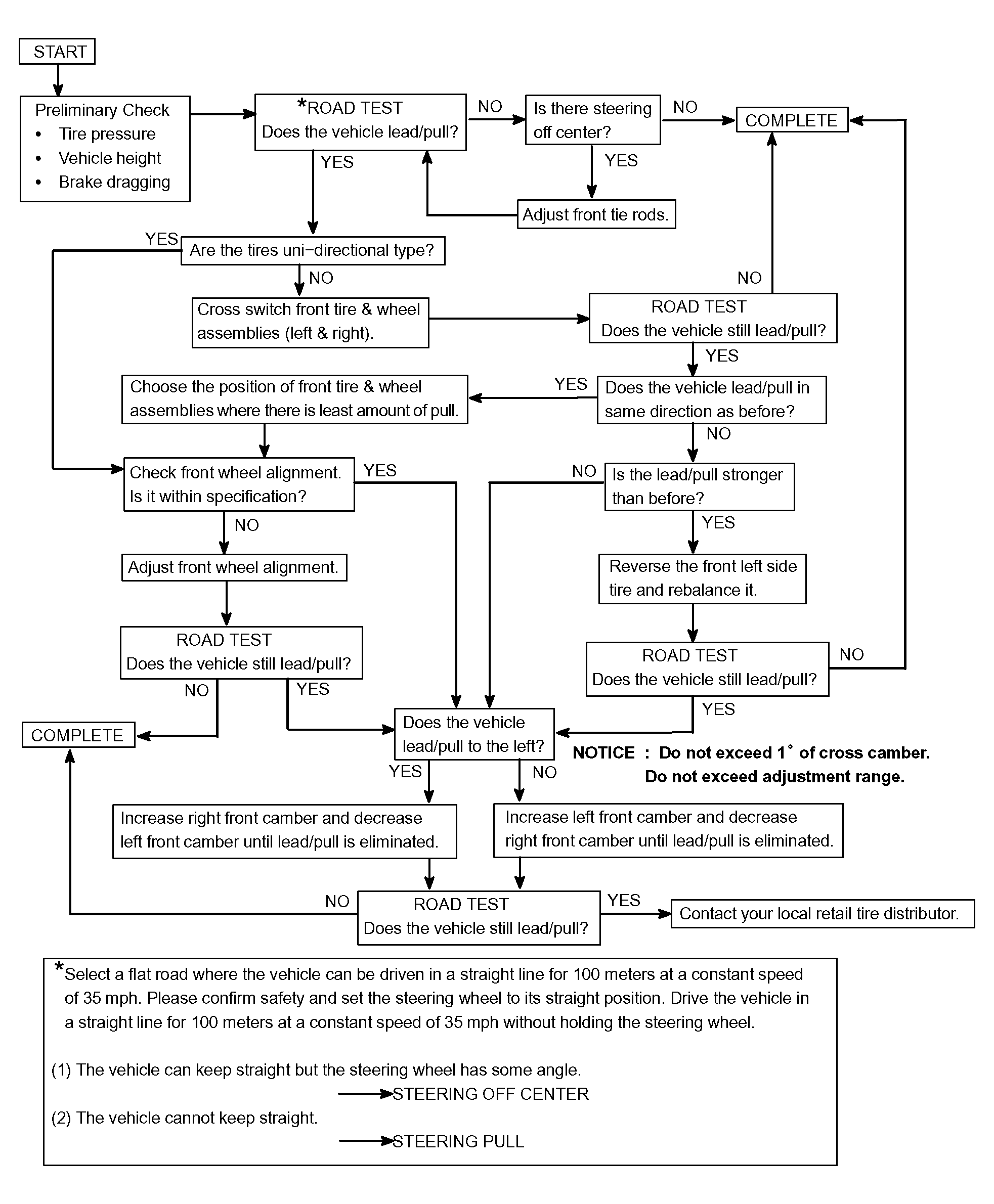

Fig 1: Repair Flow Chart
G04337992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
