Front Shock Absorber With Coil Spring: Disposal

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Dispose the RH side by the same procedures with the LH side.

DISPOSE OF SHOCK ABSORBER ASSY FRONT LH (W/O REAS)
1. Fully extend the shock absorber piston rod, and fix it at a tilt in a vise or similar tool.

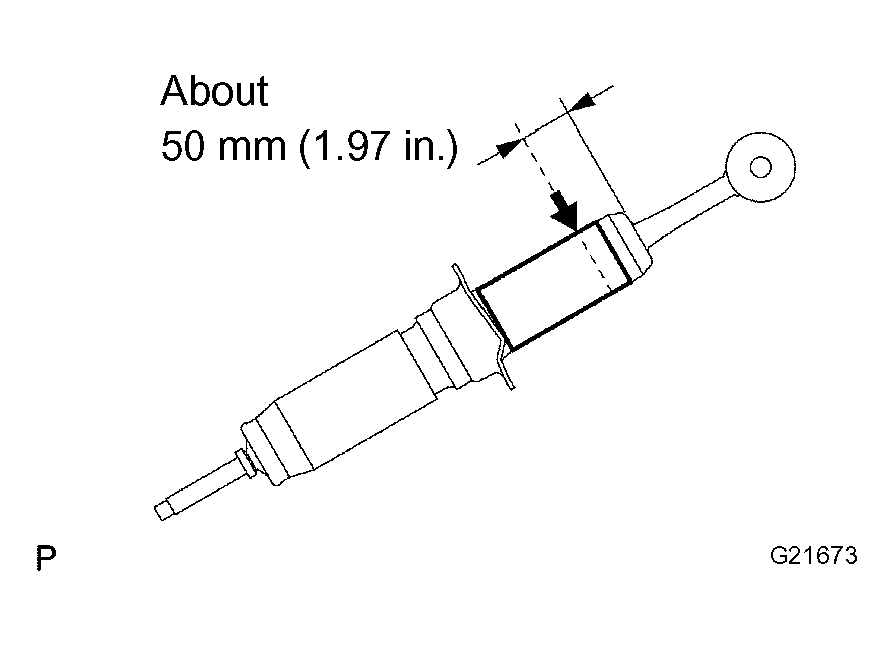

2. Using a drill or similar tool, slowly make a hole at approx. 5 cm from the top end of the shock absorber, and discharge the gas inside of it.

  Fig 1: Identifying Shock Absorber Piston Rod Dimension
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  CAUTION:
  - The gas is colorless, odorless and harmless.
  - Since the discharged gas may cause chips to fly off, cover the drill with a shop rag when making a hole.
DISPOSE OF SHOCK ABSORBER ASSY FRONT LH (W/ REAS)

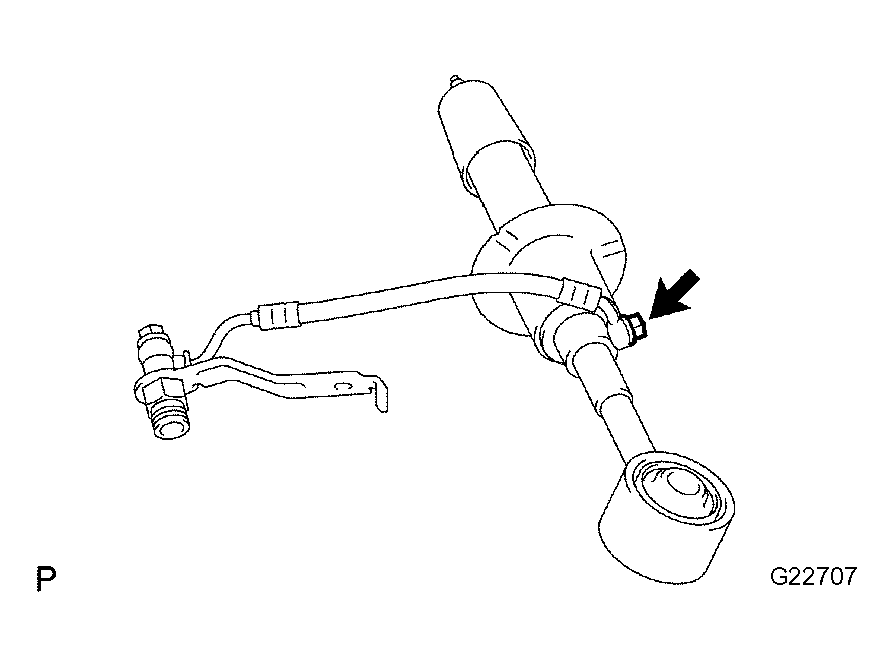

1. Before the disposal, loosen the nut slowly to breed out the oil and to lower the pressure inside the absorber.
  NOTE: Never loosen the nut of the eye union except the time of disposal.

  Fig 2: Loosening Nut Of Eye Union
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
