Television Display ASSY: Replacement

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

Installation is in the reverse order of removal.

REMOVE DOME LIGHT LENS LH
1. Disengage the 4 claws and remove the dome light lens LH.
HINT:

Tape the screwdriver tip before use.

Fig 1: Removing Claws & Dome Light Lens LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOME LIGHT LENS RH
1. Disengage the 4 claws and remove the dome light lens RH.
HINT:

Tape the screwdriver tip before use.

Fig 2: Removing Claws & Dome Light Lens RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOME LIGHT ASSY
1. Remove the 2 screws.

  Fig 3: Removing Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Disengage the 4 clips.
3. Disconnect the connector and remove the dome light assy.

  Fig 4: Removing Dome Light Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TELEVISION DISPLAY ASSY
1. Disconnect the connector.
2. Remove the 4 bolts.
3. Disengage the 2 clips and remove the television display assy.

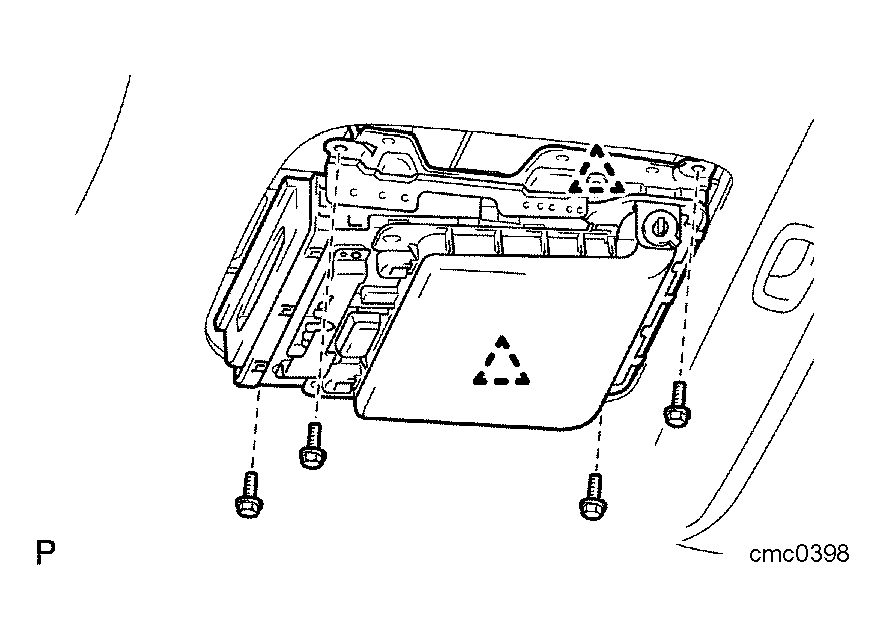

  Fig 5: Removing Clips & Television Display Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
