Rear Speaker ASSY No.2: Replacement

HINT:

See COMPONENTS

1. REMOVE TONNEAU COVER RETRACTOR SUB-ASSY
2. REMOVE BACK DOOR WEATHERSTRIP (See  REPLACEMENT  )
3. REMOVE DECK BOARD SUB-ASSY (See  REPLACEMENT  )
4. REMOVE DECK BOARD ASSY (See  REPLACEMENT  )
5. REMOVE REAR FLOOR MAT SUPPORT PLATE REAR (See  REPLACEMENT  )
6. REMOVE DECK FLOOR BOX LH (See  REPLACEMENT  )
7. REMOVE DECK TRIM COVER REAR (See  REPLACEMENT  )
8. REMOVE DECK TRIM SIDE BOARD UPR LH (See  REPLACEMENT  )
9. REMOVE SIDE TRIM BOX ASSY LH (See  REPLACEMENT  )
10. REMOVE REAR DOOR SCUFF PLATE LH (See  REPLACEMENT  )
11. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH (See  REPLACEMENT  )
12. REMOVE DECK TRIM SIDE PANEL ASSY LH (See  REPLACEMENT  )
13. REMOVE ROOF SIDE GARNISH ASSY INNER LH (See  REPLACEMENT  )
14. REMOVE REAR SPEAKER ASSY NO.2
    1. Disconnect the connector.
    2. Remove the 2 bolts and rear speaker assy No.2.

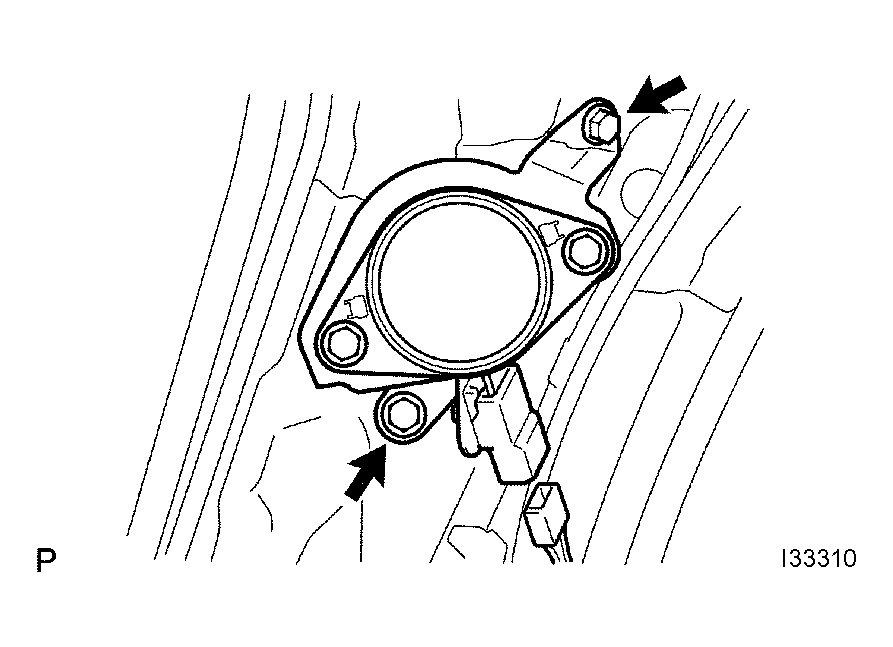

       Fig 1: Removing Bolts & Rear Speaker Assy No. 2

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
