On-Vehicle Inspection

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

WASHER MOTOR
1. Operation Check
  1. Pour the washer fluid into the washer jar with the washer motor and the pump installed to the washer jar assy.
  2. Connect the battery (+) to terminal 1 of the washer motor and the pump, the battery (-) to terminal 2 of the washer motor and the pump. Check that the water comes out from the washer jar.

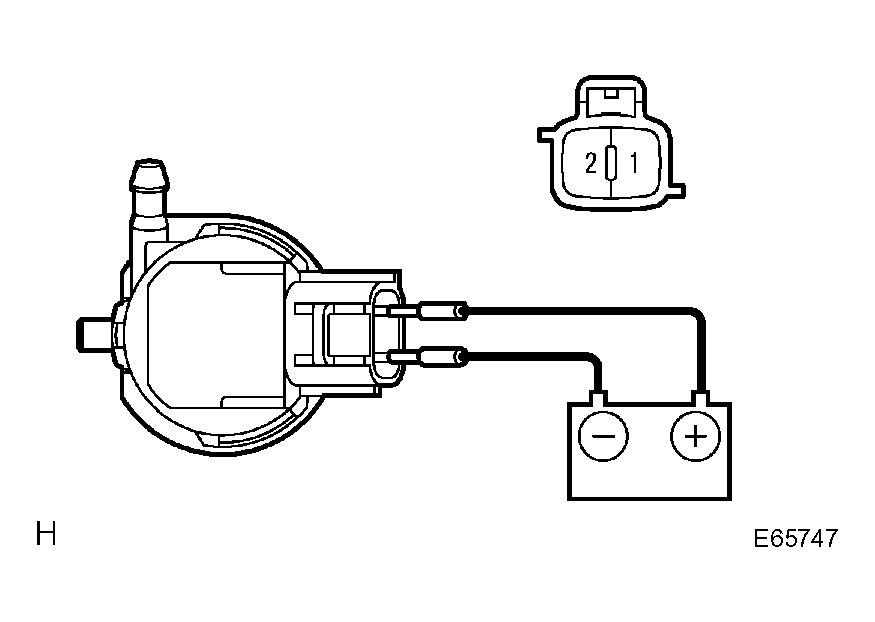

    Fig 1: Operation Check Of Washer Motor
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
