Transfer ASSY (VF4AM): Components

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

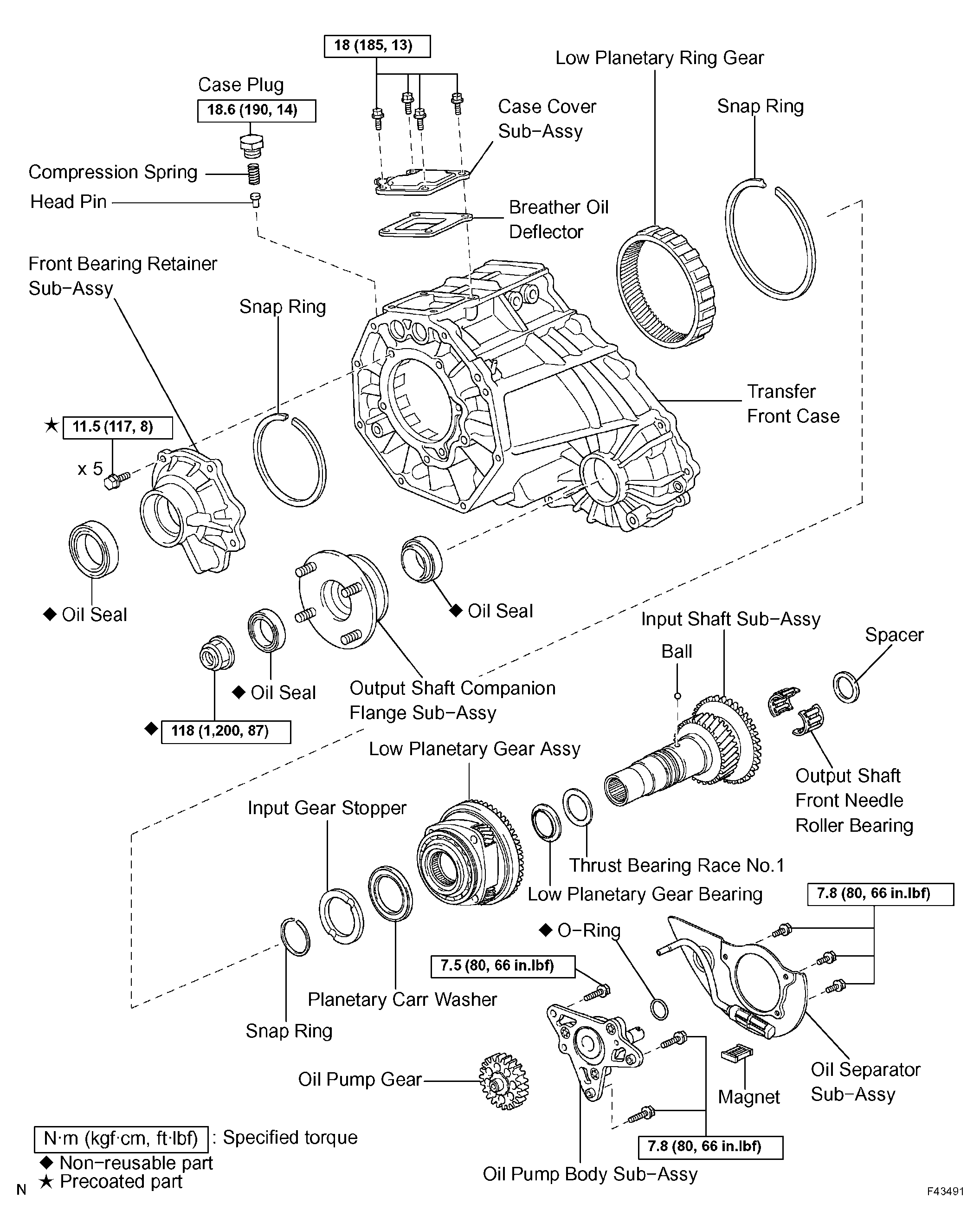

Fig 1: Exploded View Of Transfer Assy Components (VF4AM) (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

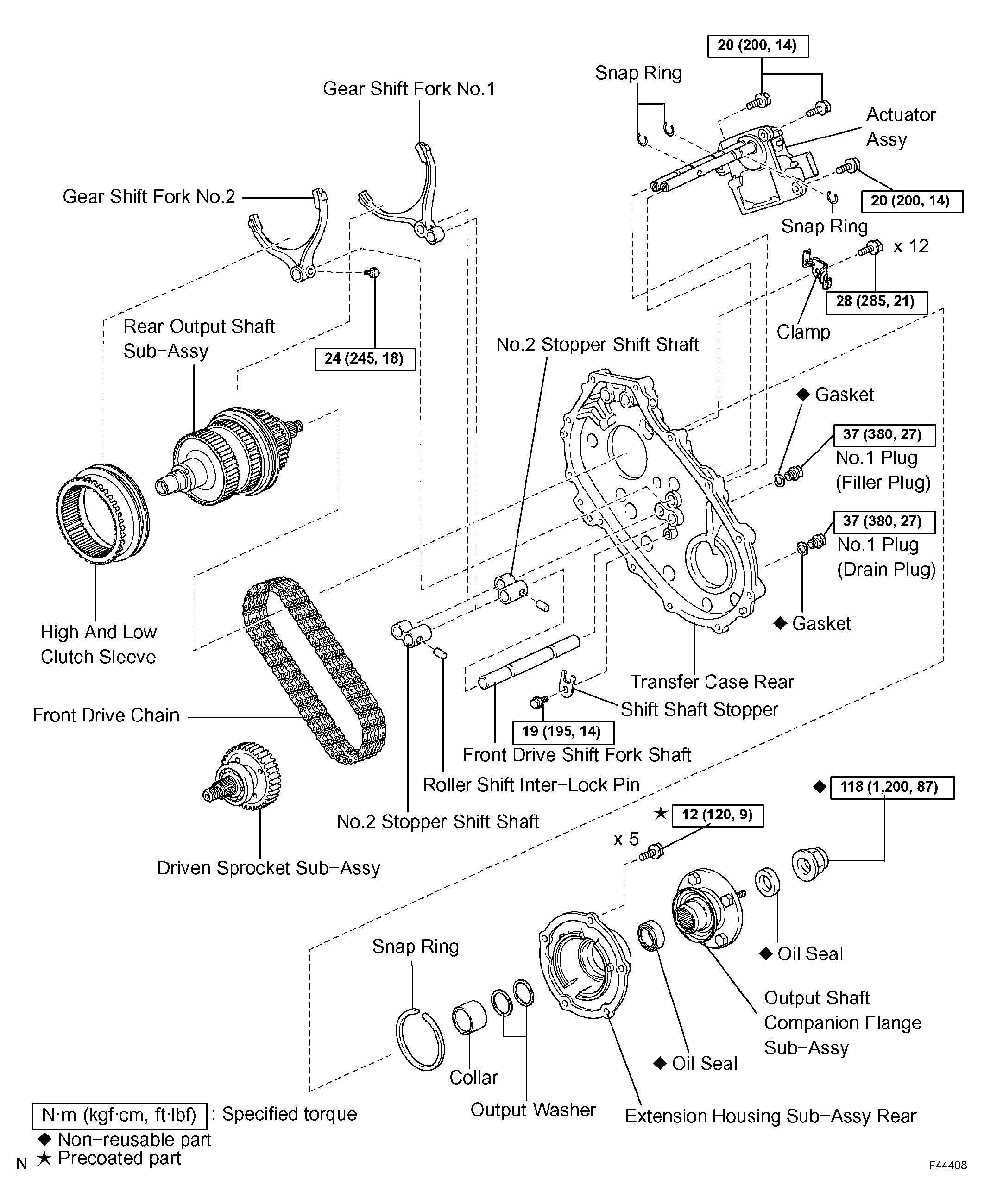

Fig 2: Exploded View Of Transfer Assy Components (VF4AM) (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

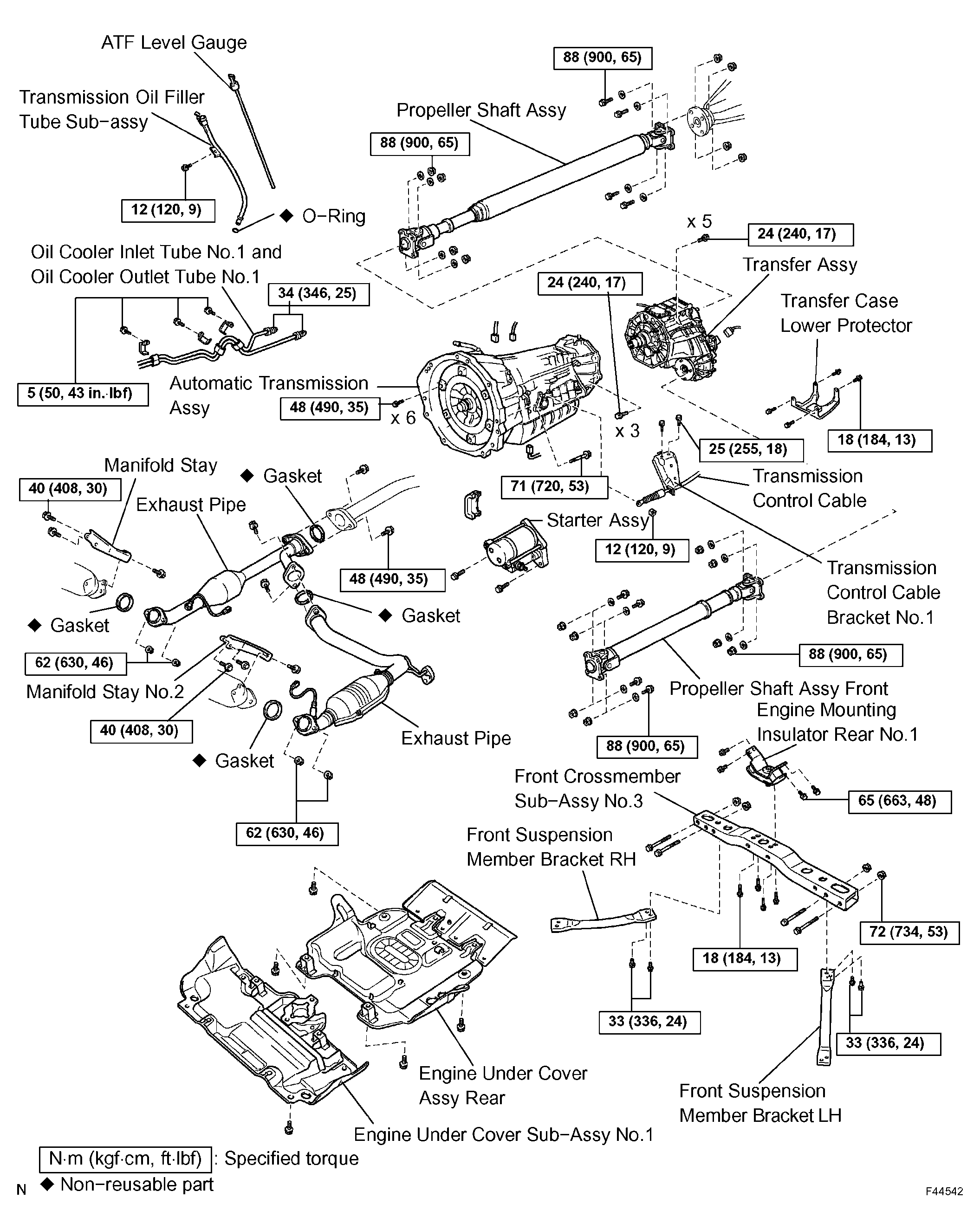

Fig 3: Exploded View Of Transfer Assy Components (VF4AM) (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

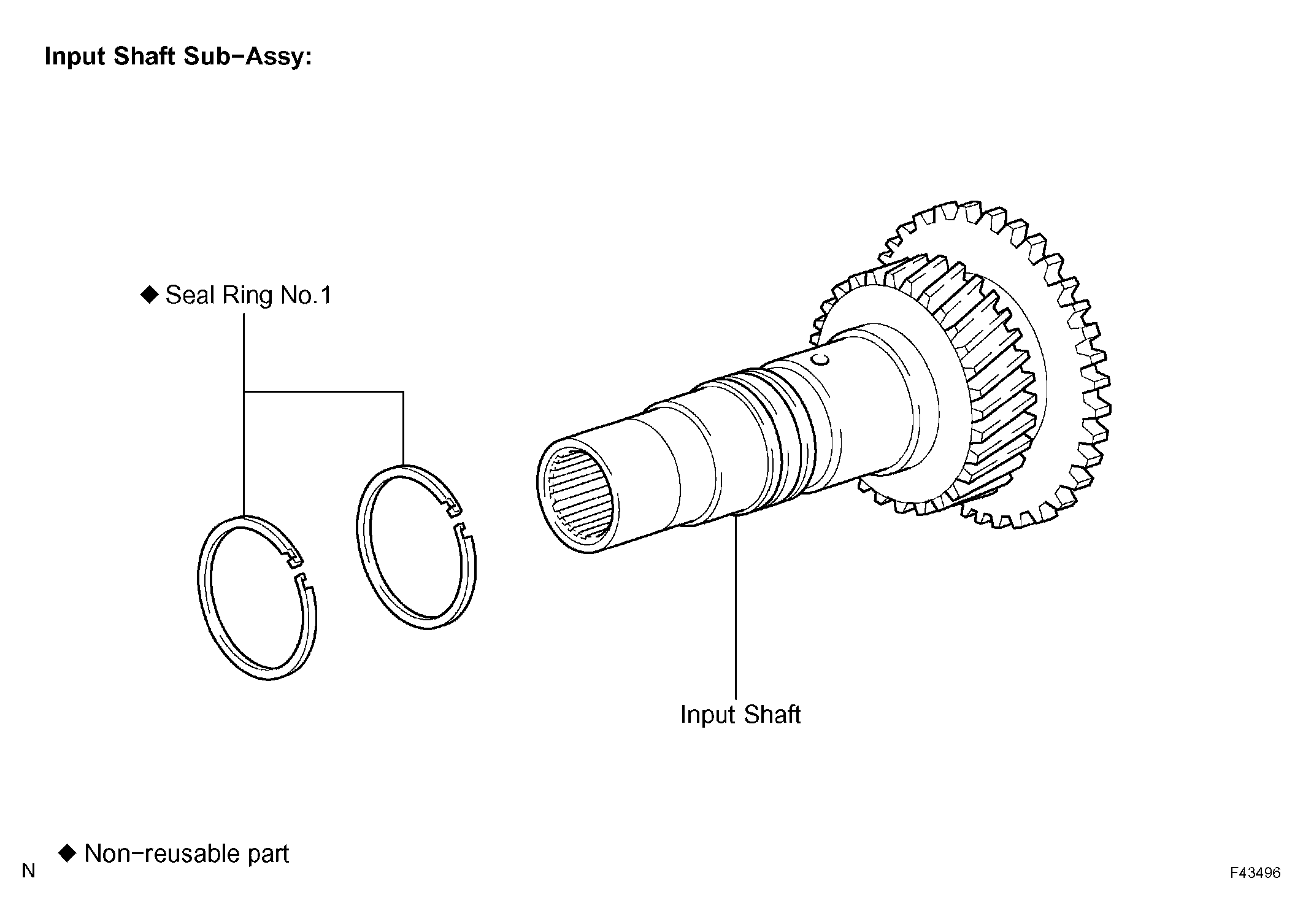

Fig 4: Exploded View Of Input Sub-Assy

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

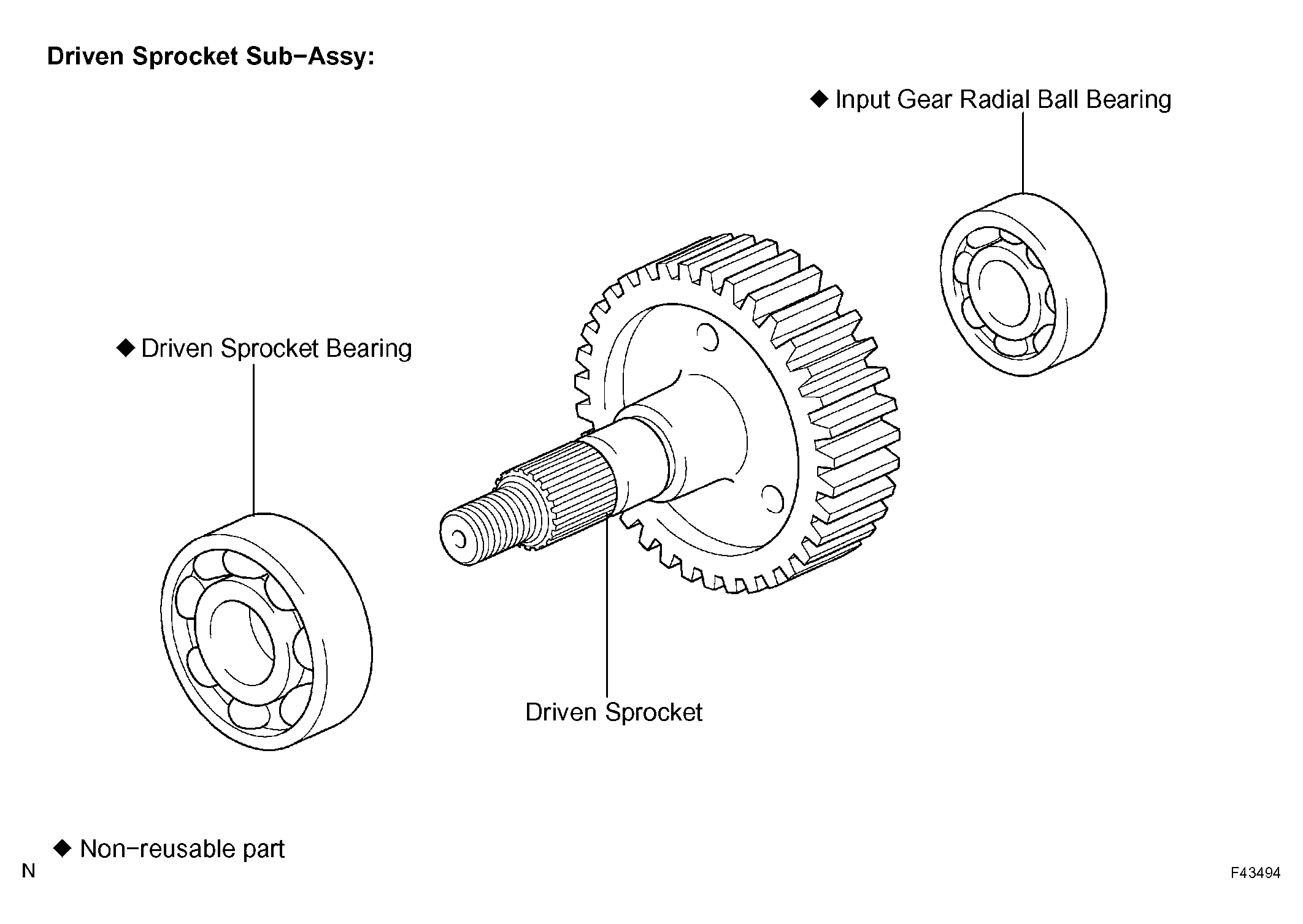

Fig 5: Exploded View Of Driven Sprocket Sub-Assy

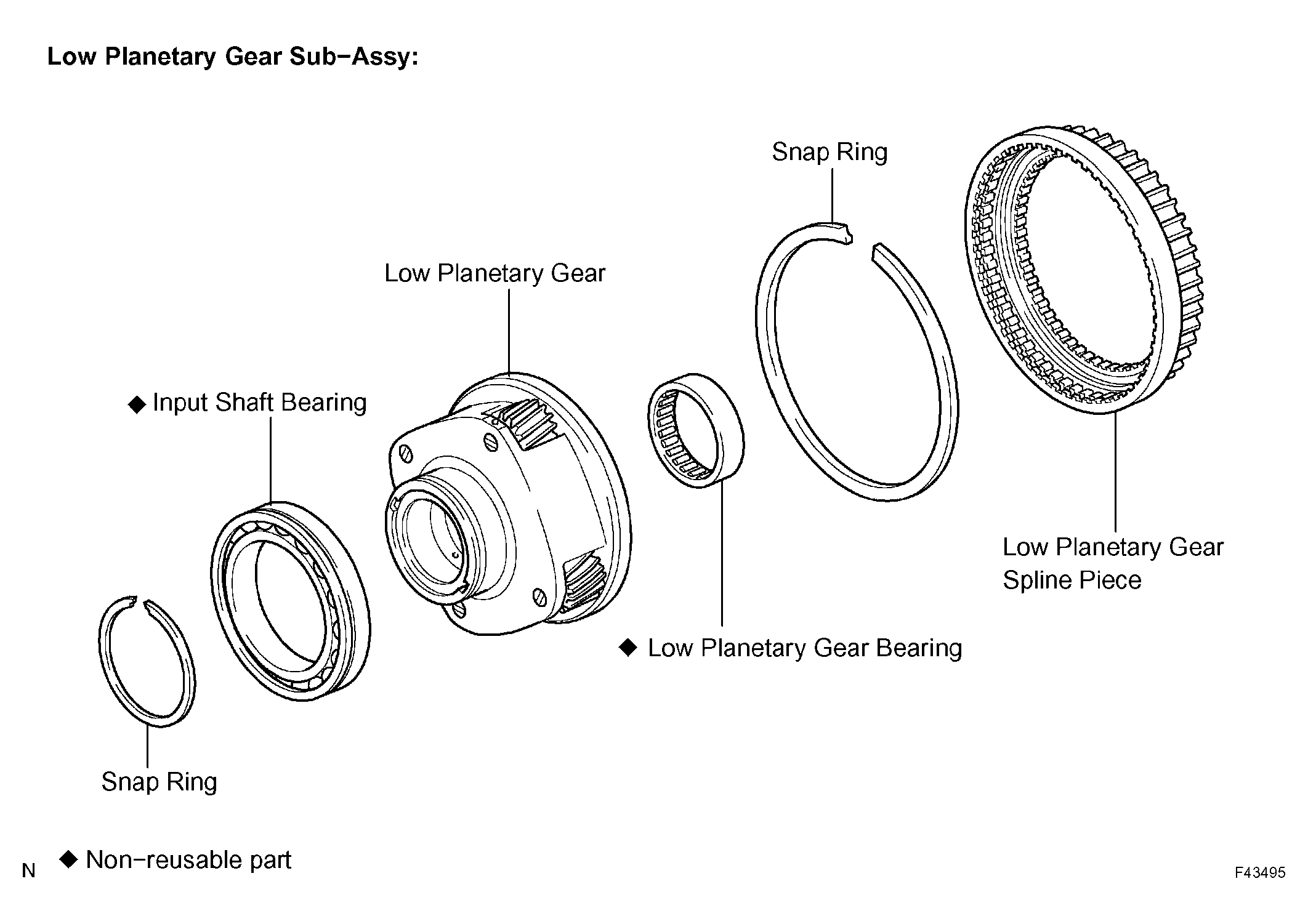

Fig 6: Exploded View Of Low Planetary Gear Sub-Assy

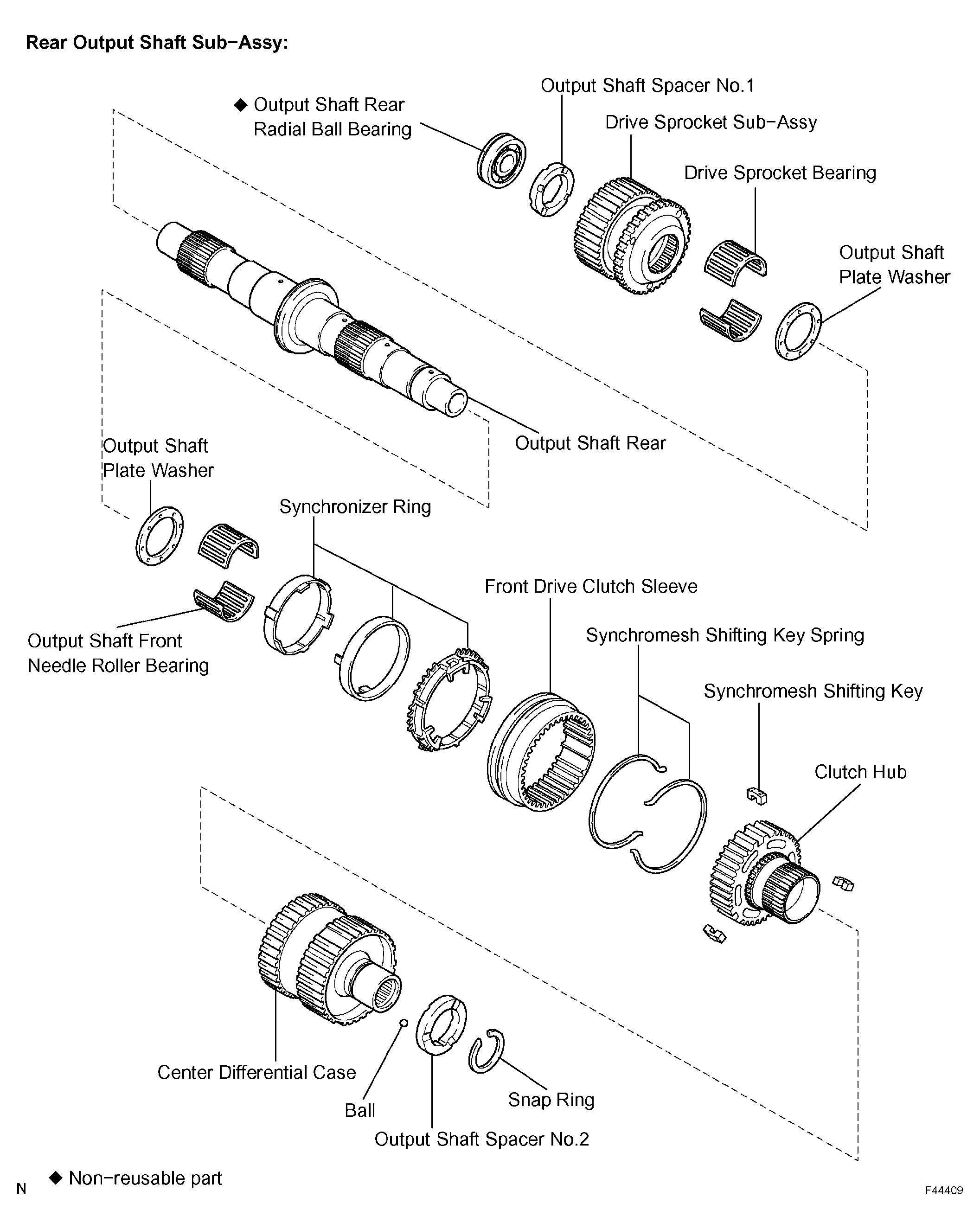

Fig 7: Exploded View Of Rear Output Shaft Sub-Assy
