Supplemental Restraint System: Preparation
WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
SST
SPECIAL SERVICE TOOLS DESCRIPTION (SUPPLEMENTAL RESTRAINT SYSTEM)

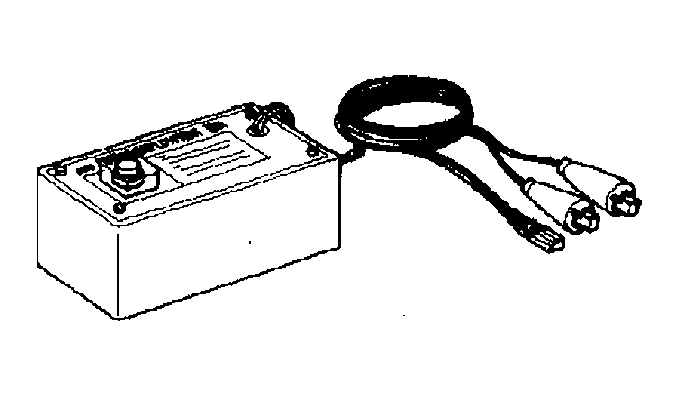

| 09082-00700 | SRS Airbag Deployment Tool | HORN BUTTON ASSY INSTR PNL PASS L/DOOR AIR BAG ASSY CURTAIN SHIELD AIR BAG ASSY LH FRONT SEAT AIRBAG ASSY LH |
|

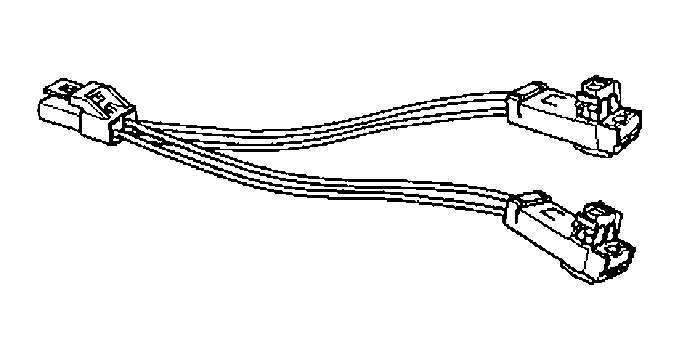

| 09082-00750 | Airbag Deployment Wire Sub-harness No.3 | FRONT SEAT AIRBAG ASSY LH | |
| 09082-00780 | Airbag Deployment Wire Sub-harness No.6 | HORN BUTTON ASSY INSTR PNL PASS L/DOOR AIR BAG ASSY | |

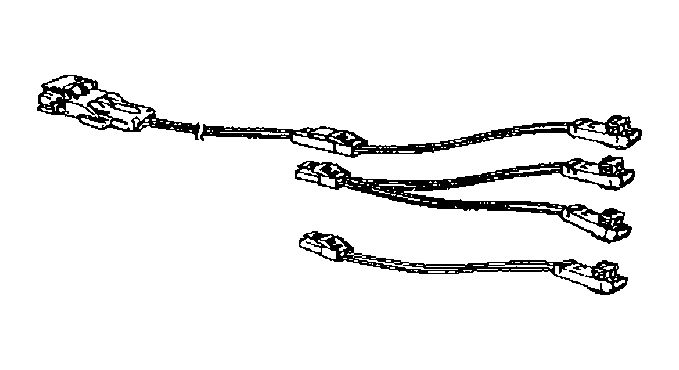

| 09082-00802 | Airbag Deployment Wire Sub-Harness No. 8 | HORN BUTTON ASSY CURTAIN SHIELD AIR BAG ASSY LH |
|
| (09082-10801) | Wire A | HORN BUTTON ASSY CURTAIN SHIELD AIR BAG ASSY LH |
|
| (09082-20801) | Wire B | CURTAIN SHIELD AIR BAG ASSY LH | |
| (09082-30801) | Wire C | HORN BUTTON ASSY | |
| 09950-50013 | Puller C Set | SPIRAL CABLE SUB-ASSY INSTR PNL PASS L/DOOR AIR BAG ASSY |
|
| (09951-05010) | Hanger 150 | SPIRAL CABLE SUB-ASSY INSTR PNL PASS L/DOOR AIR BAG ASSY |
|

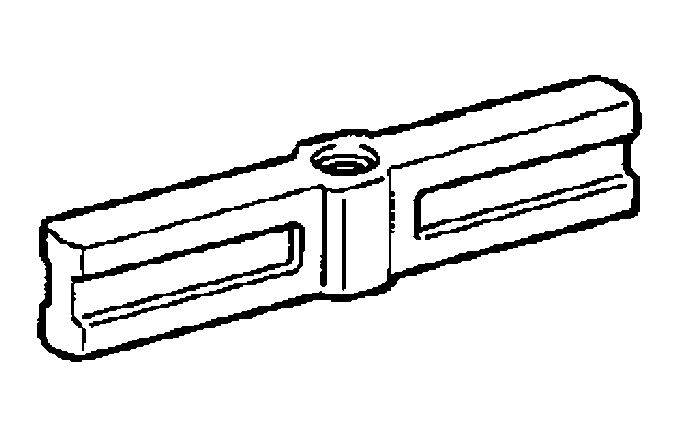

| (09952-05010) | Slide Arm | SPIRAL CABLE SUB-ASSY INSTR PNL PASS L/DOOR AIR BAG ASSY | |
| (09953-05020) | Center Bolt 150 | SPIRAL CABLE SUB-ASSY INSTR PNL PASS L/DOOR AIR BAG ASSY | |
| (09954-05021) | Claw No. 2 | SPIRAL CABLE SUB-ASSY INSTR PNL PASS L/DOOR AIR BAG ASSY |
Recommended Tools
RECOMMENDED TOOLS DESCRIPTION (SUPPLEMENTAL RESTRAINT SYSTEM)

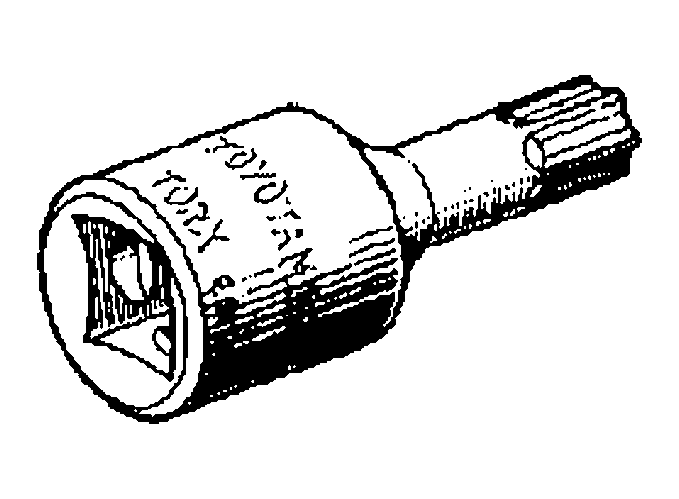

| 09042-00010 | Torx Socket T30 | HORN BUTTON ASSY SPIRAL CABLE SUB-ASSY INSTR PNL PASS L/DOOR AIR BAG ASSY |
Torx is a registered trademark of Textron Inc.
Equipment
EQUIPMENTS (SUPPLEMENTAL RESTRAINT SYSTEM)
| Torque wrench | - |
| Bolt Length: 35.0 mm (1.378 in.) Pitch: 1.0 mm (0.039 in.) Diameter: 6.0 mm (0.236 in.) |
Airbag disposal |
| Tire Width: 185 mm (7.28 in.) Inner diameter: 360 mm (14.17 in.) |
Airbag disposal |
| Tire with disc wheel Width: 185 mm (7.28 in.) Inner diameter: 360 mm (14.17 in.) |
Airbag disposal |
| Plastic bag | Airbag disposal |
