Starting & Charging: Preparation
WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
SST
SPECIAL SERVICE TOOLS DESCRIPTION (STARTING & CHARGING)

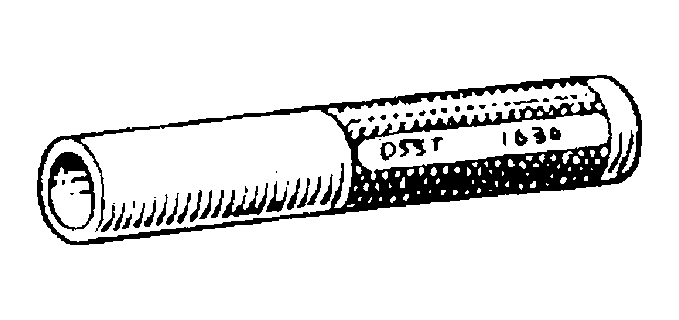

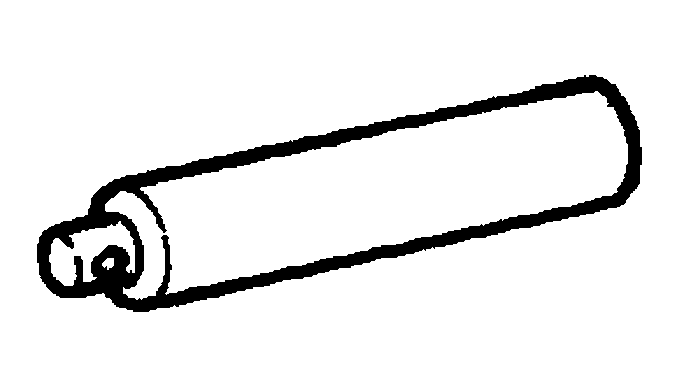

| 09285-76010 | Injection Pump Camshaft Bearing Cone Replacer | GENERATOR ASSY (1GR-FE) GENERATOR ASSY (2UZ-FE) |
|

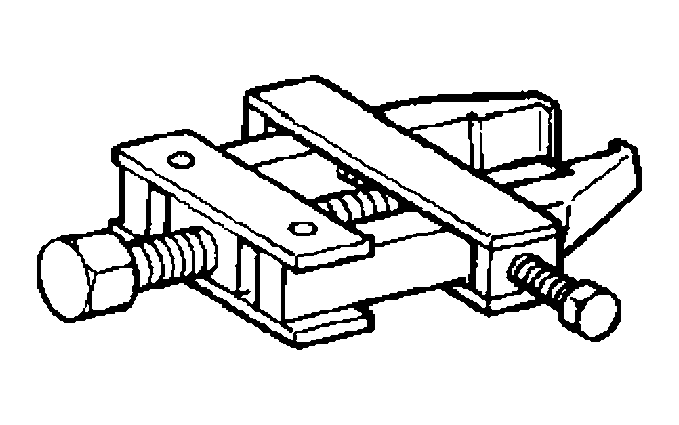

| 09820-00021 | Alternator Rear Bearing Puller | GENERATOR ASSY (1GR-FE) GENERATOR ASSY (2UZ-FE) |
|

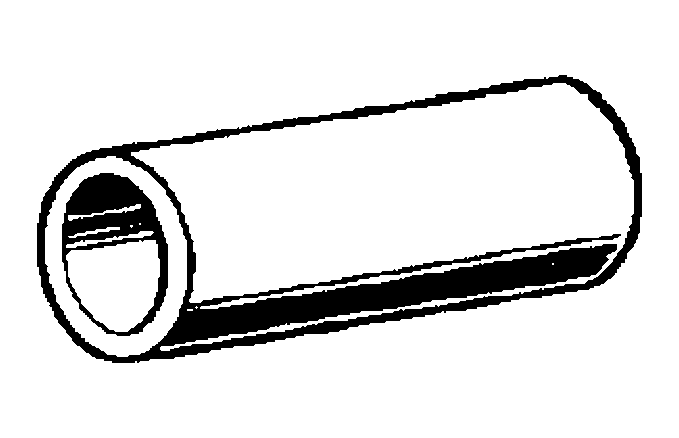

| 09820-00031 | Alternator Rotor Rear Bearing Replacer | GENERATOR ASSY (1GR-FE) GENERATOR ASSY (2UZ-FE) |
|

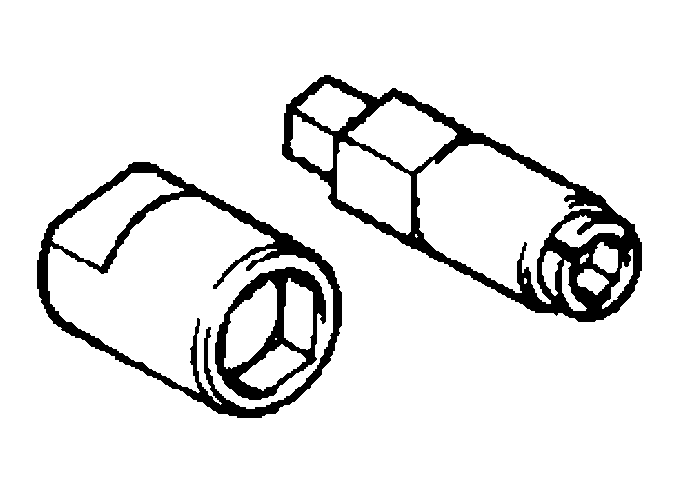

| 09820-63010 | Alternator Pulley Set Nut Wrench Set | GENERATOR ASSY (1GR-FE) | |

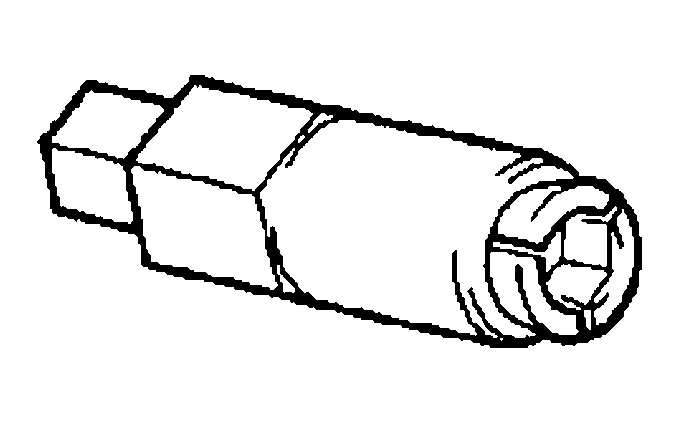

| (09820-06010) | Alternator Rotor Shaft Wrench | GENERATOR ASSY (1GR-FE) | |
| (09820-06020) | Alternator Pulley Set Nut 22 mm Wrench | GENERATOR ASSY (1GR-FE) | |

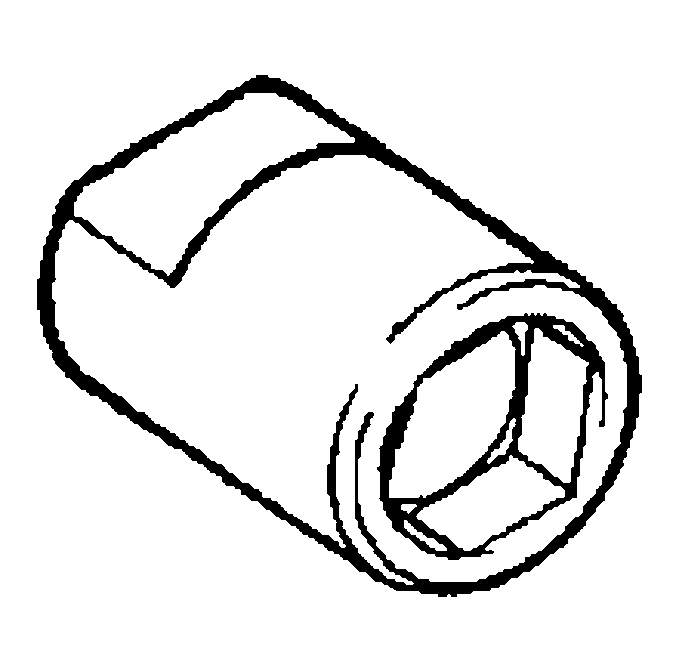

| 09820-63011 | Alternator Pulley Set Nut Wrench Set | GENERATOR ASSY (2UZ-FE) | |

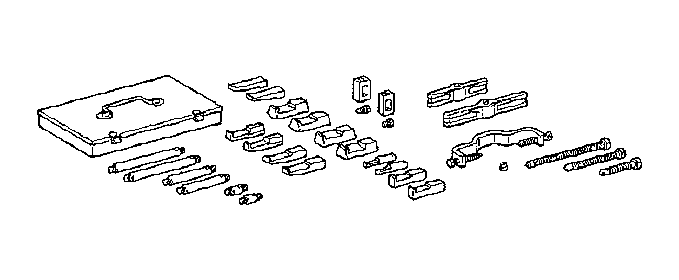

| 09950-40011 | Puller B Set | GENERATOR ASSY (1GR-FE) GENERATOR ASSY (2UZ-FE) |
|

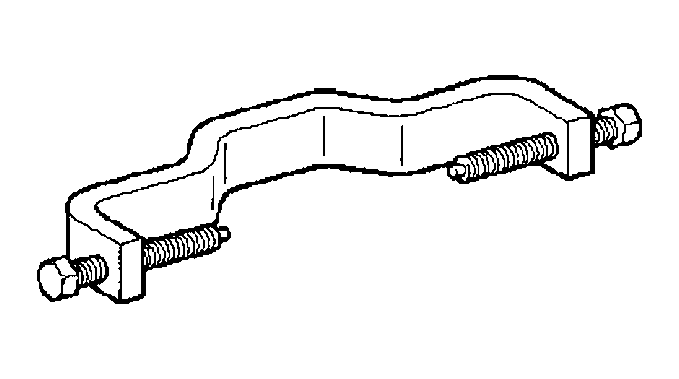

| (09951-04020) | Hanger 200 | GENERATOR ASSY (1GR-FE) GENERATOR ASSY (2UZ-FE) |
|

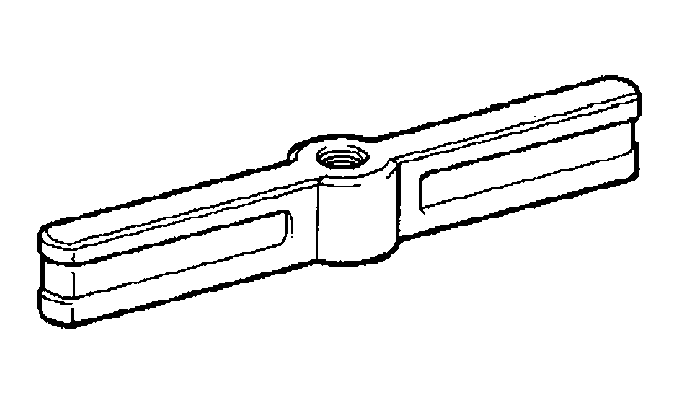

| (09952-04010) | Slide Arm | GENERATOR ASSY (1GR-FE) GENERATOR ASSY (2UZ-FE) |
|

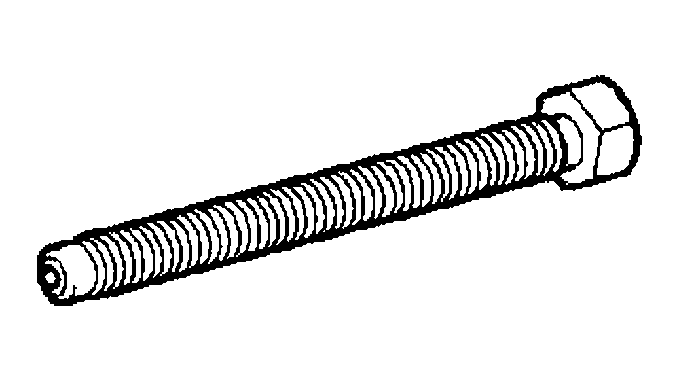

| (09953-04020) | Center Bolt 150 | GENERATOR ASSY (1GR-FE) GENERATOR ASSY (2UZ-FE) |
|
| (09954-04010) | Arm 25 | GENERATOR ASSY (1GR-FE) GENERATOR ASSY (2UZ-FE) |
|

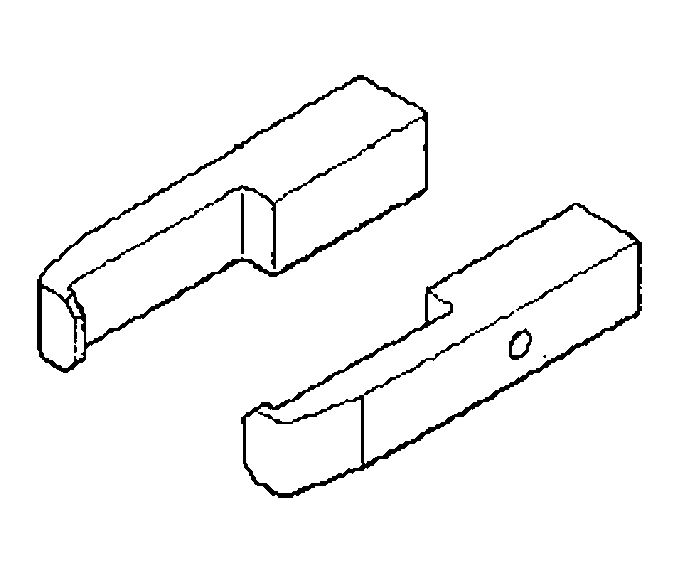

| (09955-04071) | Claw No.7 | GENERATOR ASSY (1GR-FE) GENERATOR ASSY (2UZ-FE) |
|
| (09957-04010) | Attachment | GENERATOR ASSY (1GR-FE) GENERATOR ASSY (2UZ-FE) |
|

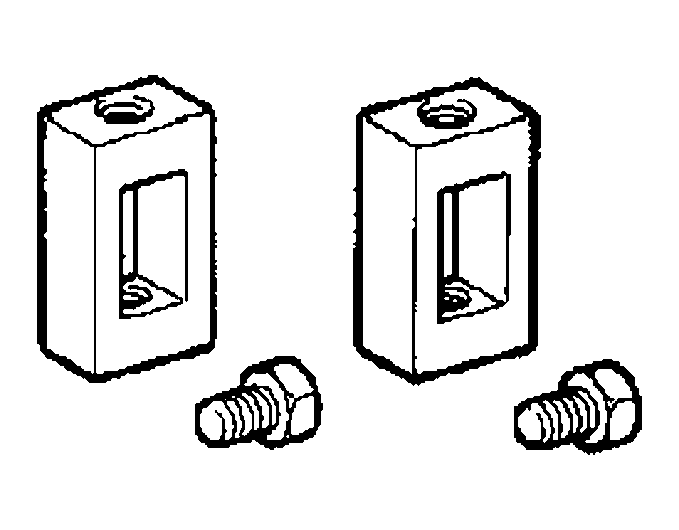

| (09958-04011) | Holder | GENERATOR ASSY (1GR-FE) GENERATOR ASSY (2UZ-FE) |
|

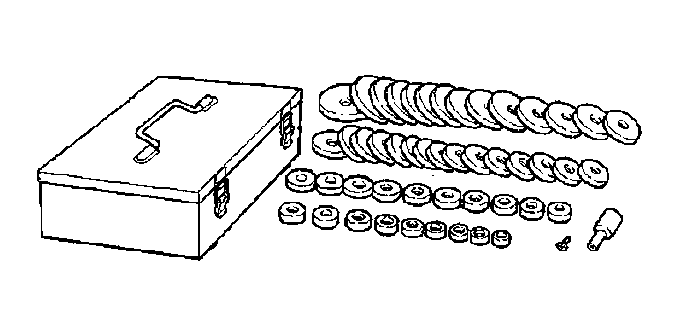

| 09950-60010 | Replacer Set | GENERATOR ASSY (1GR-FE) GENERATOR ASSY (2UZ-FE) |
|

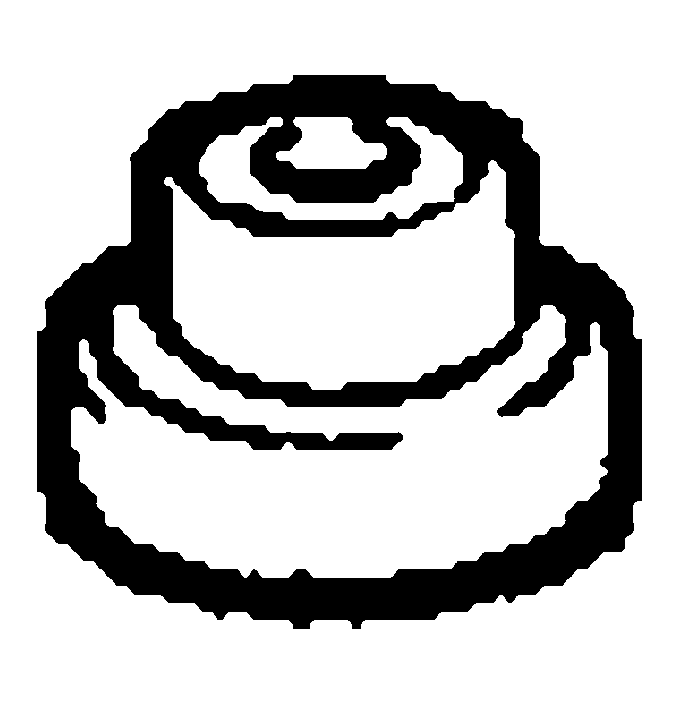

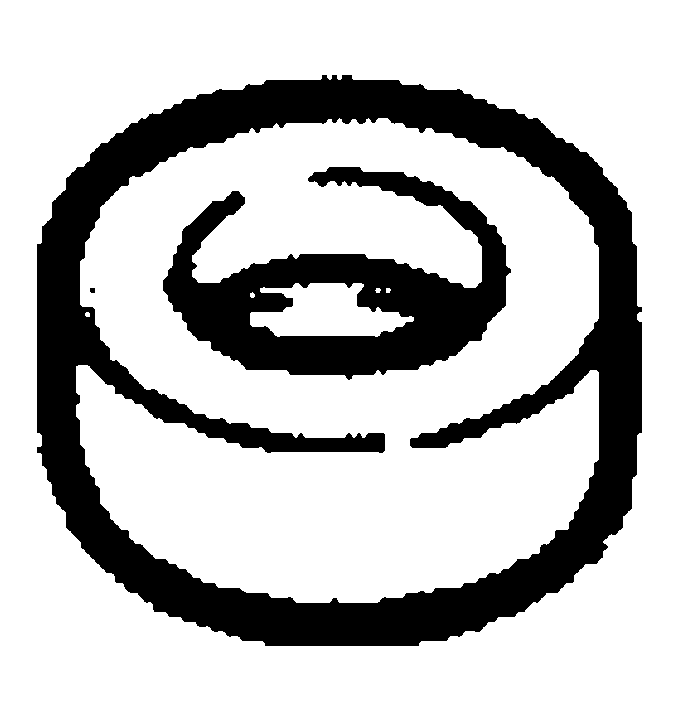

| (09951-00250) | Replacer 25 | GENERATOR ASSY (1GR-FE) GENERATOR ASSY (2UZ-FE) |
|
| (09951-00470) | Replacer 47 | GENERATOR ASSY (1GR-FE) GENERATOR ASSY (2UZ-FE) |
|

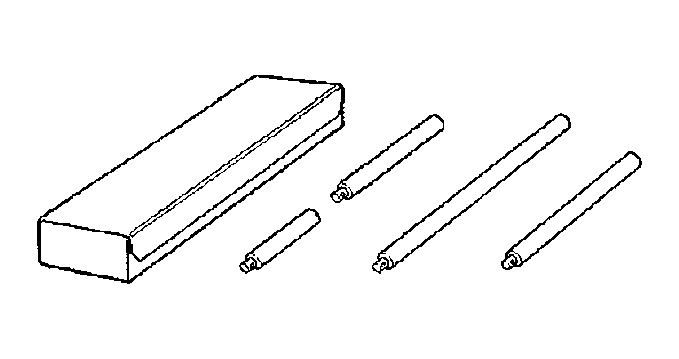

| 09950-70010 | Handle Set | GENERATOR ASSY (1GR-FE) GENERATOR ASSY (2UZ-FE) |
|
| (09951-07100) | Handle 100 | GENERATOR ASSY (1GR-FE) GENERATOR ASSY (2UZ-FE) |
Recommended Tools
RECOMMENDED TOOLS DESCRIPTION (STARTING & CHARGING)

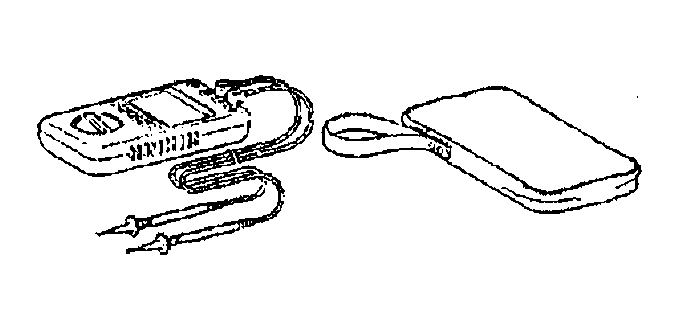

| 09082-00040 | TOYOTA Electrical Tester | GENERATOR ASSY (1GR-FE) STARTER ASSY (2UZ-FE) (From November, 2004) |
|

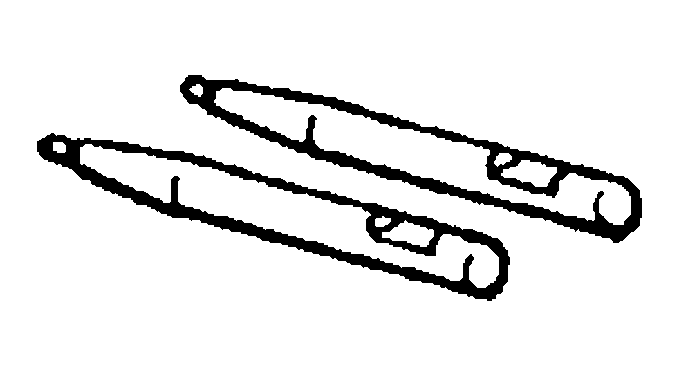

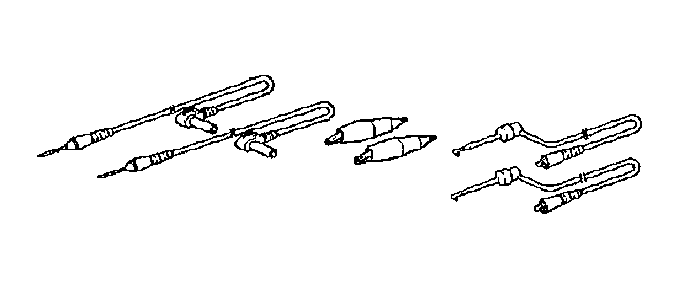

| (09083-00150) | Test Lead Set | GENERATOR ASSY (1GR-FE) | |

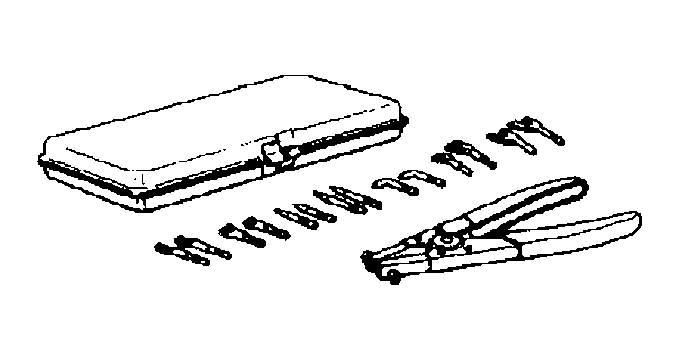

| 09904-00010 | Expander Set | STARTER ASSY (1.6 KW) (1GR-FE) | |
| (09904-00050) | No. 4 Claw | STARTER ASSY (1.6 KW) (1GR-FE) |
Equipment
EQUIPMENTS (STARTING & CHARGING)
| Ammeter (A) | - |
| Dial indicator with magnetic base | - |
| Ohmmeter | - |
| Pull scale | - |
| Service Wire Harness | - |
| Torque wrench | - |
| V-block | - |
| Vernier calipers | - |
| Press | - |
| Dial indicator | - |
