Power Steering: Preparation
WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
SST
SPECIAL SERVICE TOOLS DESCRIPTION (POWER STEERING)

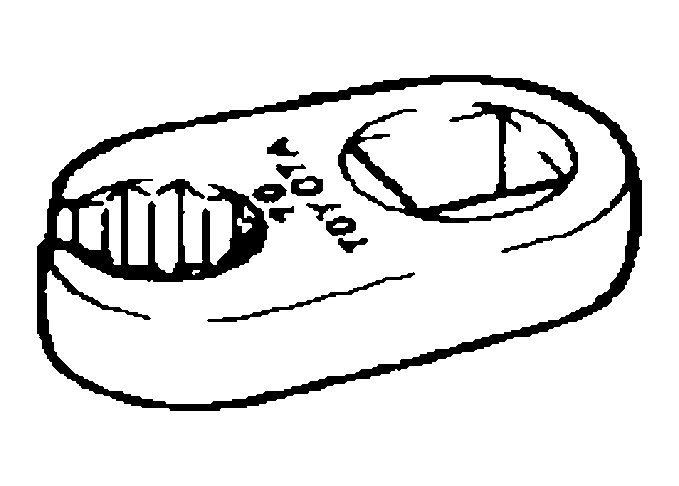

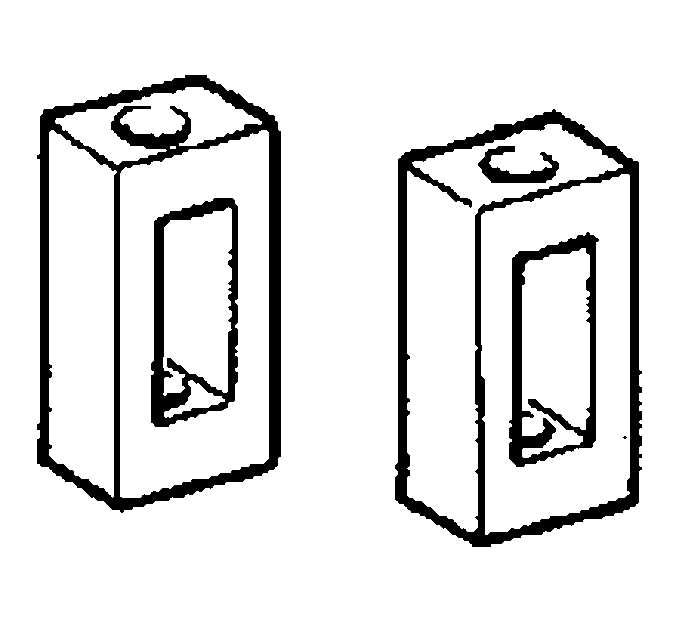

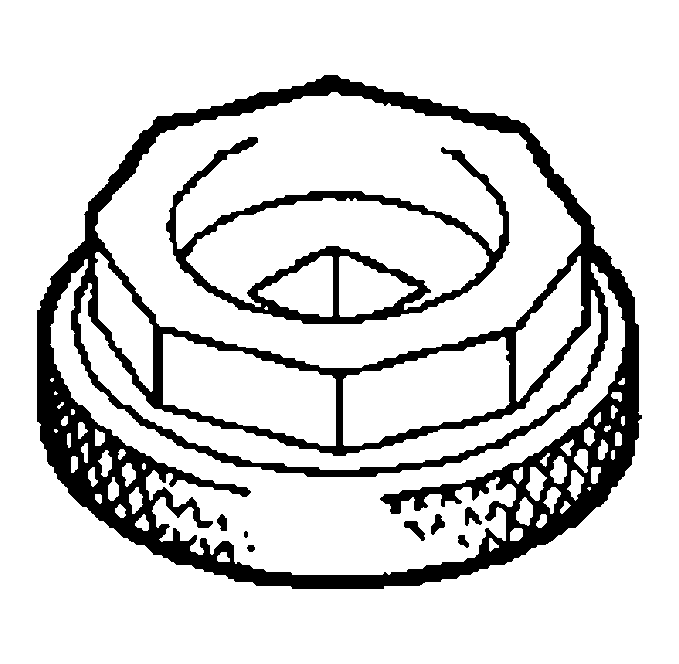

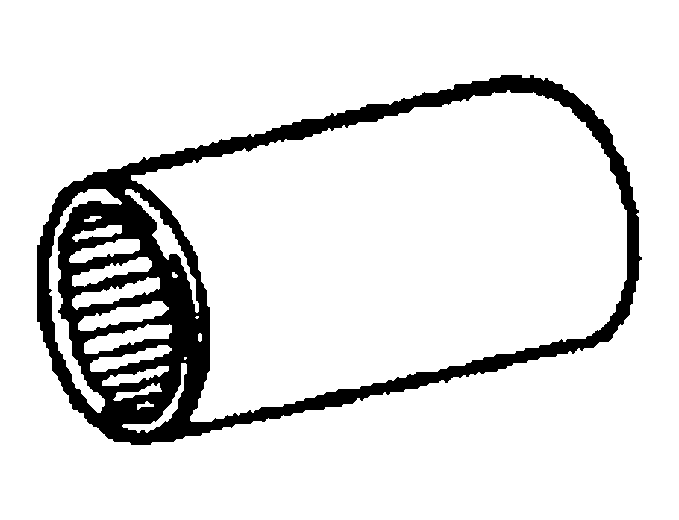

| 09023-12701 | Union Nut Wrench 17 mm | POWER STEERING LINK ASSY | |
| 09023-38201 | Union Nut Wrench 12 mm | POWER STEERING LINK ASSY | |
| 09612-00012 | Rack & Pinion Steering Rack Housing Stand | POWER STEERING LINK ASSY | |
| 09616-00011 | Steering Worm Bearing Adjusting Socket | POWER STEERING LINK ASSY | |
| 09628-62011 | Ball Joint Puller | POWER STEERING LINK ASSY | |

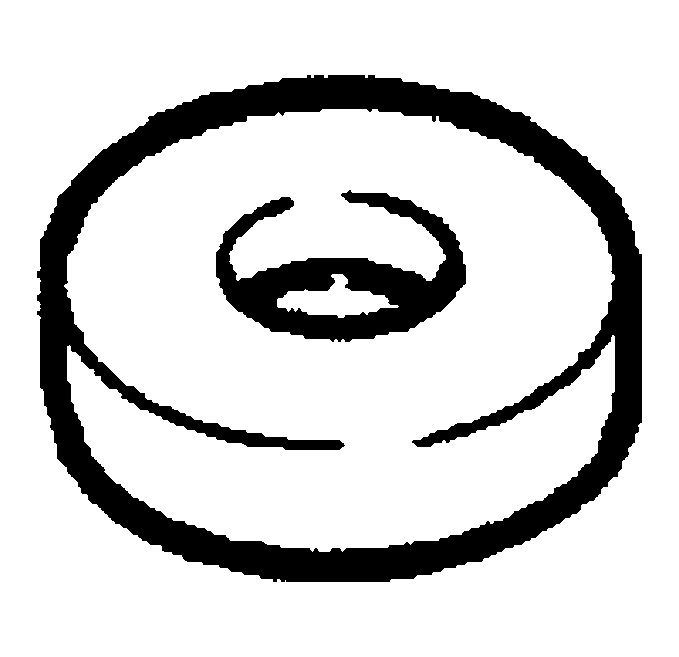

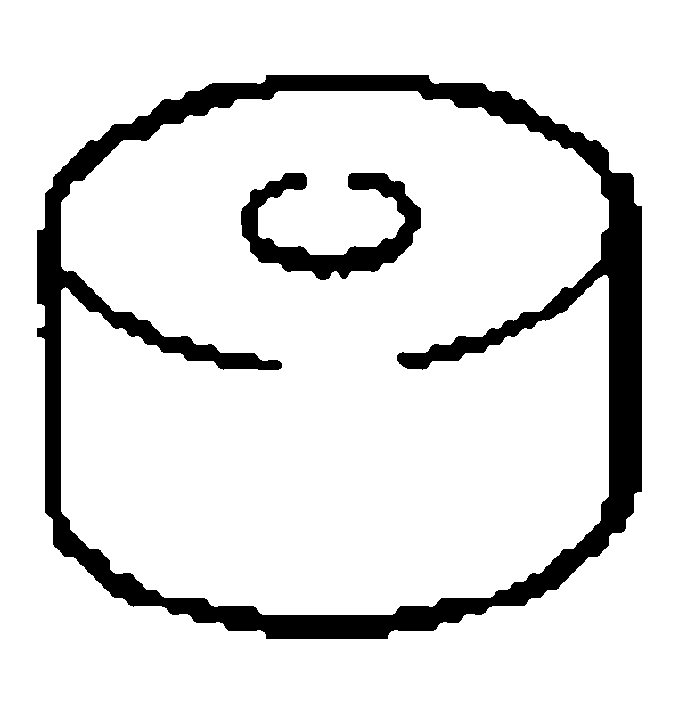

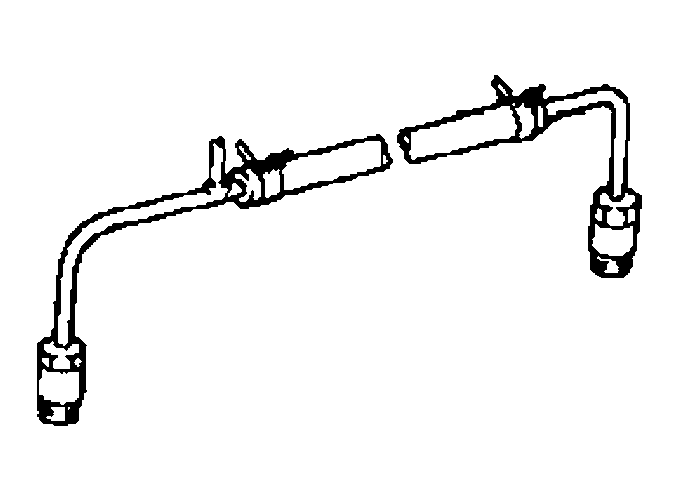

| 09631-00350 | Steering Rack Cover 35 | POWER STEERING LINK ASSY | |
| 09631-12071 | Steering Rack Oil Seal Test Tool | POWER STEERING LINK ASSY | |
| (09633-00010) | Packing | POWER STEERING LINK ASSY | |

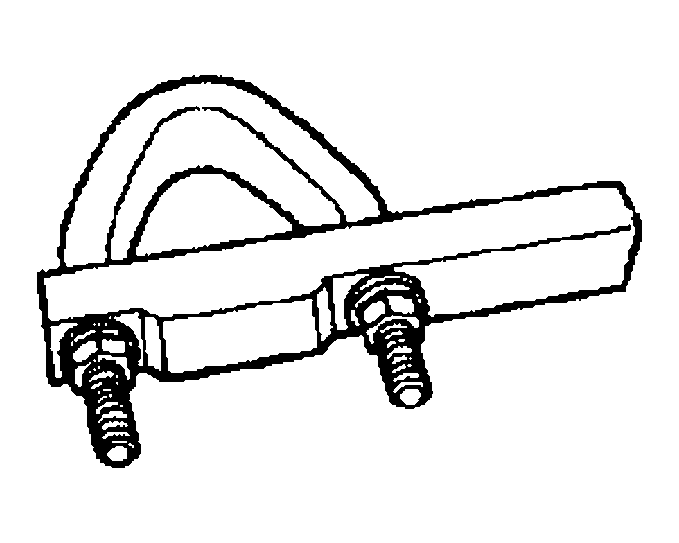

| 09631-20060 | Bearing Guide Nut Wrench | POWER STEERING LINK ASSY | |
| 09631-20081 | Seal Ring Tool | POWER STEERING LINK ASSY | |

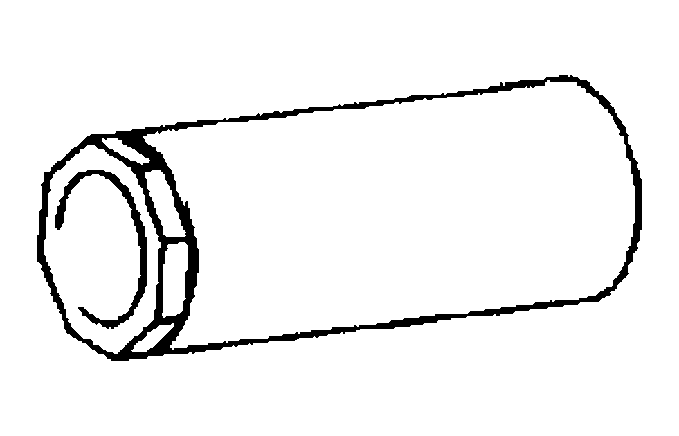

| 09631-20120 | Cylinder End Stopper Nut Wrench | POWER STEERING LINK ASSY | |

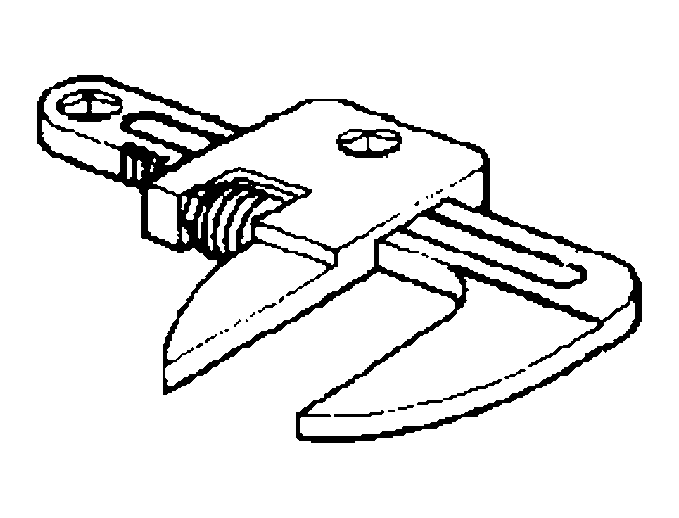

| 09922-10010 | Variable Open Wrench | POWER STEERING LINK ASSY | |

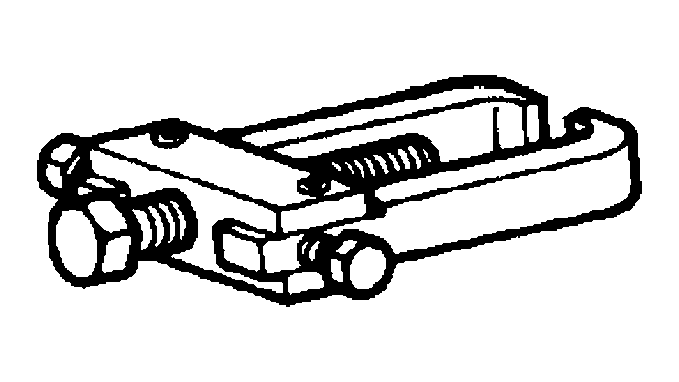

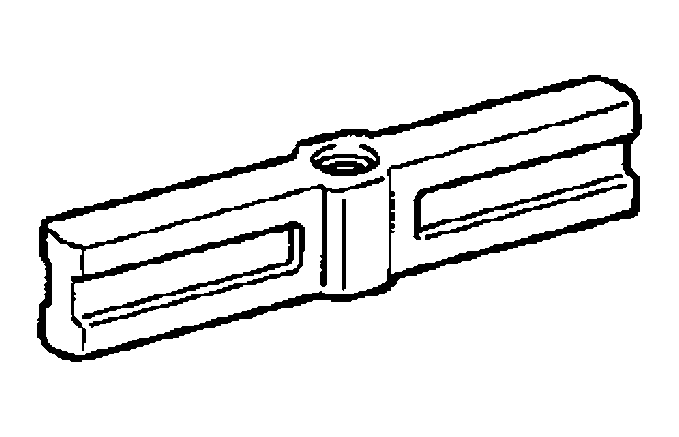

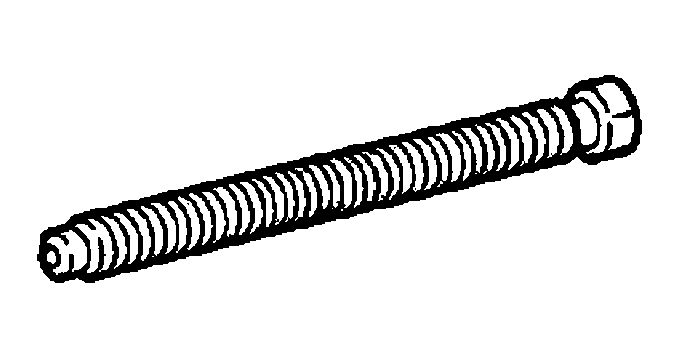

| 09950-50013 | Puller C Set | POWER STEERING LINK ASSY | |
| (09951-05010) | Hanger 150 | POWER STEERING LINK ASSY | |
| (09952-05010) | Slide Arm | POWER STEERING LINK ASSY | |
| (09953-05020) | Center Bolt 150 | POWER STEERING LINK ASSY | |
| (09954-05021) | Claw No. 2 | POWER STEERING LINK ASSY | |

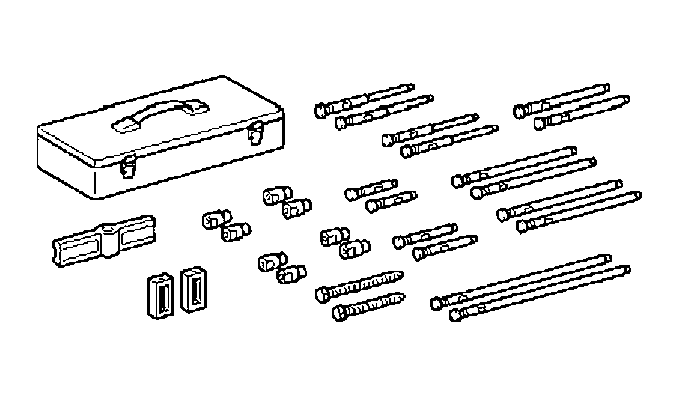

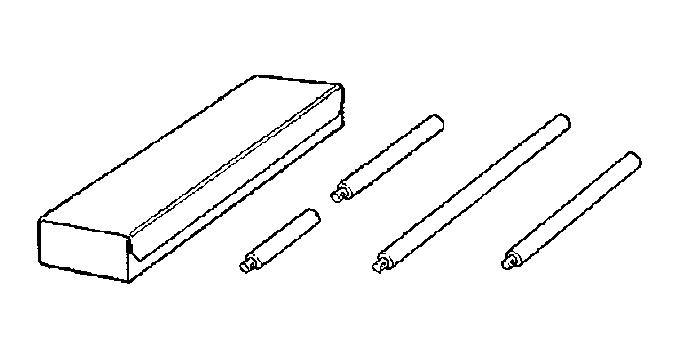

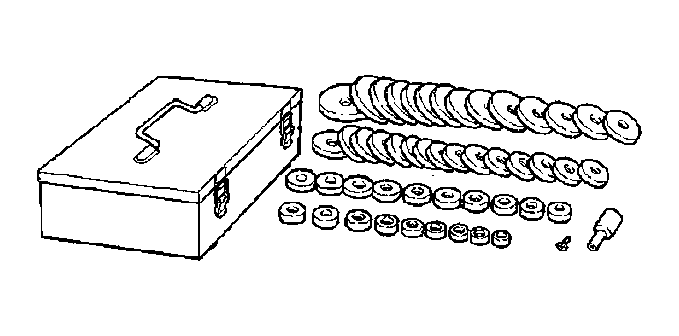

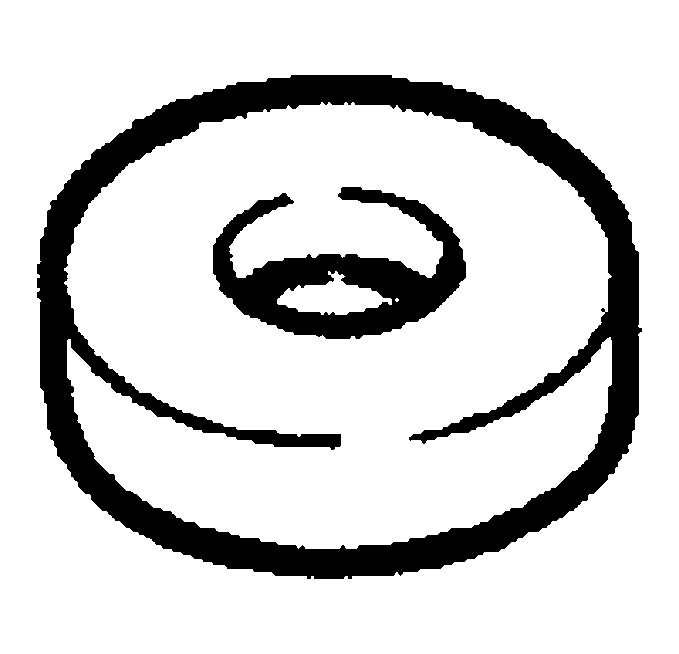

| 09950-60010 | Replacer Set | POWER STEERING LINK ASSY VANE PUMP ASSY | |

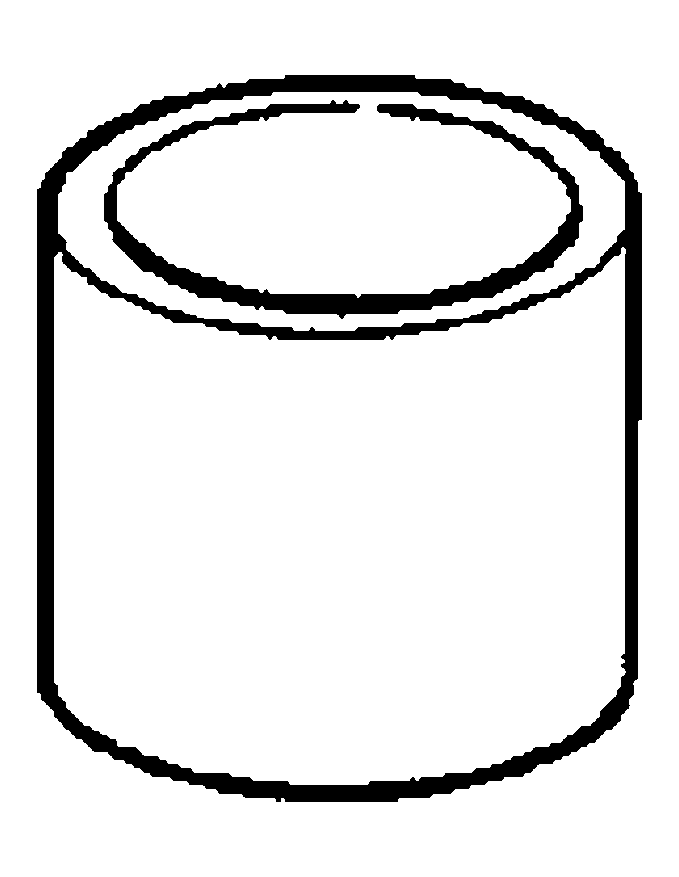

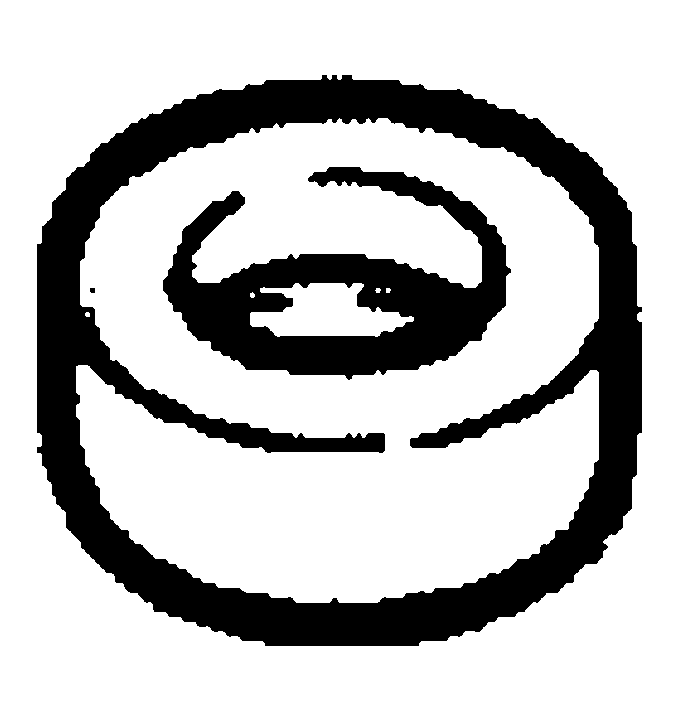

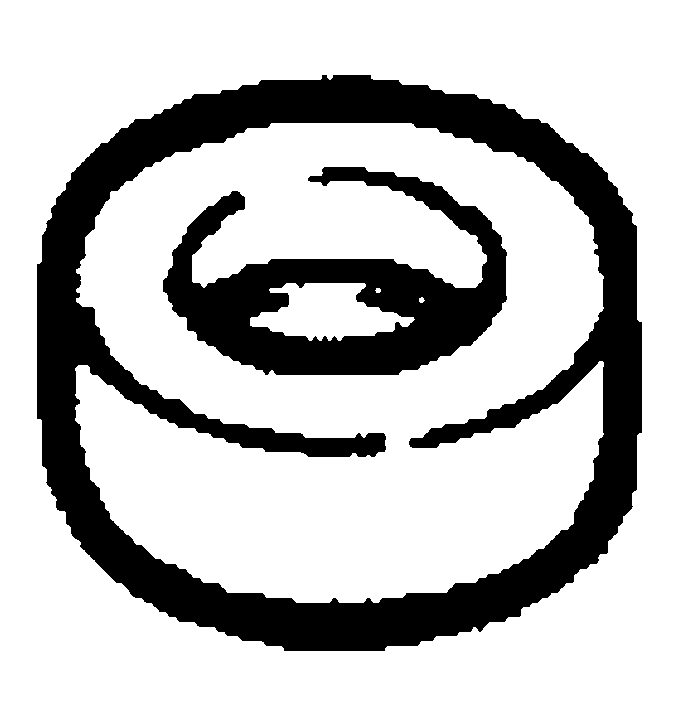

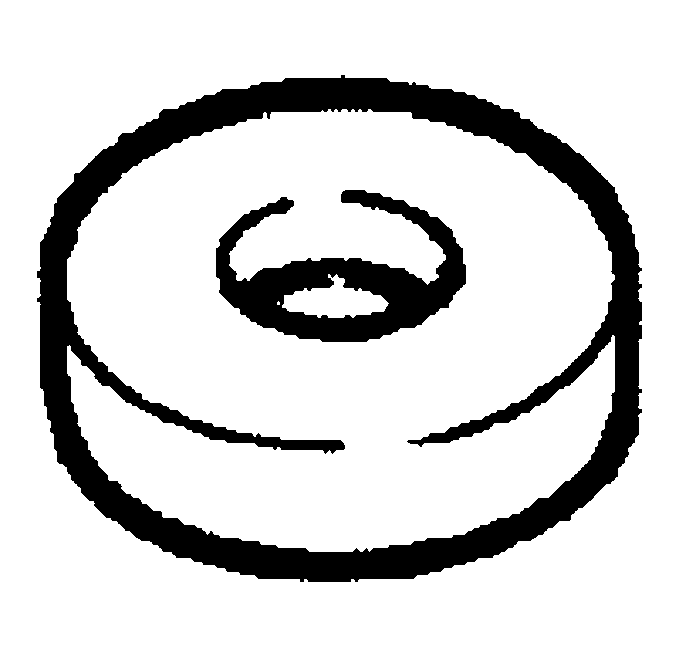

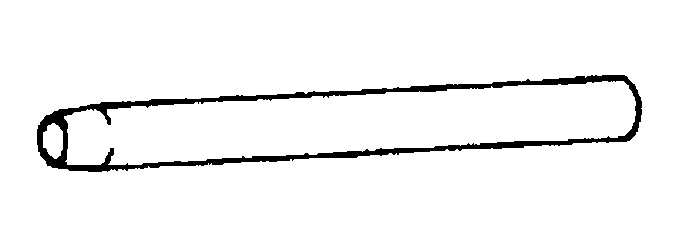

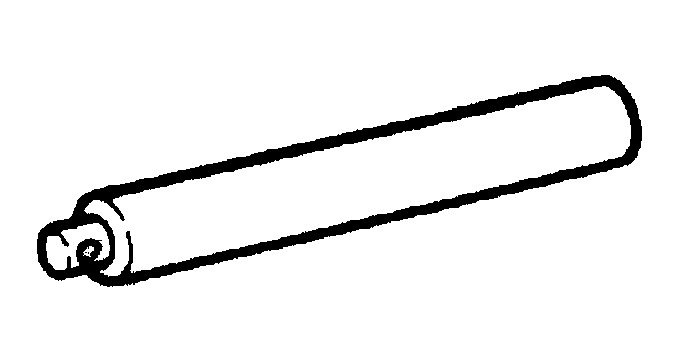

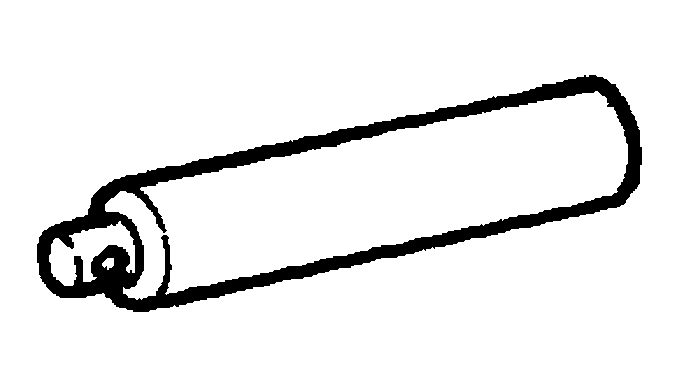

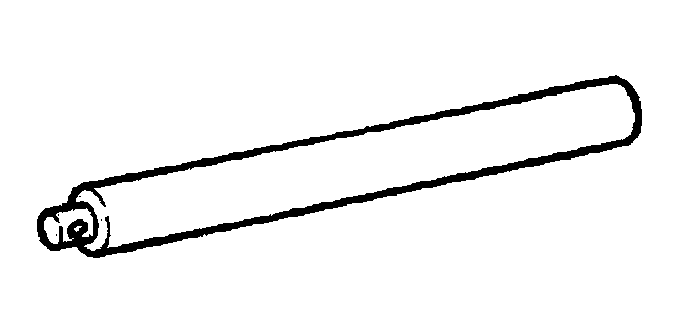

| (09951-00180) | Replacer 18 | POWER STEERING LINK ASSY | |
| (09951-00250) | Replacer 25 | POWER STEERING LINK ASSY | |
| (09951-00300) | Replacer 30 | POWER STEERING LINK ASSY | |
| (09951-00320) | Replacer 32 | POWER STEERING LINK ASSY VANE PUMP ASSY | |
| (09951-00340) | Replacer 34 | POWER STEERING LINK ASSY | |
| (09951-00390) | Replacer 39 | POWER STEERING LINK ASSY | |
| (09952-06010) | Adapter | POWER STEERING LINK ASSY | |
| 09950-70010 | Handle Set | POWER STEERING LINK ASSY VANE PUMP ASSY | |
| (09951-07100) | Handle 100 | POWER STEERING LINK ASSY VANE PUMP ASSY | |
| (09951-07150) | Handle 150 | POWER STEERING LINK ASSY | |
| (09951-07200) | Handle 200 | POWER STEERING LINK ASSY | |

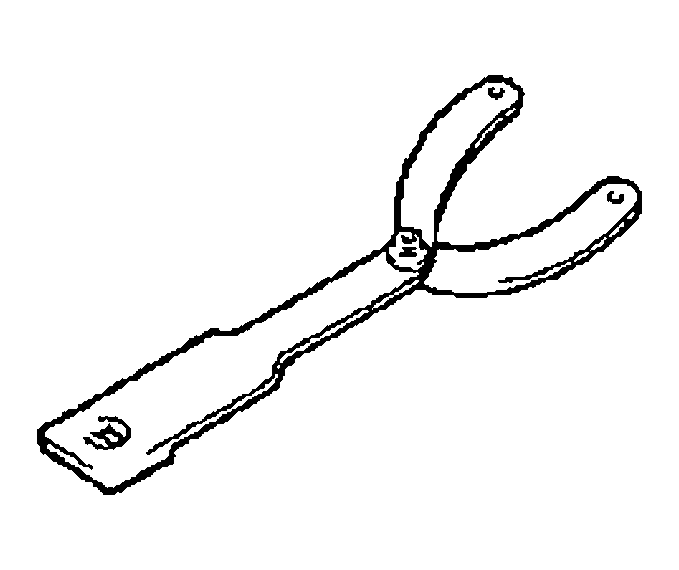

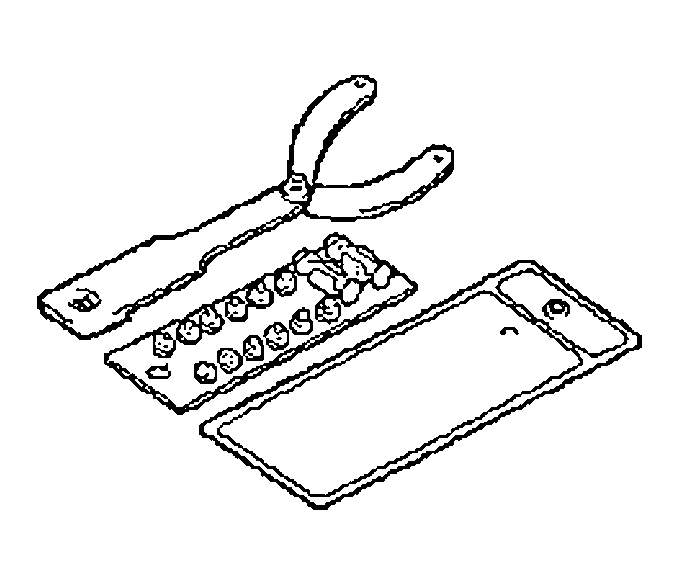

| 09960-10010 | Variable Pin Wrench Set | VANE PUMP ASSY | |
| (09962-01000) | Variable Pin Wrench Arm Assy | VANE PUMP ASSY | |

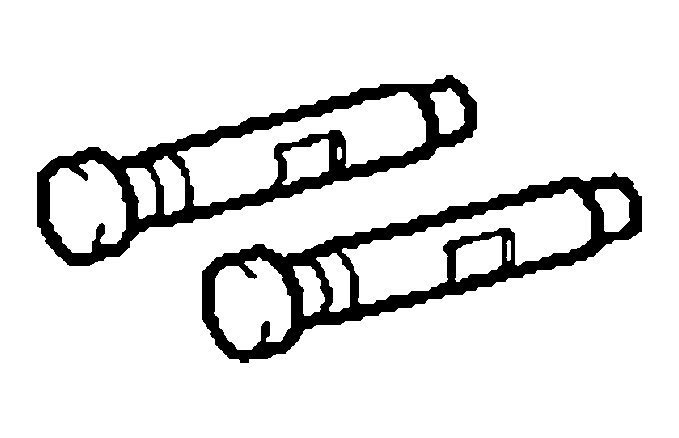

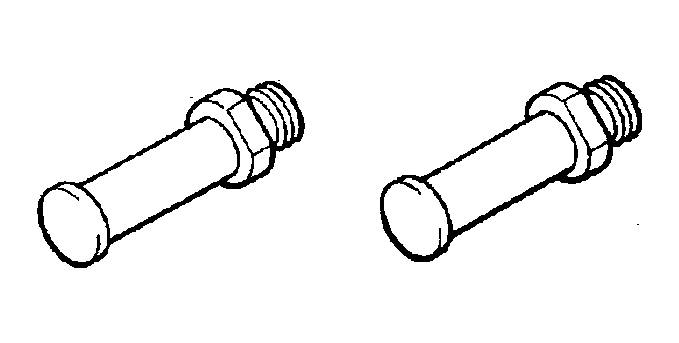

| (09963-01000) | Pin 10 | VANE PUMP ASSY |
Recommended Tools
RECOMMENDED TOOLS DESCRIPTION (POWER STEERING)

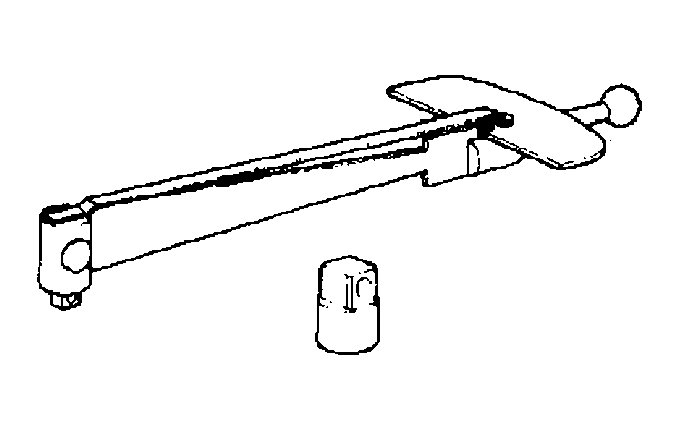

| 09025-00010 | Torque Wrench (30 kgf.cm) | VANE PUMP ASSY | |

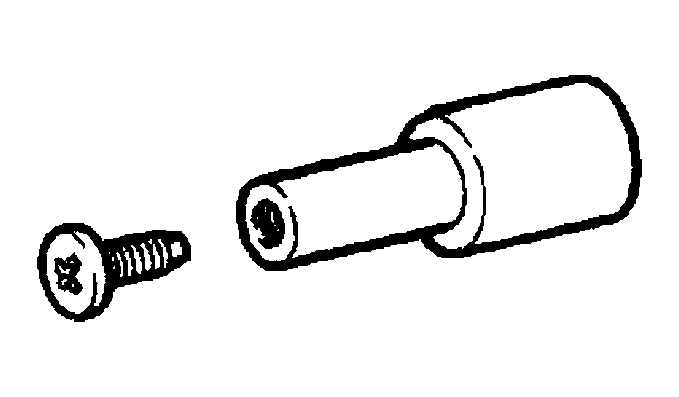

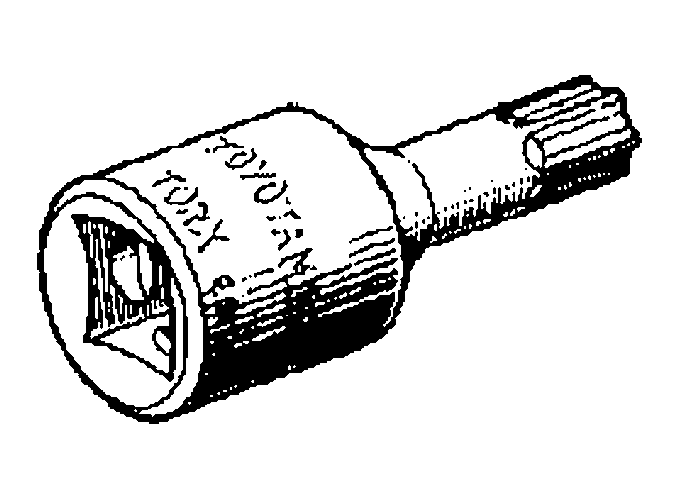

| 09042-00010 | Torx Socket T30 | POWER STEERING LINK ASSY | |

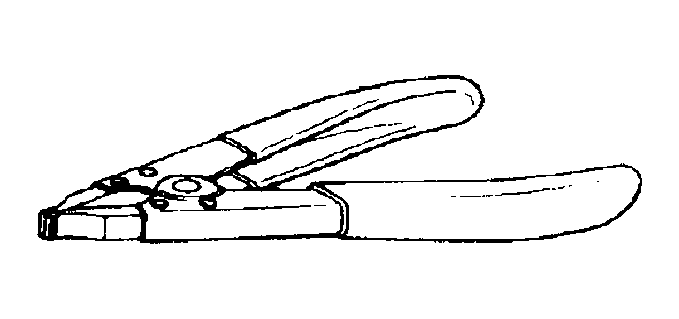

| 09905-00012 | Snap Ring No. 1 Expander | VANE PUMP ASSY |
Torx is a registered trademark of Textron Inc.
Equipment
EQUIPMENTS (POWER STEERING)
| Caliper gauge | - |
| Vernier caliper | - |
| Dial indicator | - |
| Feeler gauge | - |
| Micrometer | - |
| Torque wrench | - |
Lubricant
LUBRICANT CAPACITY AND CLASSIFICATION (POWER STEERING)
| Item | Capacity | Classification |
|---|---|---|
| Power steering fluid (Total) | 0.7 liters (0.7 US qts, 0.6 lmp.qts) | ATF DEXRON® II or III |
SSM
SPECIAL SERVICE MATERIAL SPECIFICATION (POWER STEERING)
| 08833-00080 | Adhesive 1344 THREE BOND 1344 LOCTITE 242 or equivalent |
POWER STEERING LINK ASSY |
