Section 29 (Preparation): Differential: Preparation
WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
SST
SPECIAL SERVICE TOOLS DESCRIPTION (DIFFERENTIAL)

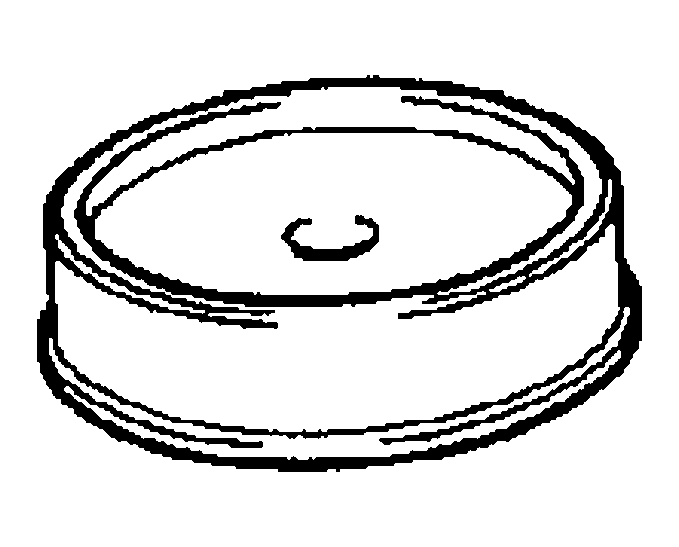

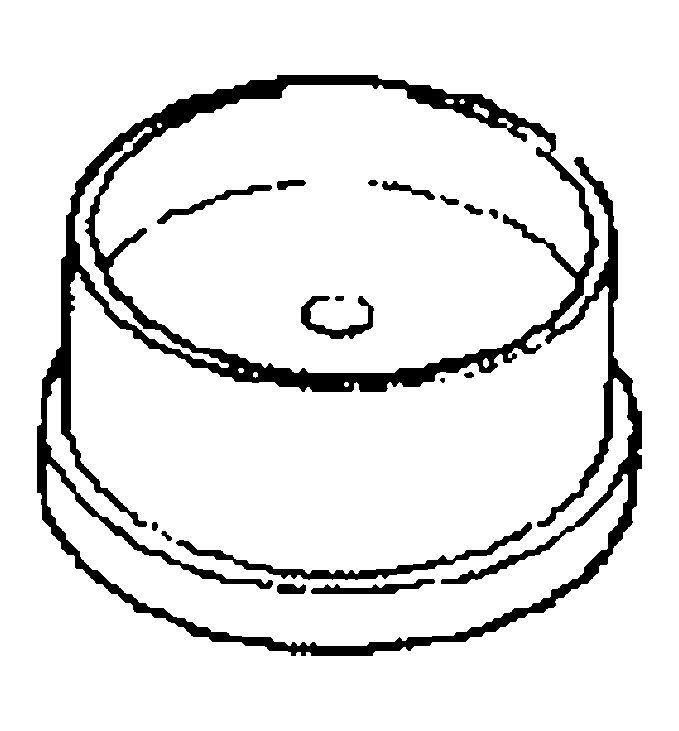

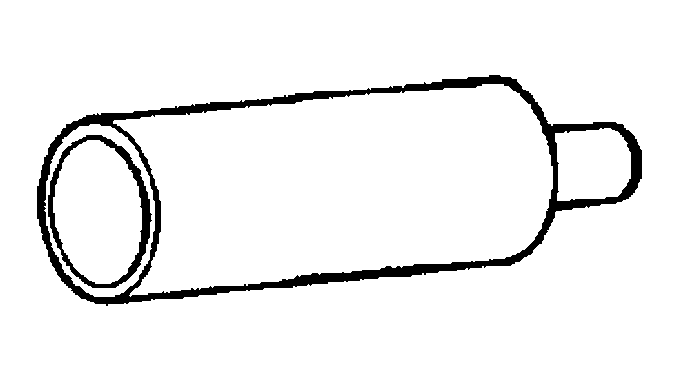

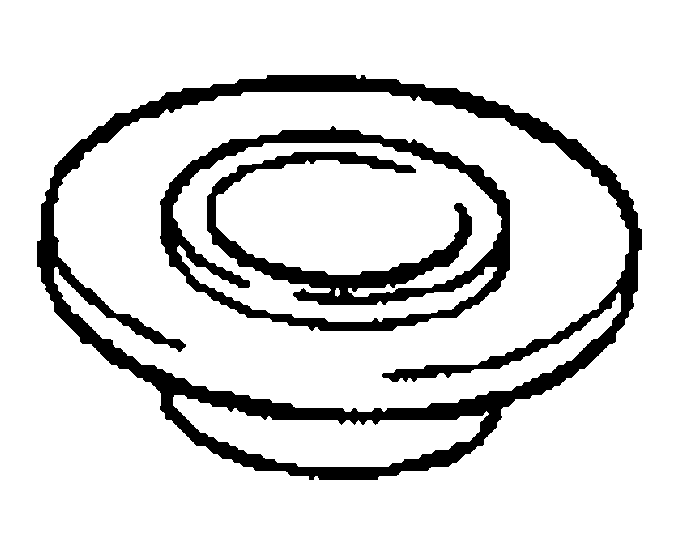

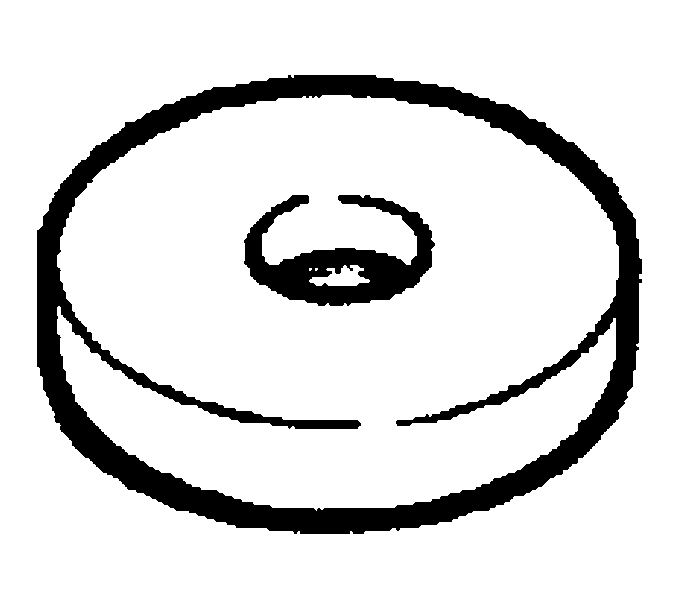

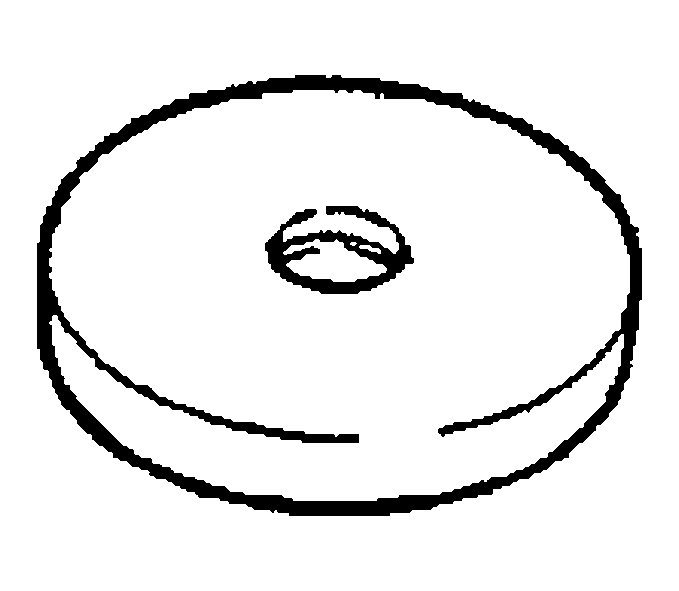

| 09223-00010 | Cover & Seal Replacer | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
|---|---|---|---|

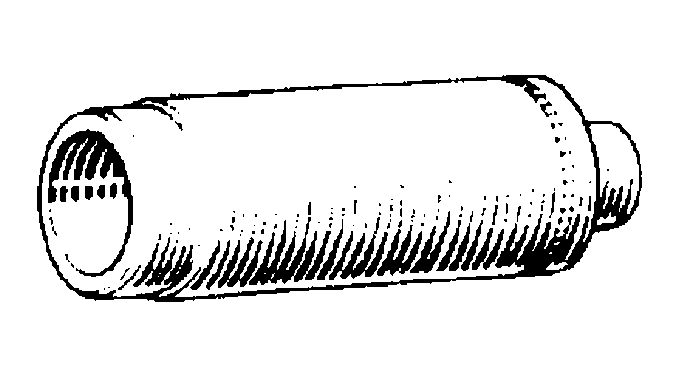

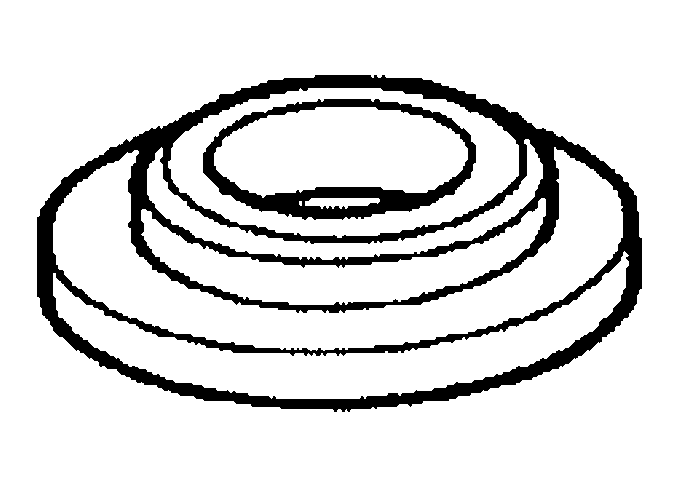

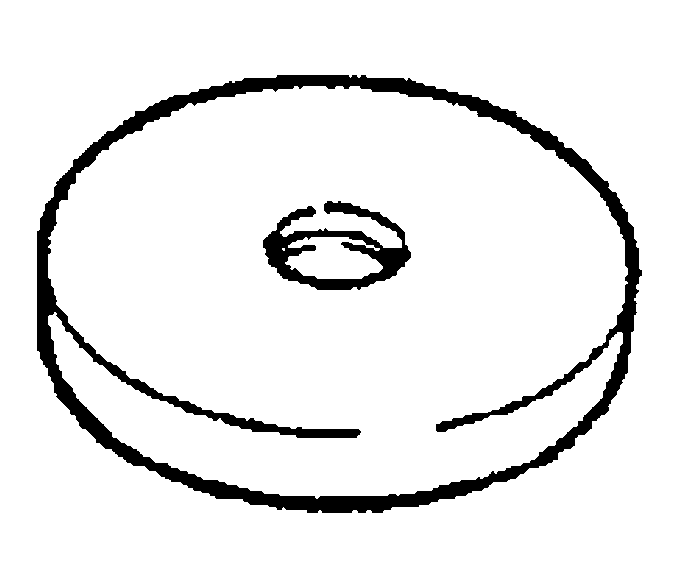

| 09223-15020 | Oil Seal & Bearing Replacer | DIFFERENTIAL CARRIER ASSY REAR | |

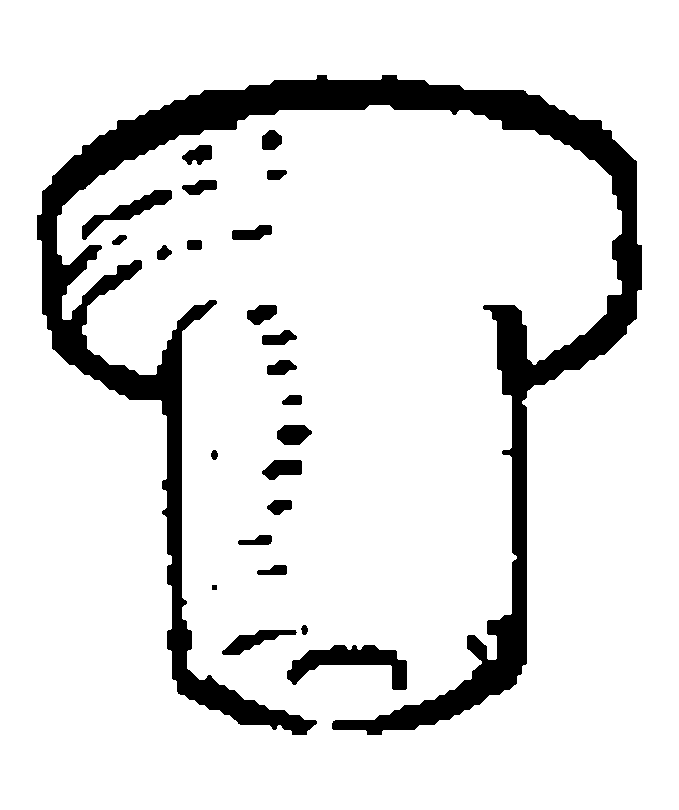

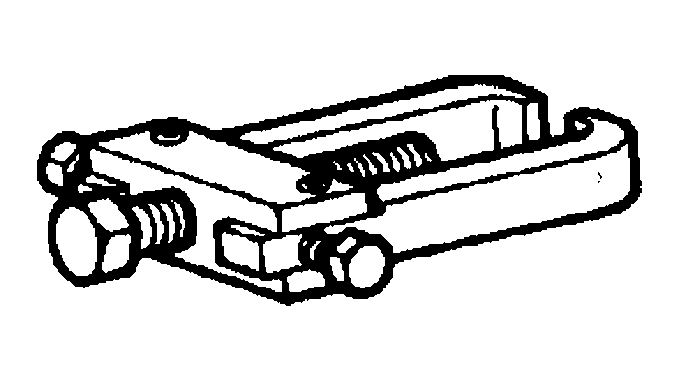

| 09226-10010 | Crankshaft Front & Rear Bearing Replacer | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
| 09308-00010 | Oil Seal Puller | REAR DIFFERENTIAL CARRIER OIL SEAL DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL (4WD) DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

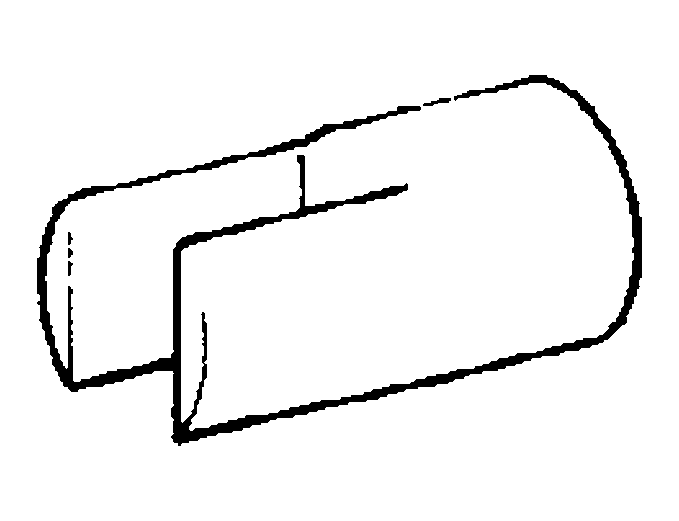

| 09308-10010 | Oil Seal Puller | DIFFERENTIAL CARRIER ASSY REAR REAR DIFFERENTIAL CARRIER OIL SEAL DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

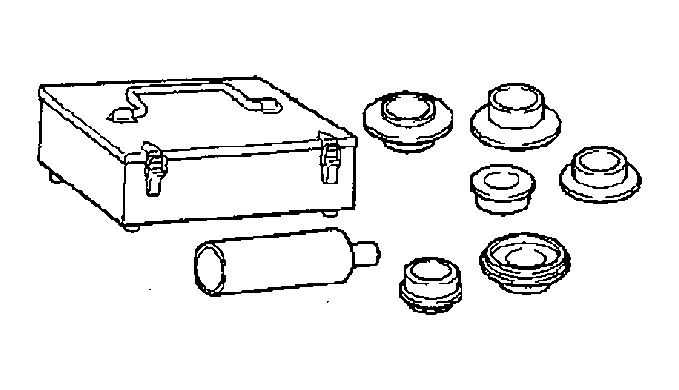

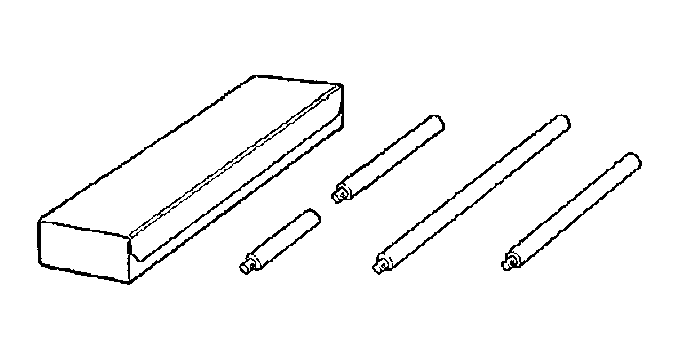

| 09316-60011 | Transmission & Transfer Bearing Replacer | DIFFERENTIAL CARRIER ASSY REAR REAR DIFFERENTIAL CARRIER OIL SEAL |
|

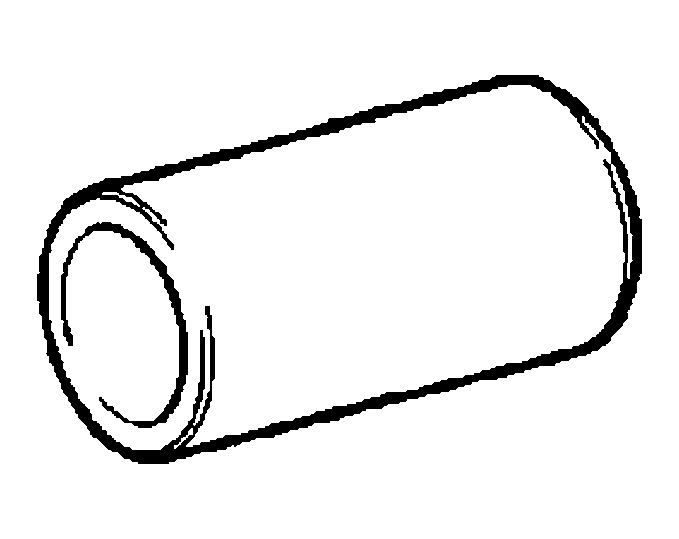

| (09316-00011) | Replacer Pipe | DIFFERENTIAL CARRIER ASSY REAR REAR DIFFERENTIAL CARRIER OIL SEAL |
|

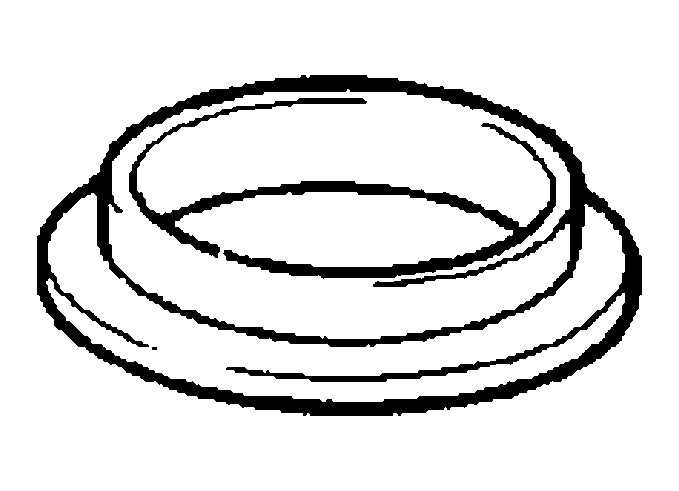

| (09316-00021) | Replacer "A" | DIFFERENTIAL CARRIER ASSY REAR REAR DIFFERENTIAL CARRIER OIL SEAL |
|

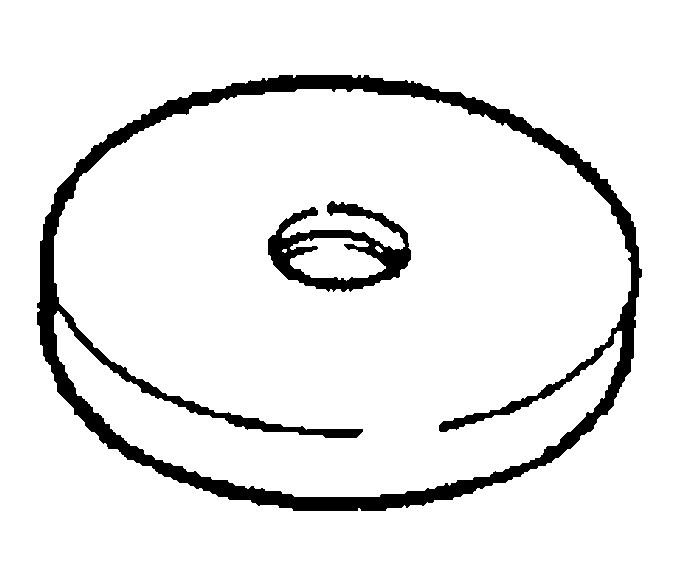

| (09316-00051) | Replacer "D" | DIFFERENTIAL CARRIER ASSY REAR | |

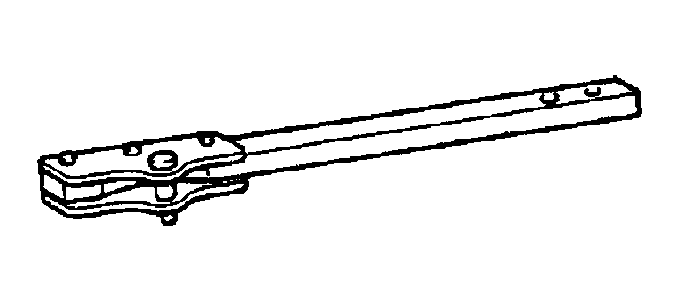

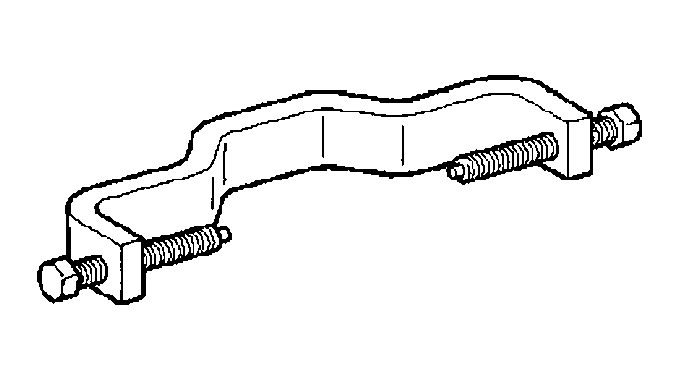

| 09330-00021 | Companion Flange Holding Tool | DIFFERENTIAL CARRIER ASSY REAR REAR DIFFERENTIAL CARRIER OIL SEAL DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|
| (09330-00030) | Pin | DIFFERENTIAL CARRIER ASSY REAR REAR DIFFERENTIAL CARRIER OIL SEAL DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

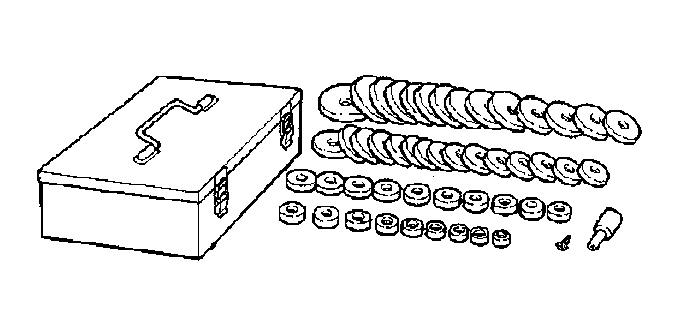

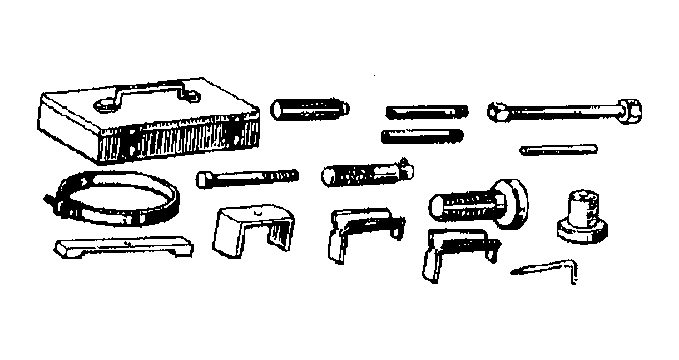

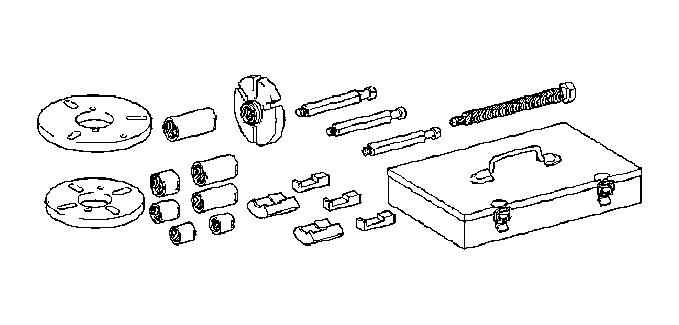

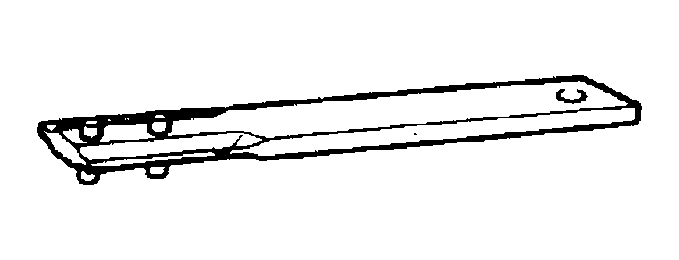

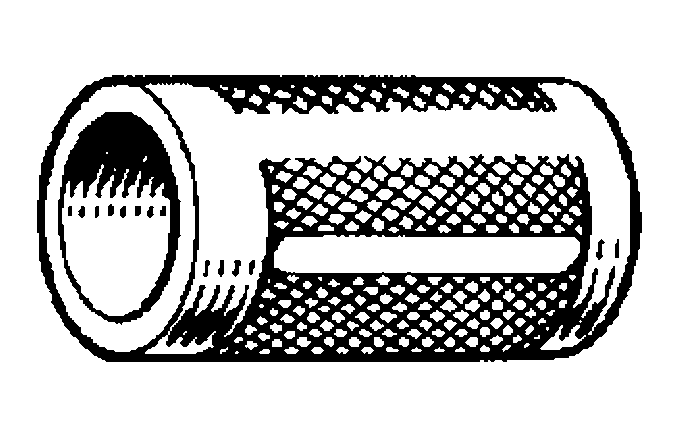

| 09350-20015 | TOYOTA Automatic Transmission Tool Set | DIFFERENTIAL CARRIER ASSY FRONT (1GR-FE (4WD)) | |
| (09369-20040) | Piston Spring Compressor Set | DIFFERENTIAL CARRIER ASSY FRONT (1GR-FE (4WD)) | |
| 09502-12010 | Differential Bearing Replacer | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
| 09504-00011 | Differential Side Bearing Adjusting Nut Wrench | DIFFERENTIAL CARRIER ASSY REAR | |
| 09506-30012 | Differential Drive Pinion Rear Bearing Cone Replacer | DIFFERENTIAL CARRIER ASSY REAR DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

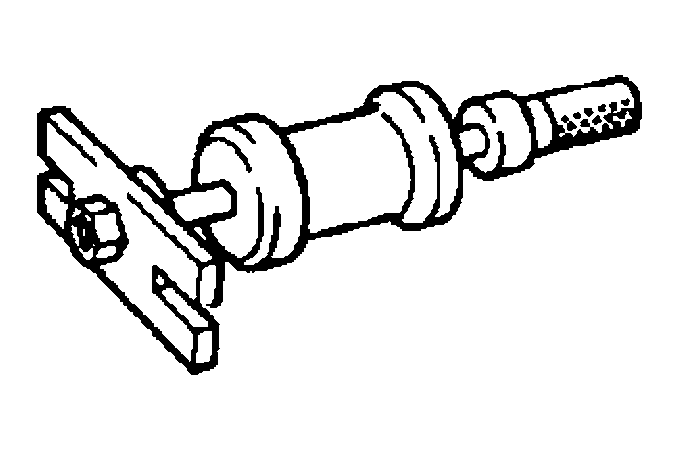

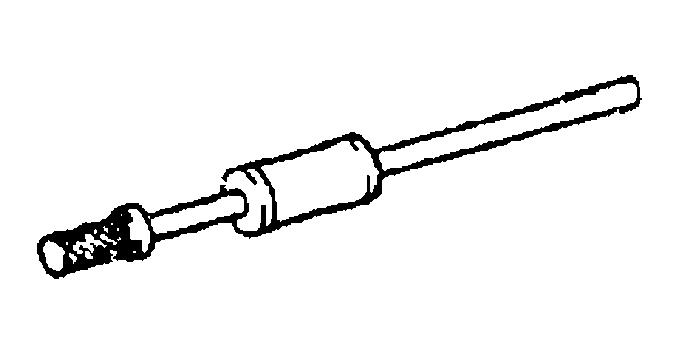

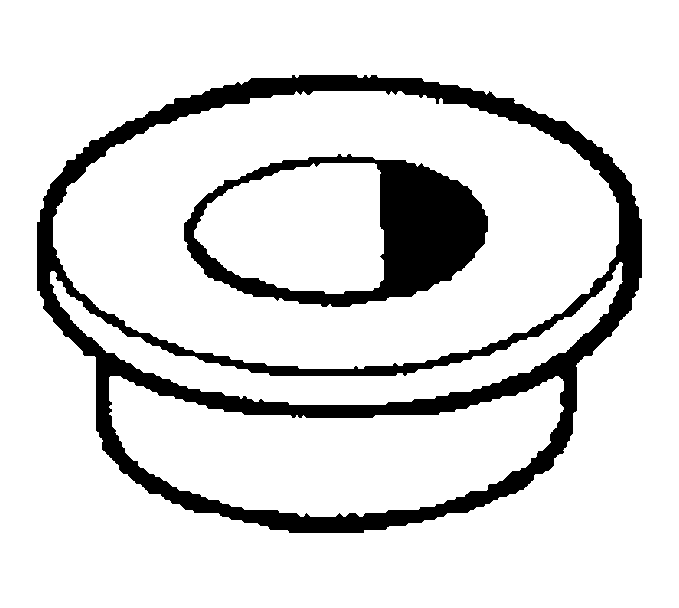

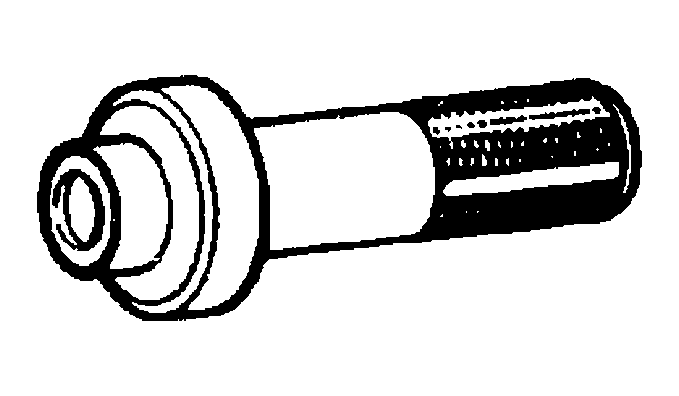

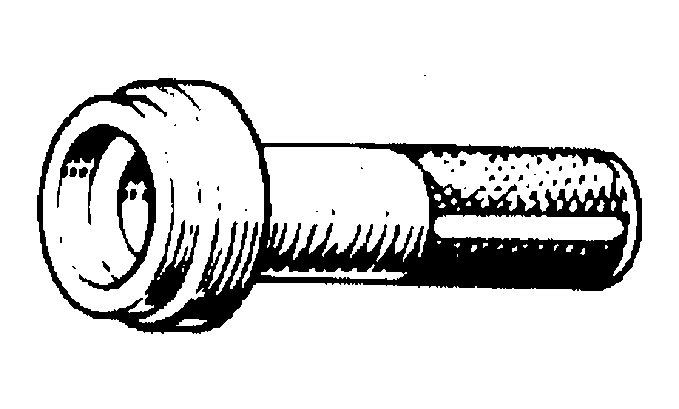

| 09520-01010 | Drive Shaft Remover Attachment | DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL (4WD) | |
| 09520-24010 | Differential Side Gear Shaft Puller | DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL (4WD) | |
| (09520-32040) | Shocker Set | DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL (4WD) | |
| 09554-22010 | Differential Oil Seal Replacer | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
| 09554-30011 | Differential Oil Seal Replacer | DIFFERENTIAL CARRIER ASSY REAR REAR DIFFERENTIAL CARRIER OIL SEAL DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL (4WD) |
|

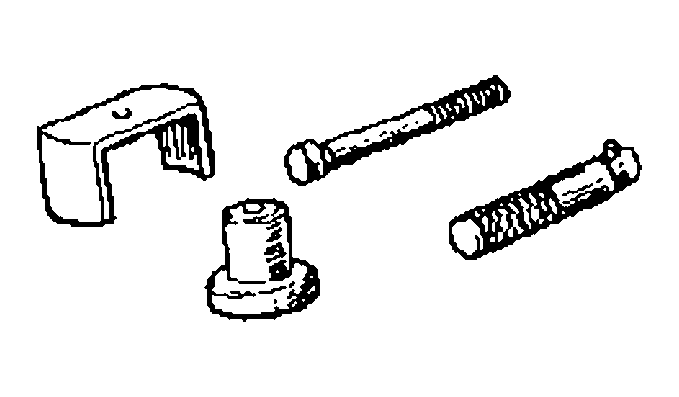

| 09556-22010 | Drive Pinion Front Bearing Remover | DIFFERENTIAL CARRIER ASSY REAR REAR DIFFERENTIAL CARRIER OIL SEAL DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

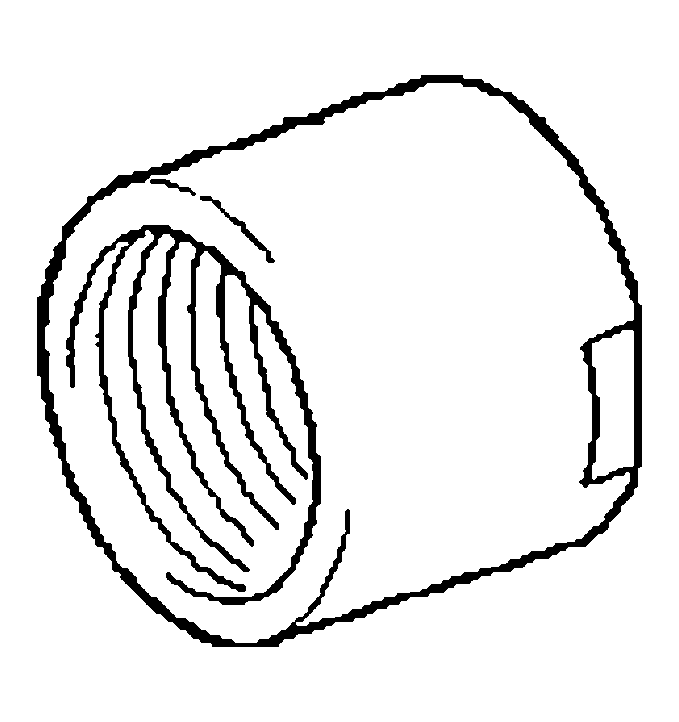

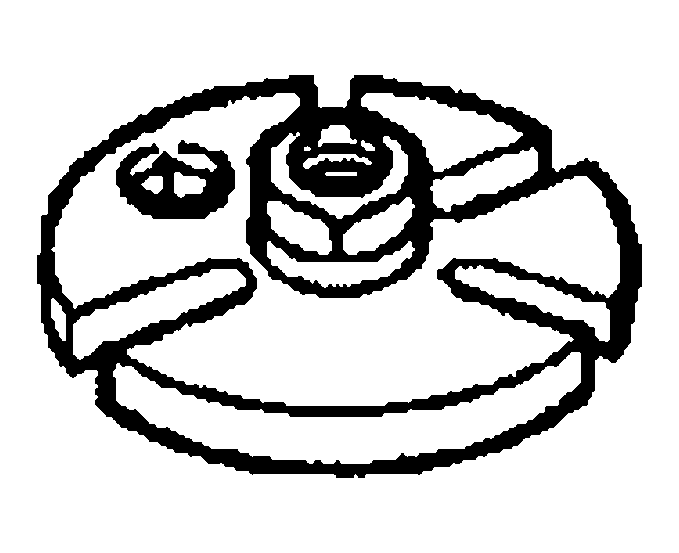

| 09564-32011 | Differential Preload Adaptor | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
| 09608-32010 | Steering Knuckle Oil Seal Replacer | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |

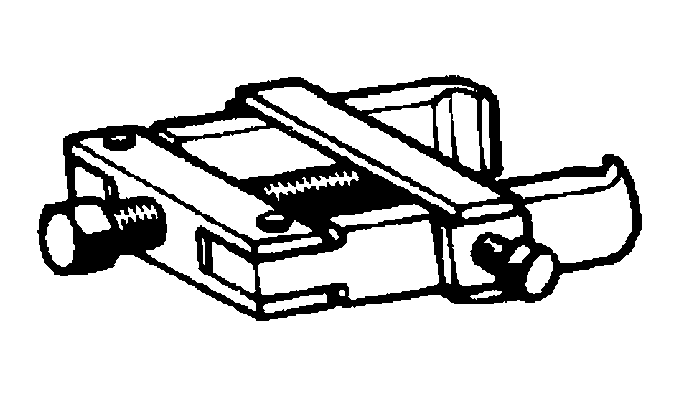

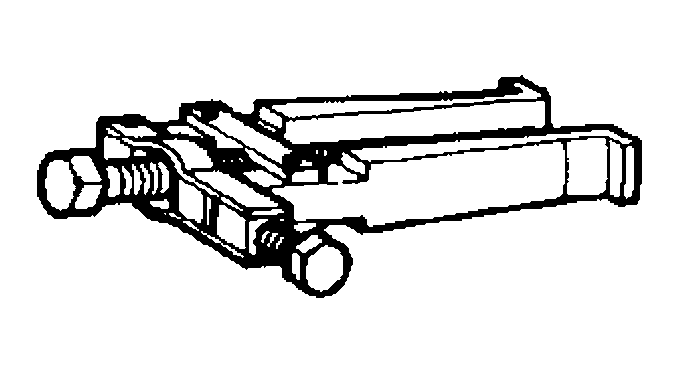

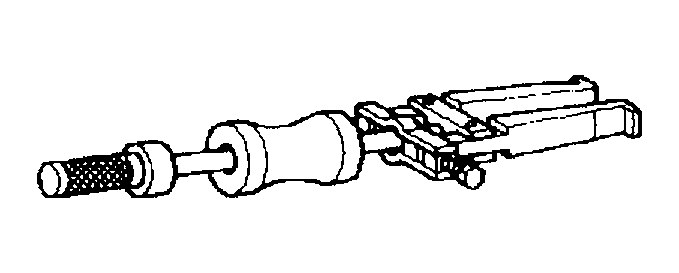

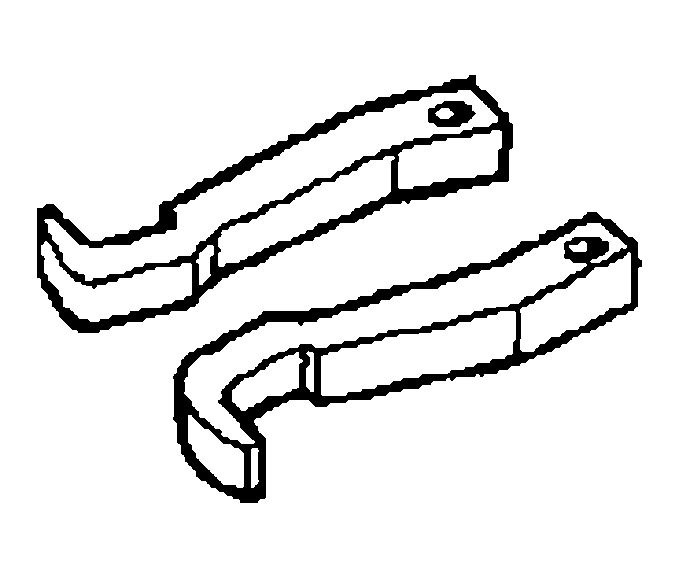

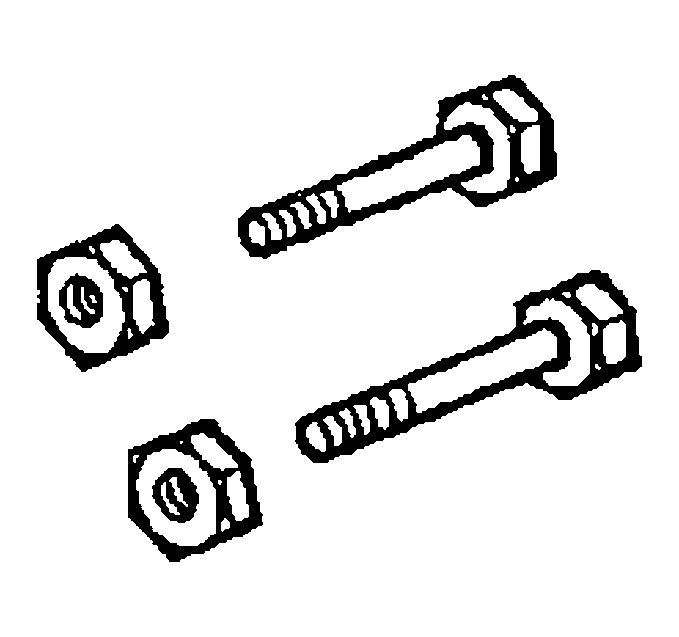

| 09612-65014 | Steering Worm Bearing Puller | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
| (09612-01020) | Claw "B" | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
| (09612-01050) | Hanger Pin with Nut | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
| 09628-62011 | Boll Joint Puller | DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL (4WD) DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

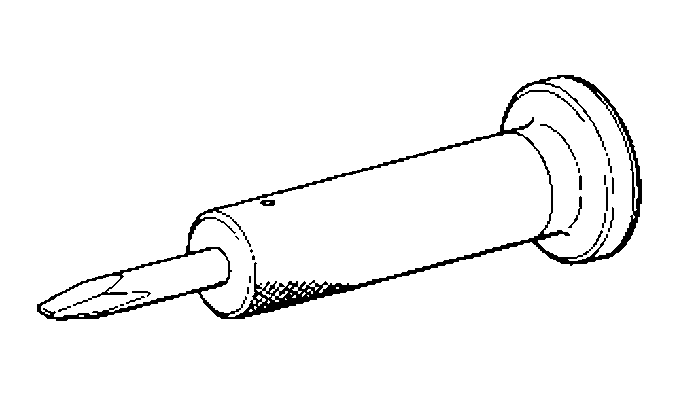

| 09636-20010 | Upper Ball Joint Dust Cover Replacer | DIFFERENTIAL CARRIER ASSY REAR | |
| 09930-00010 | Drive Shaft Nut Chisel | DIFFERENTIAL CARRIER ASSY REAR REAR DIFFERENTIAL CARRIER OIL SEAL DIFFERENTIAL SIDE GEAR SHAFT OIL SEAL (4WD) DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

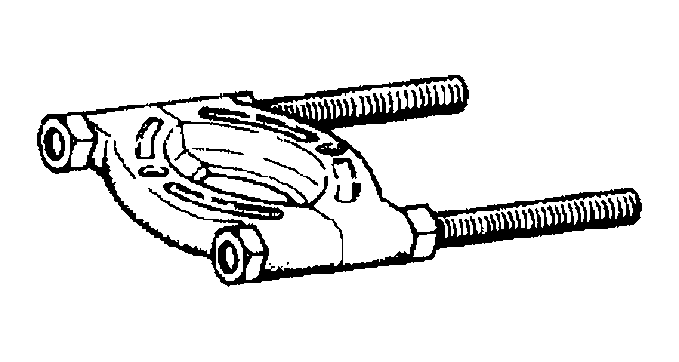

| 09950-00020 | Bearing Remover | DIFFERENTIAL CARRIER ASSY REAR DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

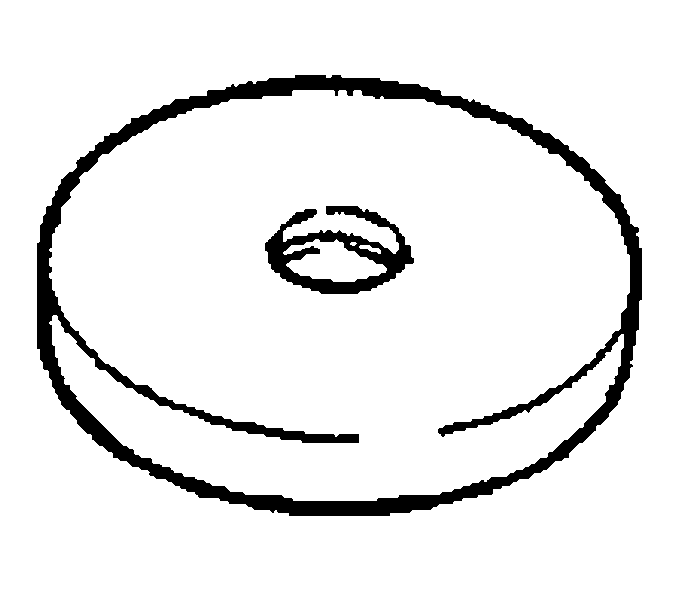

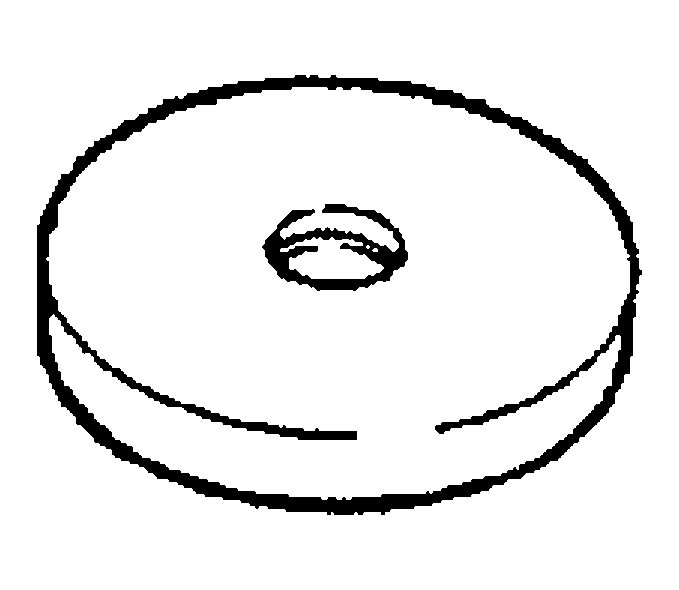

| (09951-00680) | Replacer 68 | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
| (09951-00890) | Replacer 89 | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
| 09950-30012 | Puller A Set | DIFFERENTIAL CARRIER ASSY REAR REAR DIFFERENTIAL CARRIER OIL SEAL DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

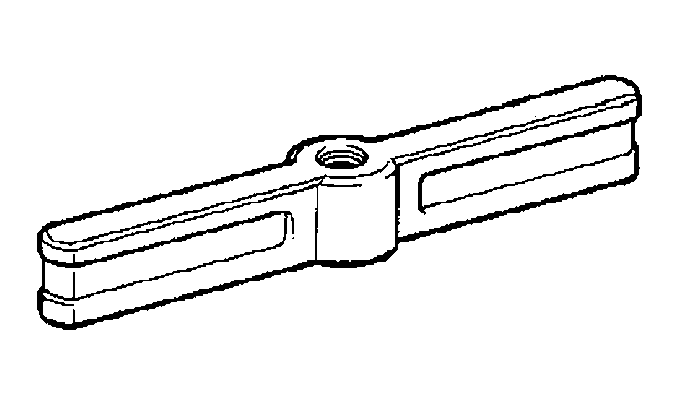

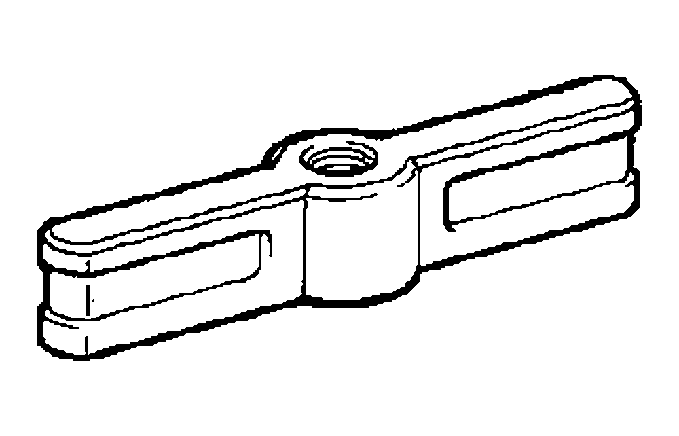

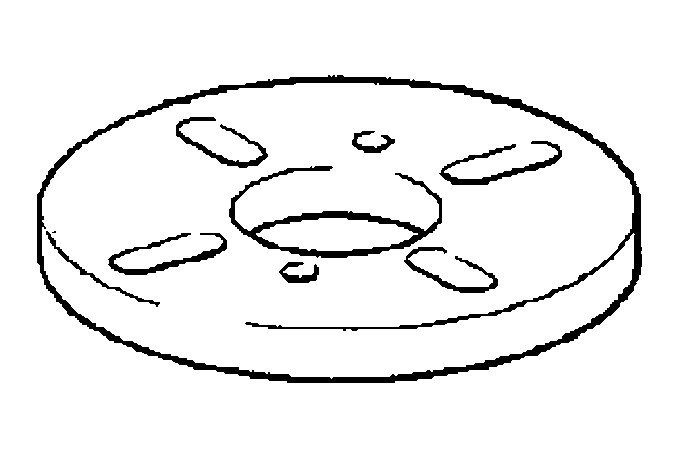

| (09951-03010) | Upper Plate | DIFFERENTIAL CARRIER ASSY REAR REAR DIFFERENTIAL CARRIER OIL SEAL DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

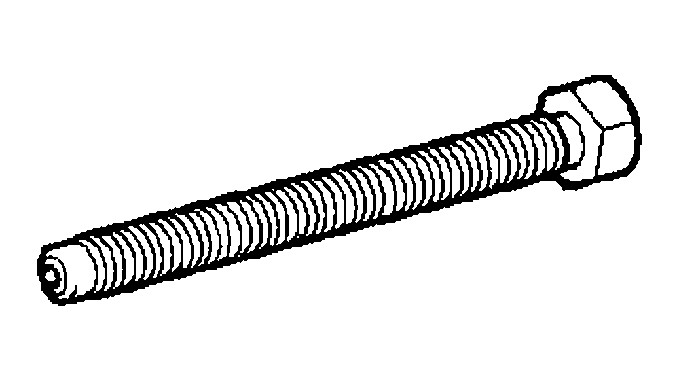

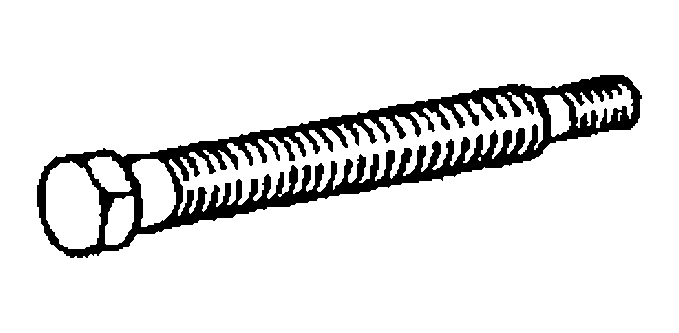

| (09953-03010) | Center Bolt | DIFFERENTIAL CARRIER ASSY REAR REAR DIFFERENTIAL CARRIER OIL SEAL DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|
| (09954-03010) | Arm | DIFFERENTIAL CARRIER ASSY REAR REAR DIFFERENTIAL CARRIER OIL SEAL DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|
| (09955-03030) | Lower Plate 130 | DIFFERENTIAL CARRIER ASSY REAR REAR DIFFERENTIAL CARRIER OIL SEAL DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

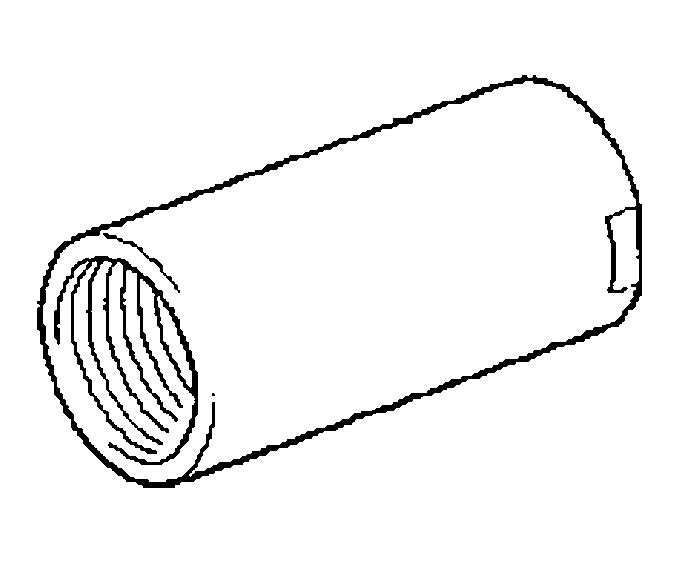

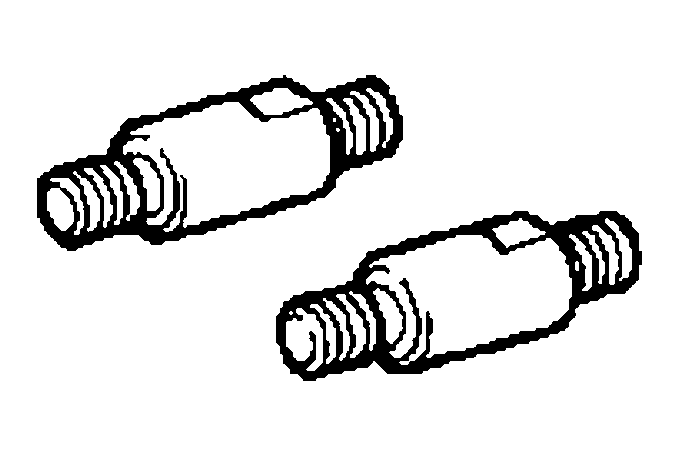

| (09956-03020) | Adapter 18 | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
| (09956-03030) | Adaptor 20 | DIFFERENTIAL CARRIER ASSY REAR REAR DIFFERENTIAL CARRIER OIL SEAL |
|

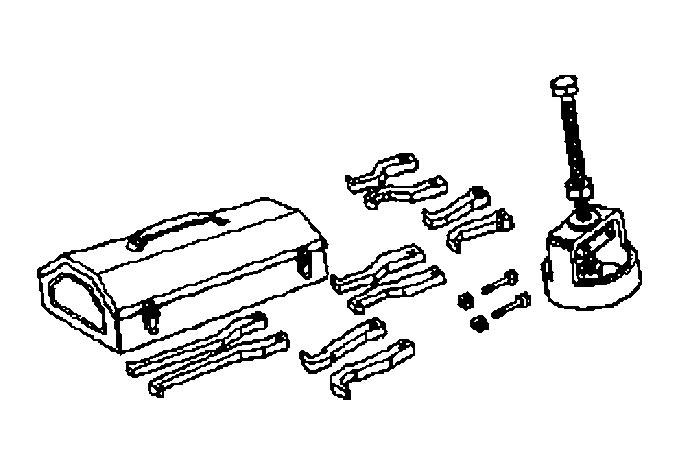

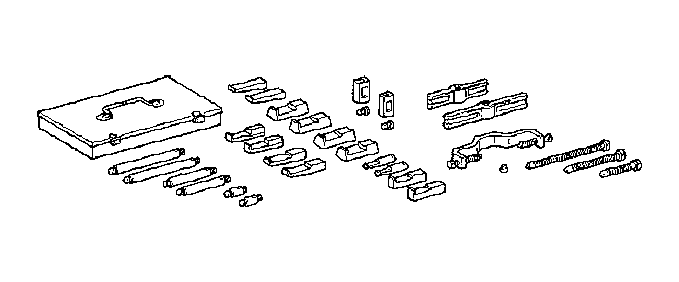

| 09950-40011 | Puller B Set | DIFFERENTIAL CARRIER ASSY REAR DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

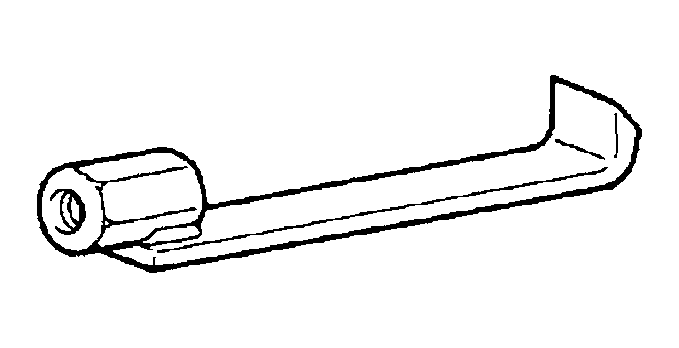

| (09951-04010) | Hanger 150 | DIFFERENTIAL CARRIER ASSY REAR | |
| (09951-04020) | Hanger 200 | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
| (09952-04010) | Slide Arm | DIFFERENTIAL CARRIER ASSY REAR DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

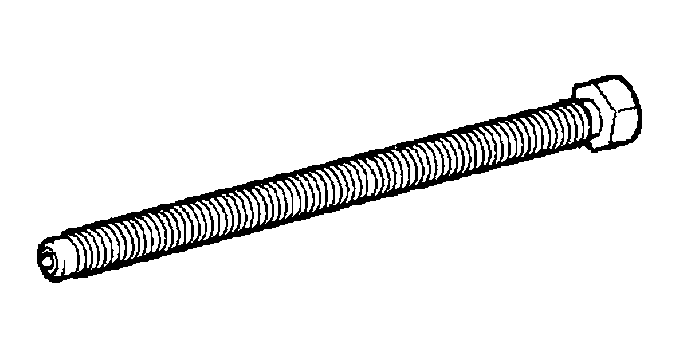

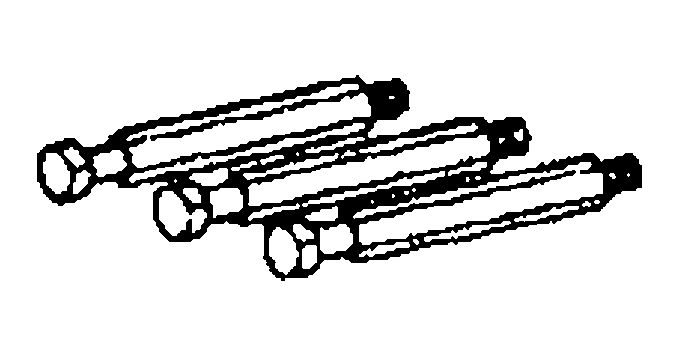

| (09953-04020) | Center Bolt 150 | DIFFERENTIAL CARRIER ASSY REAR | |
| (09953-04030) | Center Bolt 200 | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
| (09954-04010) | Arm 25 | DIFFERENTIAL CARRIER ASSY REAR DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

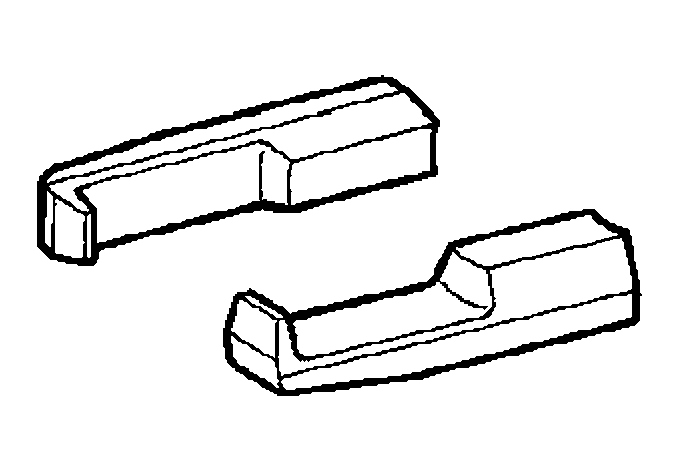

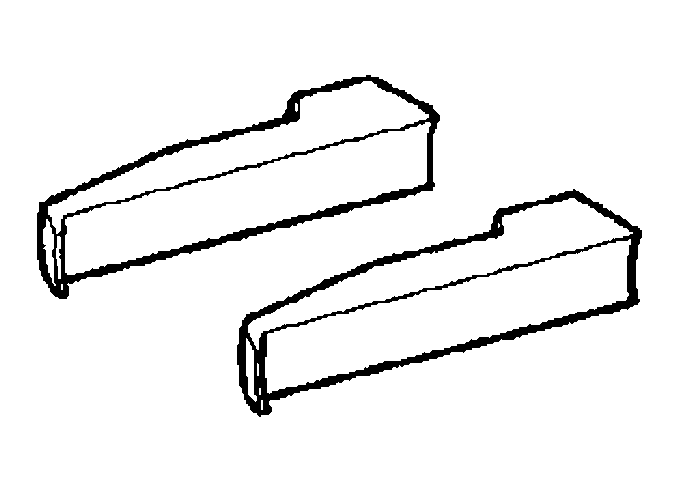

| (09955-04011) | Claw No.1 | DIFFERENTIAL CARRIER ASSY FRONT (1GR-FE (4WD)) | |
| (09955-04061) | Claw No.6 | DIFFERENTIAL CARRIER ASSY REAR DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

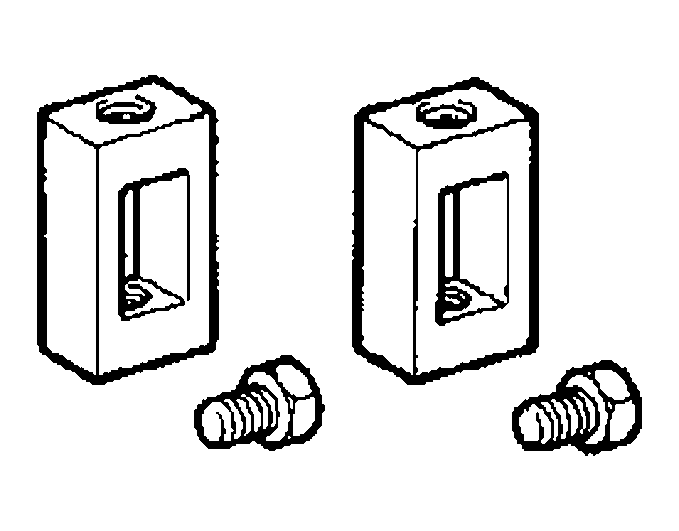

| (09957-04010) | Attachment | DIFFERENTIAL CARRIER ASSY REAR DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|
| (09958-04011) | Holder | DIFFERENTIAL CARRIER ASSY REAR DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

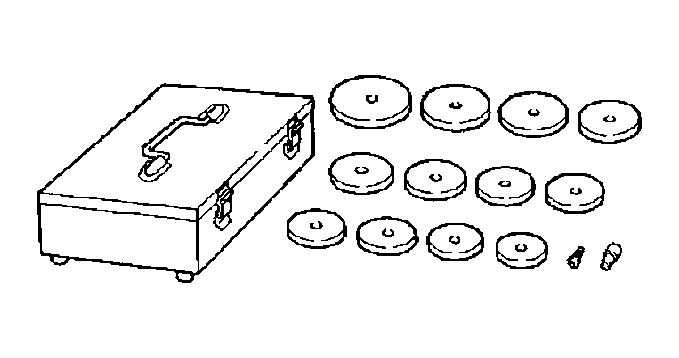

| 09950-60010 | Replacer Set | DIFFERENTIAL CARRIER ASSY REAR DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

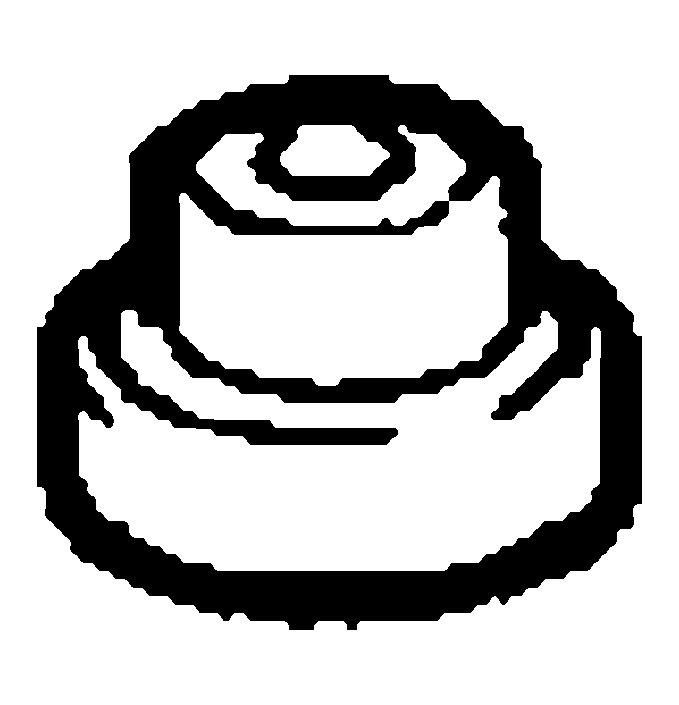

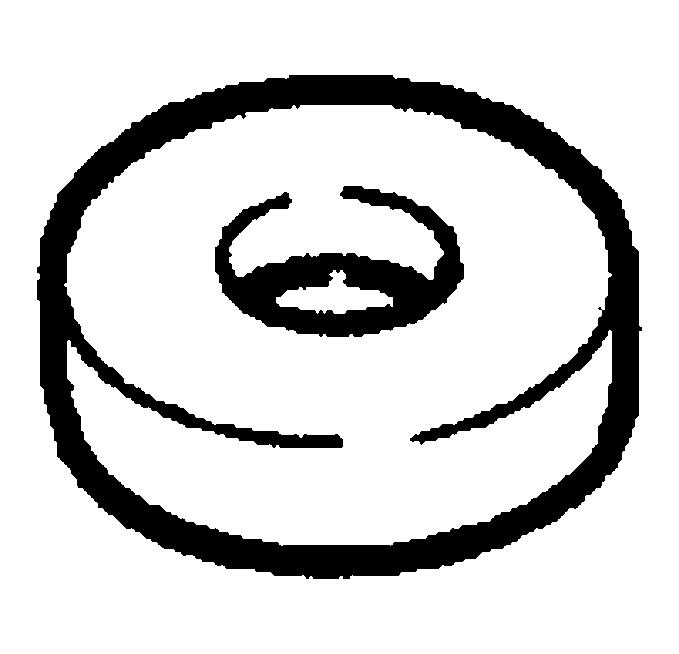

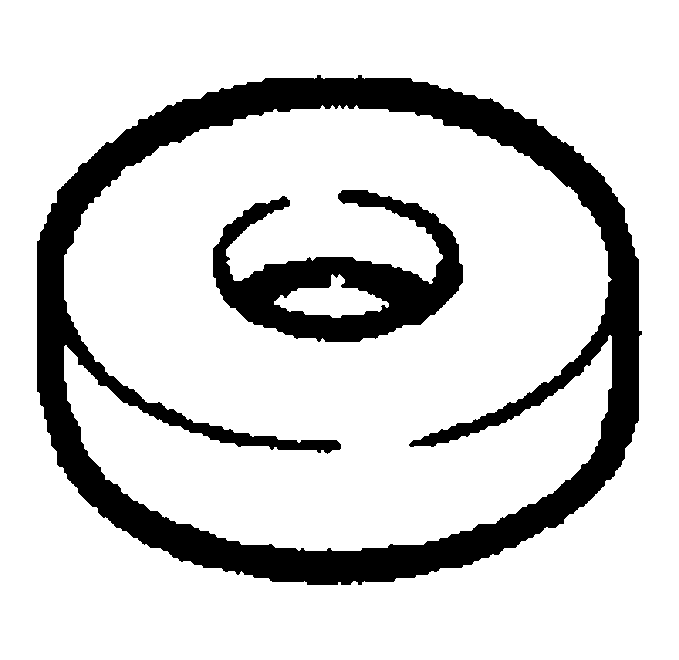

| (09951-00380) | Replacer 38 | DIFFERENTIAL CARRIER ASSY REAR | |
| (09951-00390) | Replacer 39 | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
| (09951-00480) | Replacer 48 | DIFFERENTIAL CARRIER ASSY REAR | |
| (09951-00550) | Replacer 55 | DIFFERENTIAL CARRIER ASSY REAR | |
| 09950-60020 | Replacer Set No.2 | DIFFERENTIAL CARRIER ASSY REAR DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

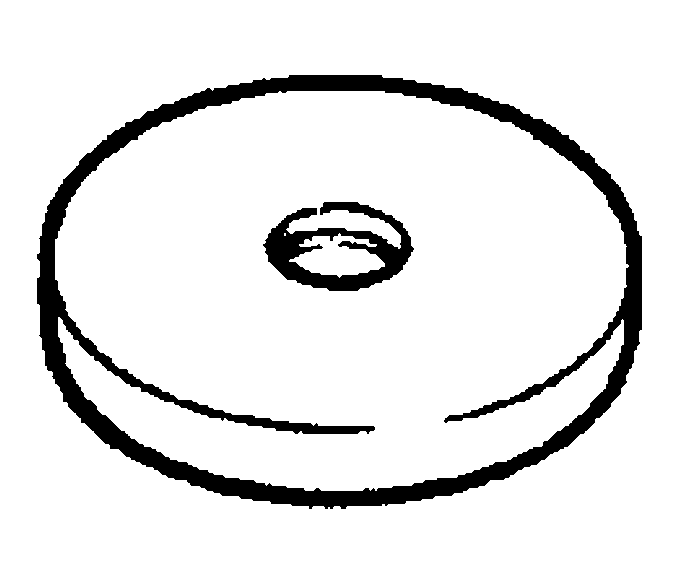

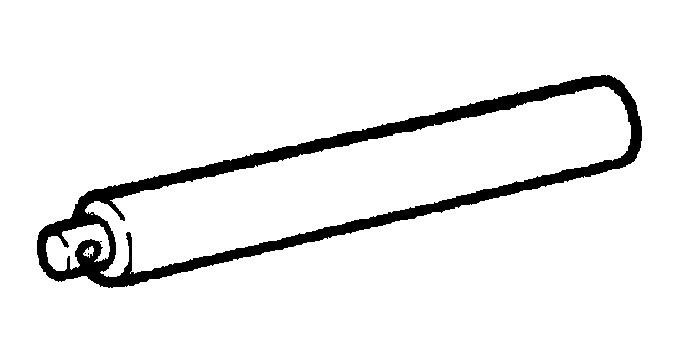

| (09951-00680) | Replacer 68 | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
| (09951-00730) | Replacer 73 | DIFFERENTIAL CARRIER ASSY REAR | |
| (09951-00810) | Replacer 81 | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
| 09950-70010 | Handle Set | DIFFERENTIAL CARRIER ASSY REAR DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|
| (09951-07150) | Handle 150 | DIFFERENTIAL CARRIER ASSY REAR DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
Recommended Tools
RECOMMENDED TOOLS DESCRIPTION (DIFFERENTIAL)

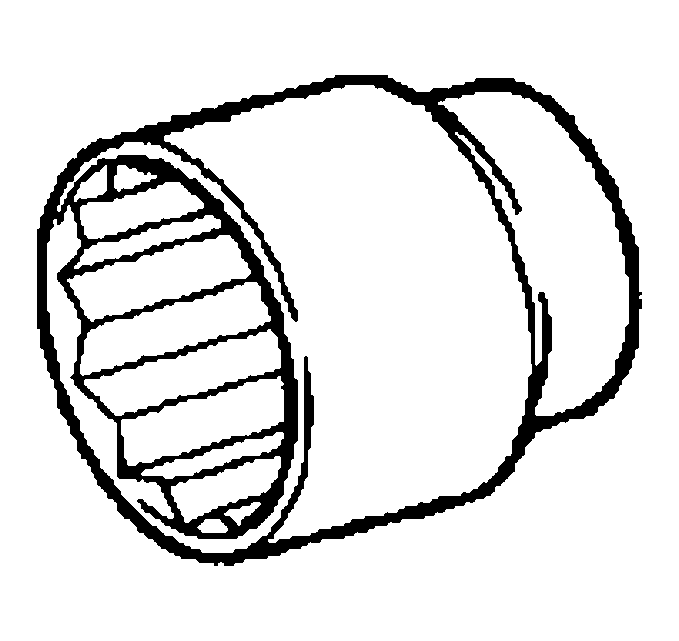

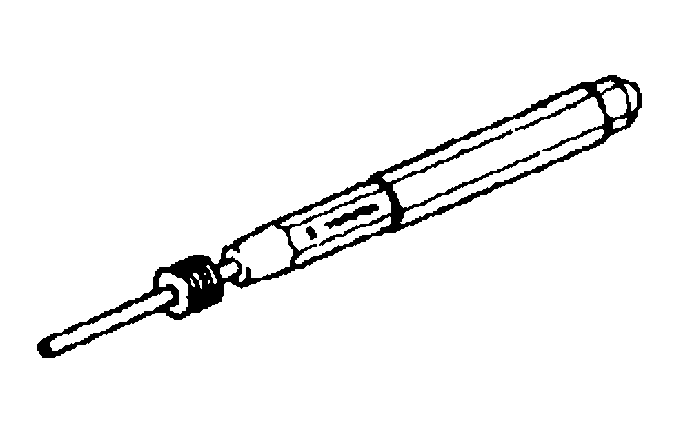

| 09011-12301 | Socket Wrench 30 mm | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |
| 09031-00030 | Pin Punch | DIFFERENTIAL CARRIER ASSY FRONT (4WD) | |

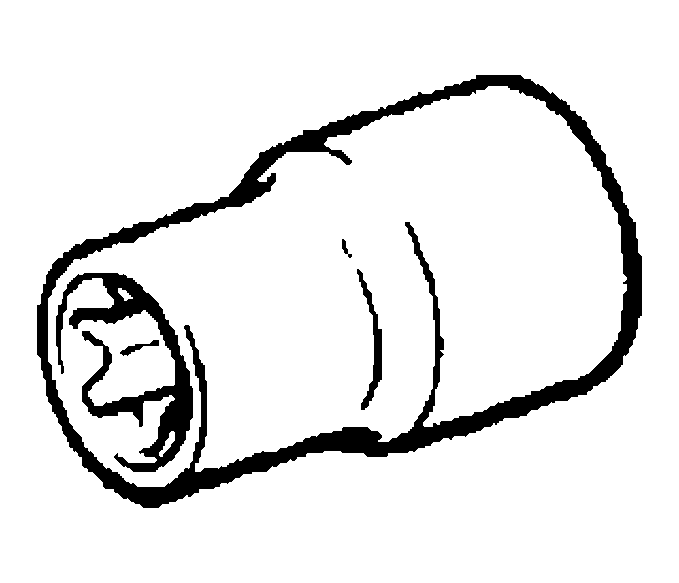

| 09044-00020 | Torx Socket E10 | DIFFERENTIAL CARRIER ASSY REAR | |

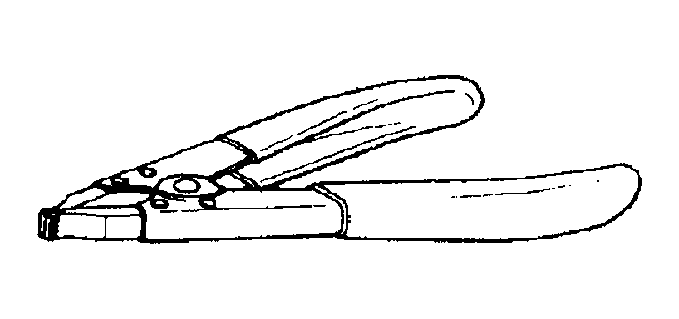

| 09905-00012 | Snap Ring No.1 Expander | DIFFERENTIAL CARRIER ASSY REAR DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
|

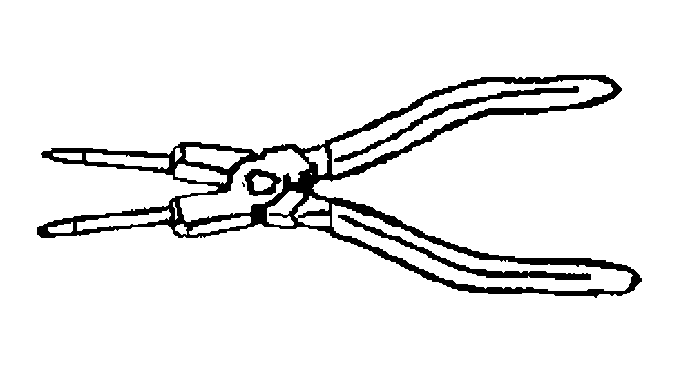

| 09905-00013 | Snap Ring Pliers | DIFFERENTIAL CARRIER ASSY FRONT (4WD) |
Torx is a registered trademark of Textron Inc.
Equipment
EQUIPMENTS (DIFFERENTIAL)
| Dial indicator | - |
| Micrometer | - |
| Torque wrench | - |
| Vernier calipers | - |
| Press | - |
Lubricant
LUBRICANT CAPACITY AND CLASSIFICATION (DIFFERENTIAL)
| Item | Capacity | Classification |
|---|---|---|
| Front differential oil | 1.40 +/- 0.05 liters (1.48 +/- 0.05 US qts, 1.23 +/- 0.04 lmp.qts) |
Hypoid gear oil APL GL-5 Above - 18°C (0°F): SAE 90 Below - 18°C (0°F): SAE 80W or 80W - 90 |
| Rear differential oil | 3.05 +/- 0.05 liters (3.22 +/- 0.05 US qts, 2.68 +/- 0.04 lmp.qts) |
Hypoid gear oil APL GL-5 Above - 18°C (0°F): SAE 90 Below - 18°C (0°F): SAE 80W or 80W - 90 |
