Section 29 (Preparation): Diagnostics: Preparation
WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
SST
SPECIAL SERVICE TOOLS DESCRIPTION

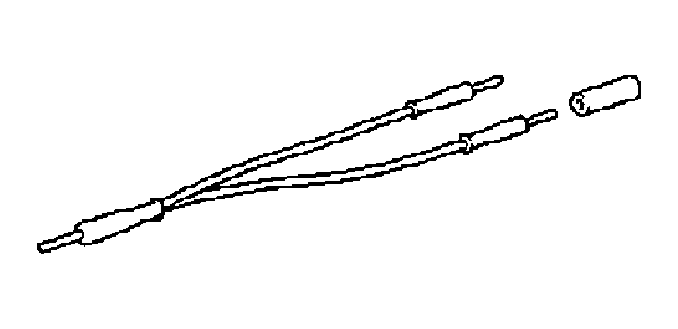

| 09843-18040 | Diagnosis Check Wire No. 2 | REAR AIR SUSPENSION SYSTEM SUPPLEMENTAL RESTRAINT SYSTEM (From August, 2004) AIR CONDITIONING SYSTEM (From August, 2004) |
Recommended Tools
RECOMMENDED TOOLS DESCRIPTION

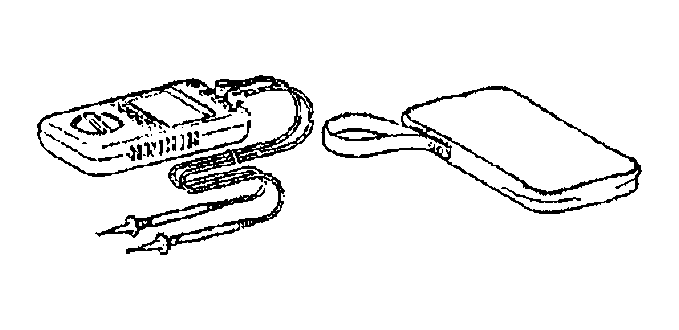

| 09082-00040 | TOYOTA Electrical Tester | LIGHTING SYSTEM SFI SYSTEM (1GR-FE) (From August, 2004) SFI SYSTEM (2UZ-FE) (From November, 2004) ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION [ECT] (A750E/A750F (1GR-FE)) ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION [ECT] (A750E/A750F (2UZ-FE)) COMBINATION METER (From August, 2003) |
|

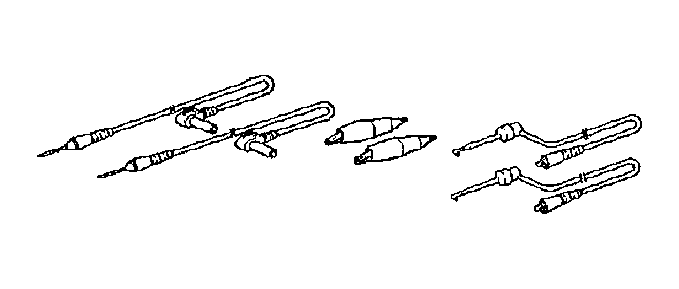

| (09083-00150) | Test Lead Set | LIGHTING SYSTEM CRUISE CONTROL SYSTEM REAR AIR SUSPENSION SYSTEM ENGINE IMMOBILIZER SYSTEM KEY REMINDER WARNING SYSTEM POWER DOOR LOCK CONTROL SYSTEM WIRELESS DOOR LOCK CONTROL SYSTEM POWER WINDOW CONTROL SYSTEM SFI SYSTEM (1GR-FE) (From August, 2004) SFI SYSTEM (2UZ-FE) (From November, 2004) ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION [ECT] (A750E/A750F (1GR-FE)) ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION [ECT] (A750E/A750F (2UZ-FE)) COMBINATION METER (From August, 2003) AUDIO SYSTEM (From August, 2003) AIR CONDITIONING SYSTEM (From August, 2004) |
|
| (09083-00150) | Test Lead Set | LIGHTING SYSTEM CRUISE CONTROL SYSTEM REAR AIR SUSPENSION SYSTEM ENGINE IMMOBILIZER SYSTEM KEY REMINDER WARNING SYSTEM POWER DOOR LOCK CONTROL SYSTEM WIRELESS DOOR LOCK CONTROL SYSTEM POWER WINDOW CONTROL SYSTEM SFI SYSTEM (1GR-FE) (From August, 2004) SFI SYSTEM (2UZ-FE) (From November, 2004) ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION [ECT] (A750E/A750F (1GR-FE)) ELECTRONIC CONTROLLED AUTOMATIC TRANSMISSION [ECT] (A750E/A750F (2UZ-FE)) COMBINATION METER (From August, 2003) AUDIO SYSTEM (From August, 2003) AIR CONDITIONING SYSTEM (From August, 2004) |
