Automatic Transmission/Trans: Preparation
WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.
SST
SPECIAL SERVICE TOOLS DESCRIPTION (AUTOMATIC TRANSMISSION/TRANSAXLE)

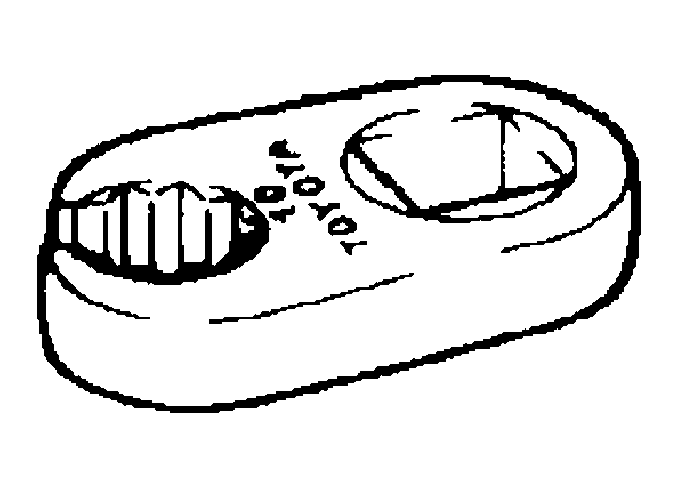

| 09023-12701 | Union Nut Wrench 17 mm | AUTOMATIC TRANSMISSION ASSY (A750E (1GR-FE)) AUTOMATIC TRANSMISSION ASSY (A750E (2UZ-FE)) AUTOMATIC TRANSMISSION ASSY (A750F (1GR-FE)) AUTOMATIC TRANSMISSION ASSY (A750F (2UZ-FE)) |
|

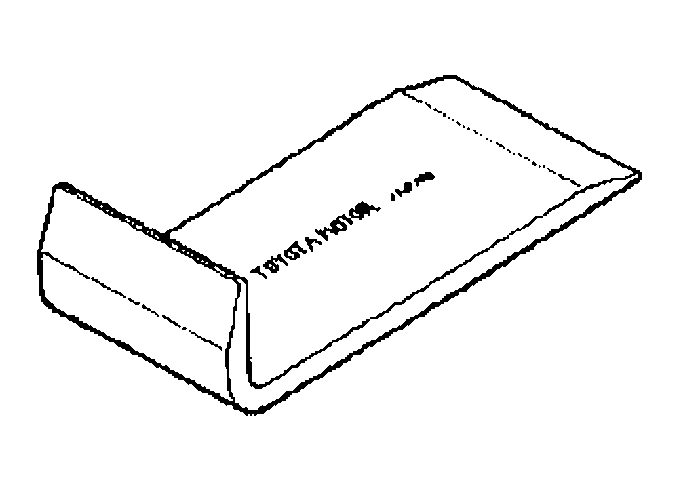

| 09032-00100 | Oil Pan Seal Cutter | TRANSMISSION VALVE BODY ASSY (A750E/A750F) (From August, 2003) TRANSMISSION WIRE (A750E/A750F) (From August, 2003) |
|

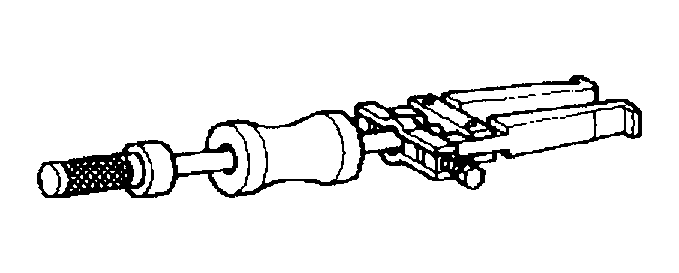

| 09308-00010 | Oil Seal Puller | AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL (A750E) (From August, 2003) | |

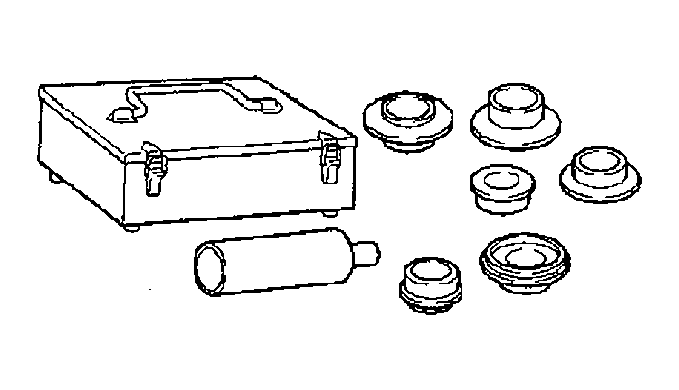

| 09316-60011 | Transmission & Transfer Bearing Replacer | AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL (A750E) (From August, 2003) | |

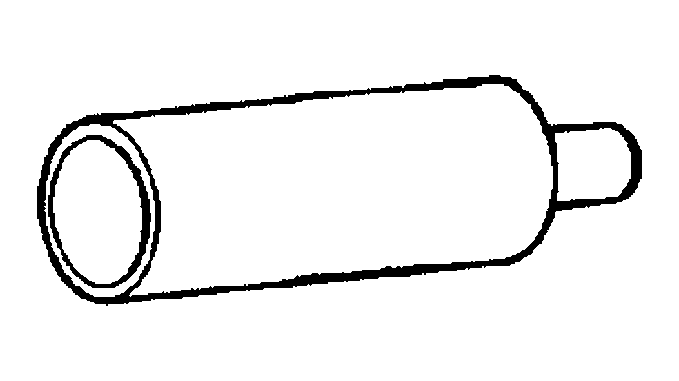

| (09316-00011) | Replacer Pipe | AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL (A750E) (From August, 2003) | |

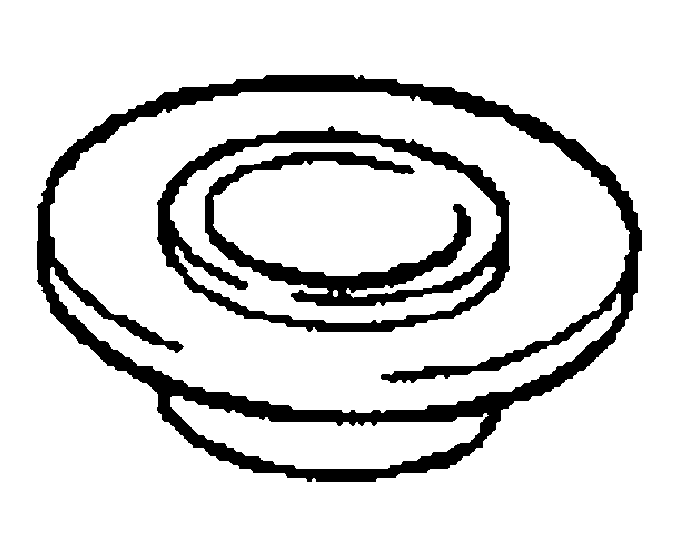

| (09316-00051) | Replacer "D" | AUTOMATIC TRANSMISSION EXTENSION HOUSING OIL SEAL (A750E) (From August, 2003) | |

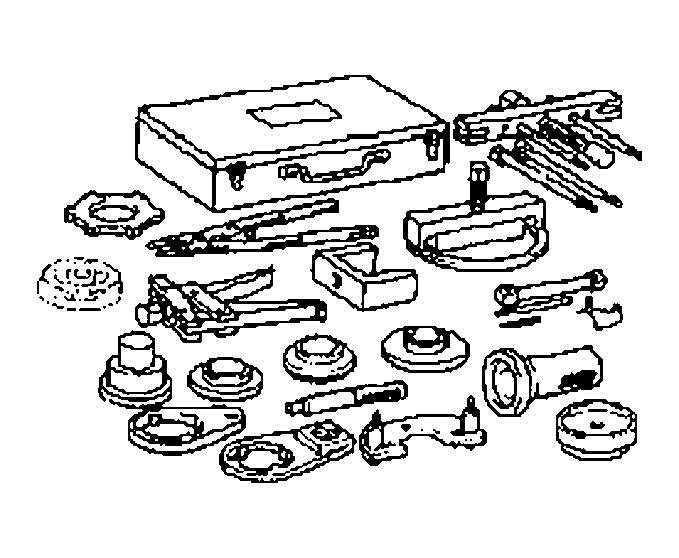

| 09350-32014 | TOYOTA Automatic Transmission Tool Set | AUTOMATIC TRANSMISSION ASSY (A750E (1GR-FE)) AUTOMATIC TRANSMISSION ASSY (A750E (2UZ-FE)) TORQUE CONVERTER CLUTCH AND DRIVE PLATE (A750E/A750F) (From August, 2003) AUTOMATIC TRANSMISSION ASSY (A750F (1GR-FE)) AUTOMATIC TRANSMISSION ASSY (A750F (2UZ-FE)) |
|

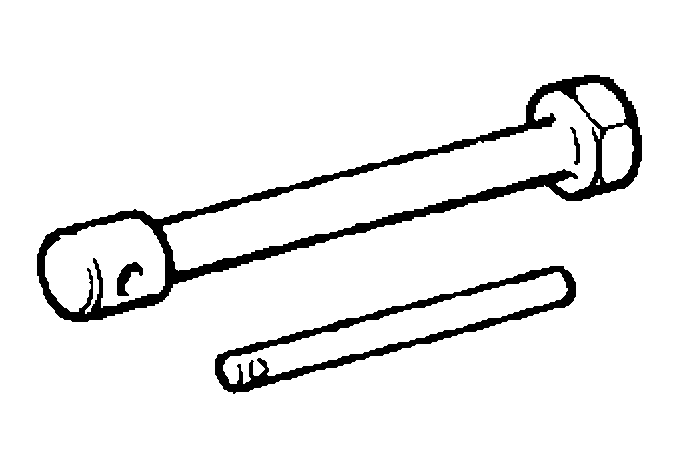

| (09351-32010) | One-way Clutch Test Tool | AUTOMATIC TRANSMISSION ASSY (A750E (1GR-FE)) AUTOMATIC TRANSMISSION ASSY (A750E (2UZ-FE)) AUTOMATIC TRANSMISSION ASSY (A750F (1GR-FE)) AUTOMATIC TRANSMISSION ASSY (A750F (2UZ-FE)) |
|

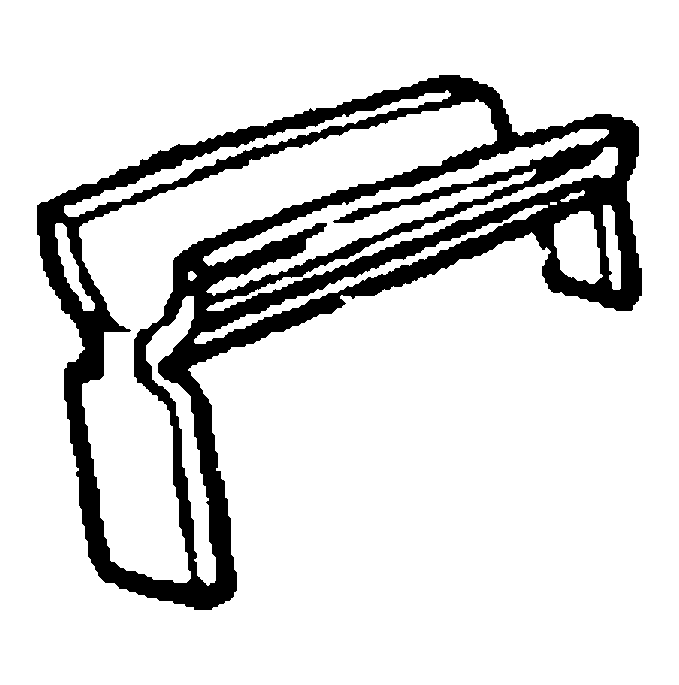

| (09351-32020) | Stator Stopper | AUTOMATIC TRANSMISSION ASSY (A750E (1GR-FE)) AUTOMATIC TRANSMISSION ASSY (A750E (2UZ-FE)) TORQUE CONVERTER CLUTCH AND DRIVE PLATE (A750E/A750F) (From August, 2003) AUTOMATIC TRANSMISSION ASSY (A750F (1GR-FE)) AUTOMATIC TRANSMISSION ASSY (A750F (2UZ-FE)) |
|

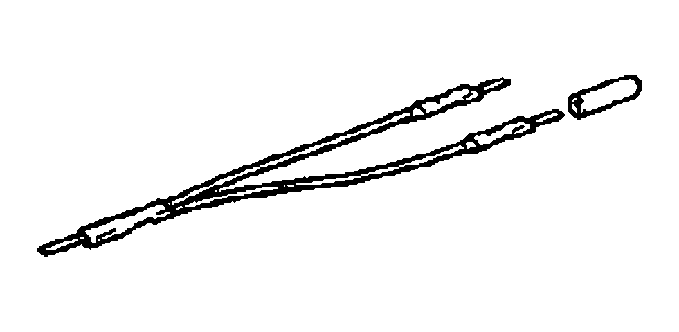

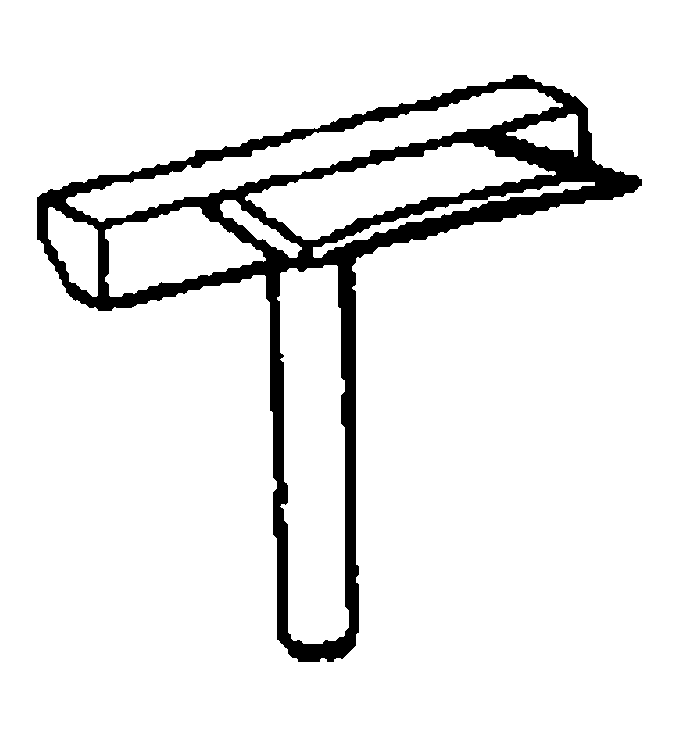

| 09843-18020 | Diagnosis Check Wire | AUTOMATIC TRANSMISSION FLUID (A750E/A750F) (From August, 2003) |
Recommended Tools
RECOMMENDED TOOLS DESCRIPTION (AUTOMATIC TRANSMISSION/TRANSAXLE)

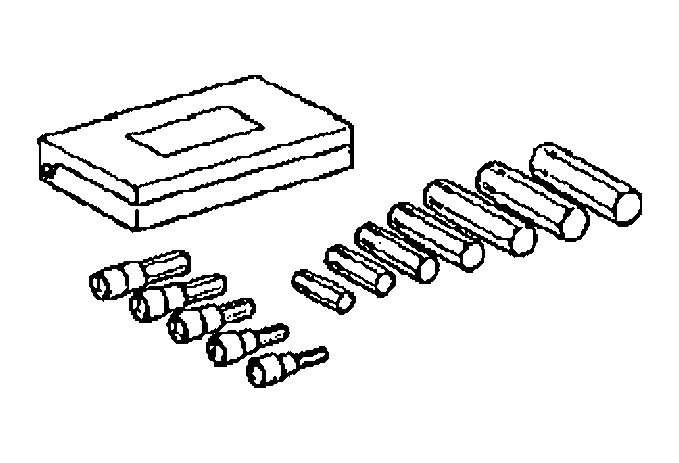

| 09040-00011 | Hexagon Wrench Set | TRANSMISSION VALVE BODY ASSY (A750E/A750F) (From August, 2003) TRANSMISSION WIRE (A750E/A750F) (From August, 2003) |
|

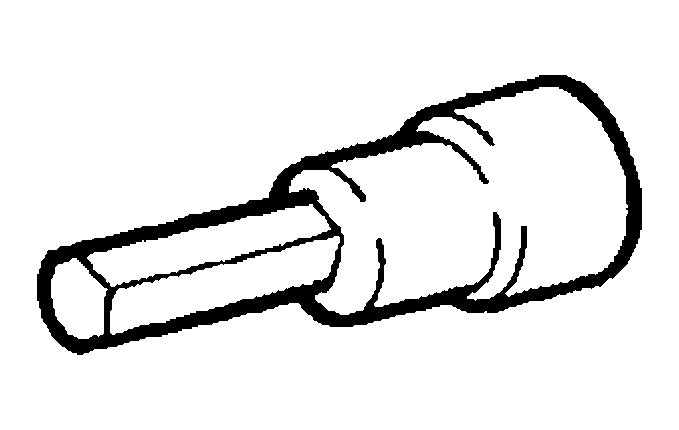

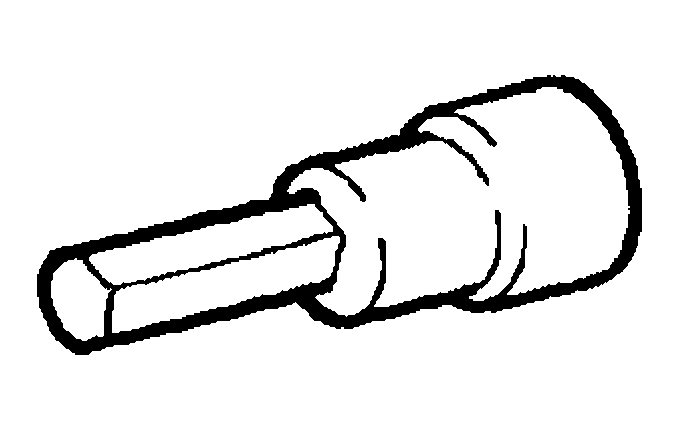

| (09043-20100) | Socket Hexagon Wrench 10 | TRANSMISSION VALVE BODY ASSY (A750E/A750F) (From August, 2003) TRANSMISSION WIRE (A750E/A750F) (From August, 2003) |
|
| 09070-20010 | Molding Remover | FLOOR SHIFT ASSY TRANSMISSION CONTROL CABLE ASSY | |
| (09043-20060) | Socket Hexagon Wrench 6 | AUTOMATIC TRANSMISSION FLUID (A750E/A750F) (From August, 2003) |
Equipment
EQUIPMENTS (AUTOMATIC TRANSMISSION/TRANSAXLE)
| Straight edge | Torque converter |
| Vernier calipers | Torque converter |
| Dial indicator or dial indicator with magnetic base | Drive plate |
| Punch | - |
| Torque wrench | - |
Lubricant
LUBRICANT CAPACITY AND CLASSIFICATION (AUTOMATIC TRANSMISSION/TRANSAXLE)
| Item | Capacity | Classification |
|---|---|---|
| Automatic transmission fluid (A750E, A750F) | Refer to ADJUSTMENT | TOYOTA GENUINE ATF WS |
