Section 11 (Air Conditioning System - Diagnostics): Location
WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

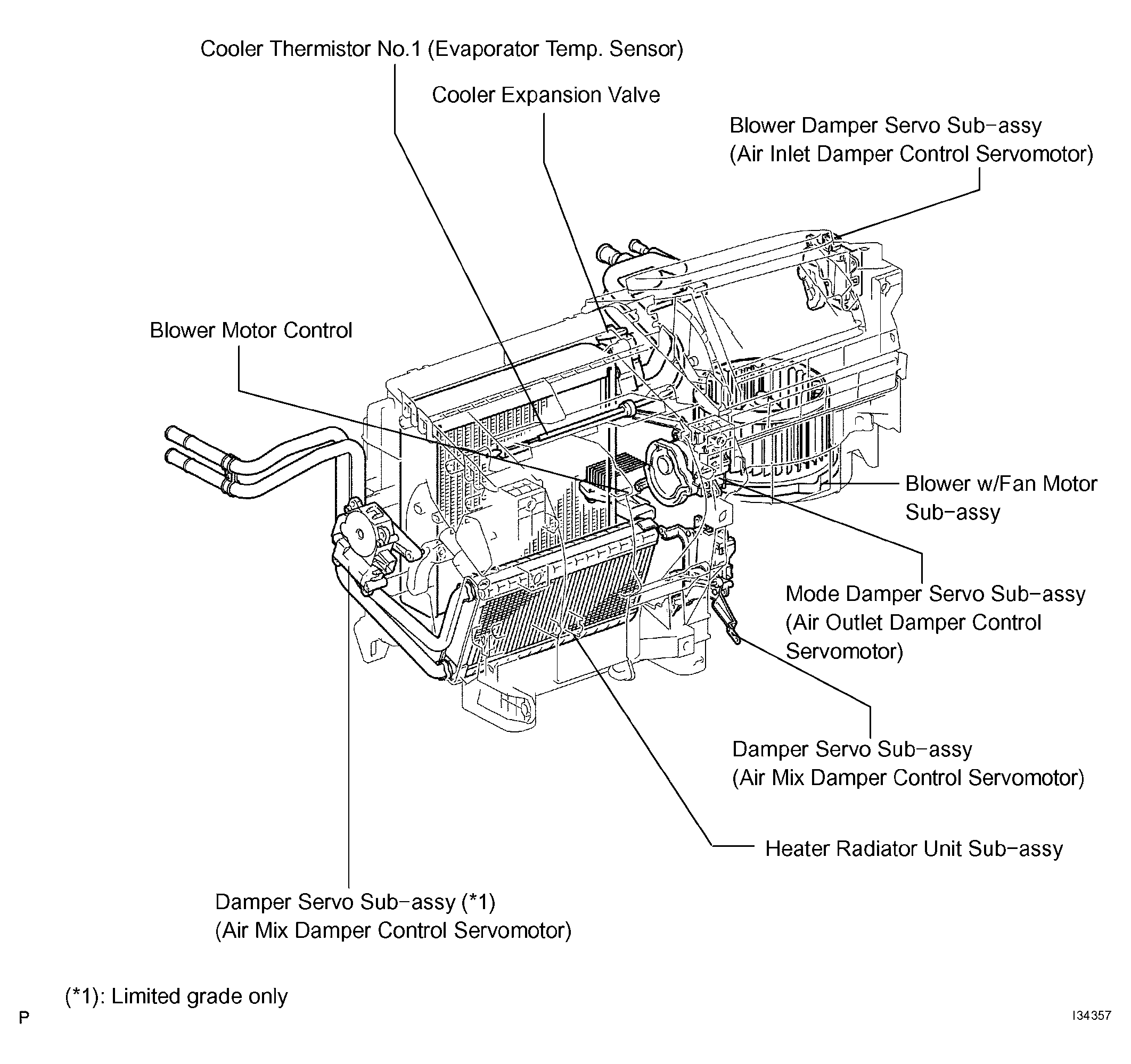

Fig 1: Identifying Air Conditioning System Components Location (1 Of 2)
