Circuit Inspection

WARNING: This page is about a different car, the 2006 Toyota 4Runner. However, it is still accessible from the selected car via links, so may be relevant.

How to read and use each reference is shown below.

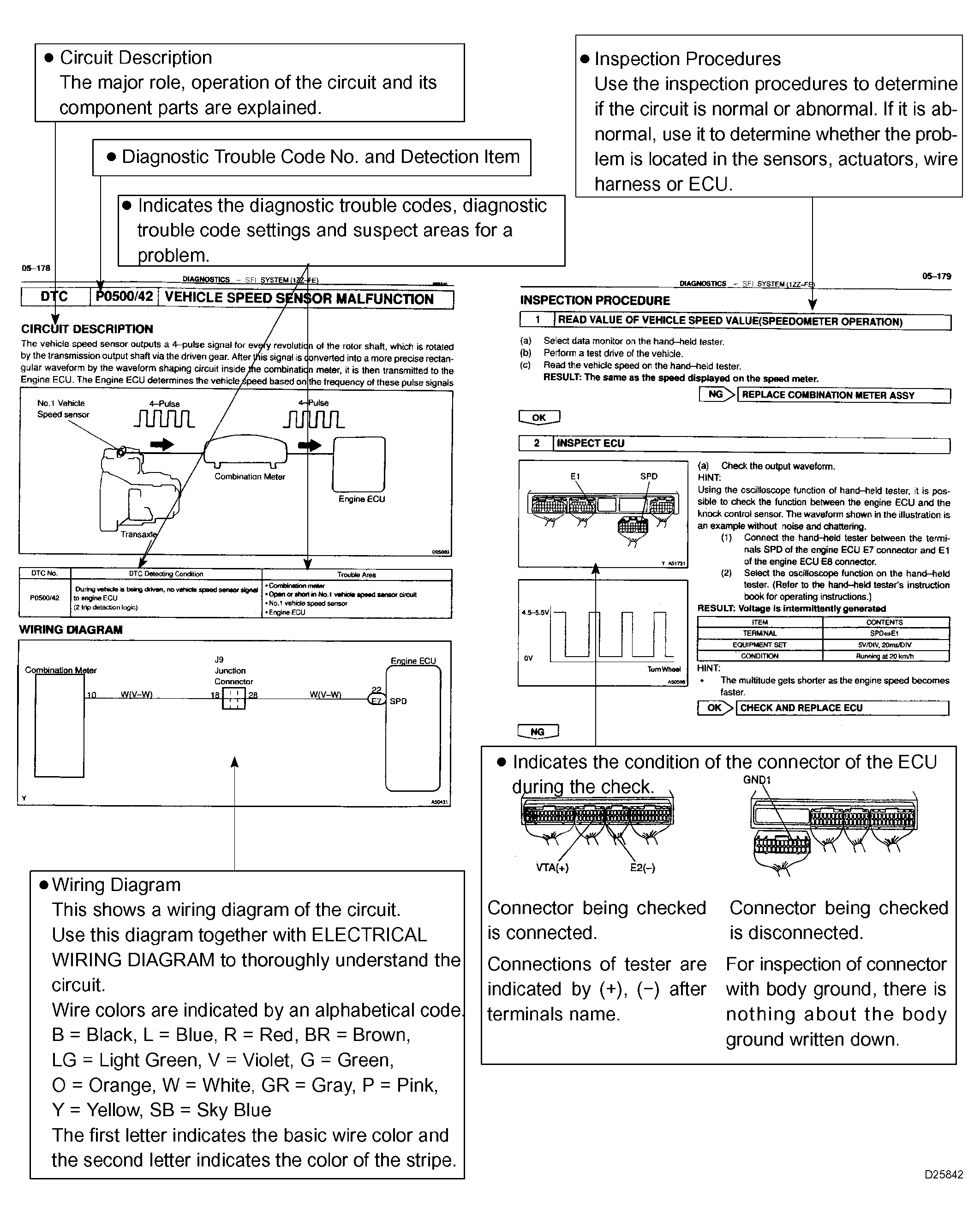

Fig 1: Diagnostic Circuit Inspection - Diagram
G04334718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
