Fuel Tank: Components

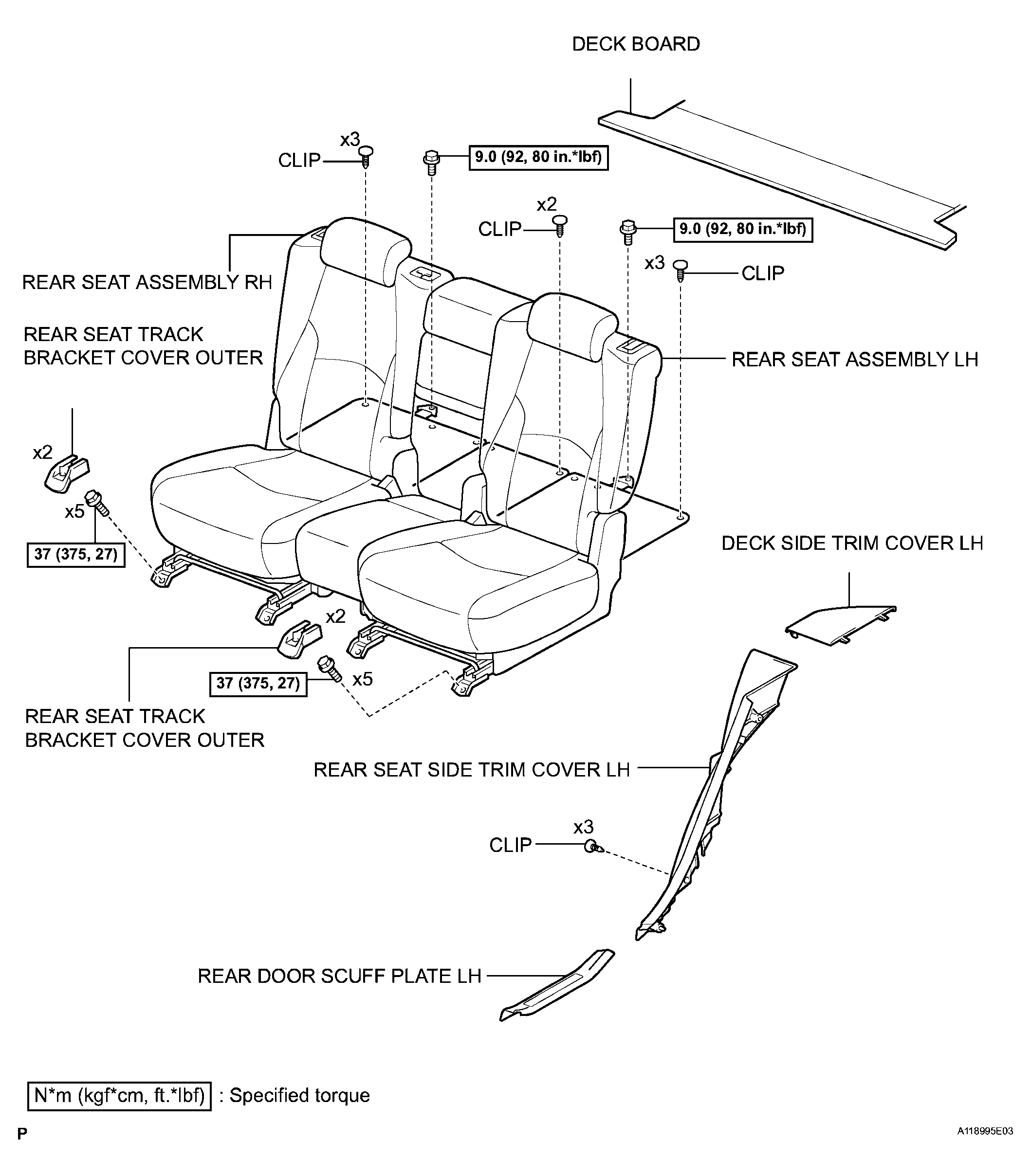

Fig 1: Exploded View Of Fuel Tank Components With Torque Specifications (1 Of 5)
G04088058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

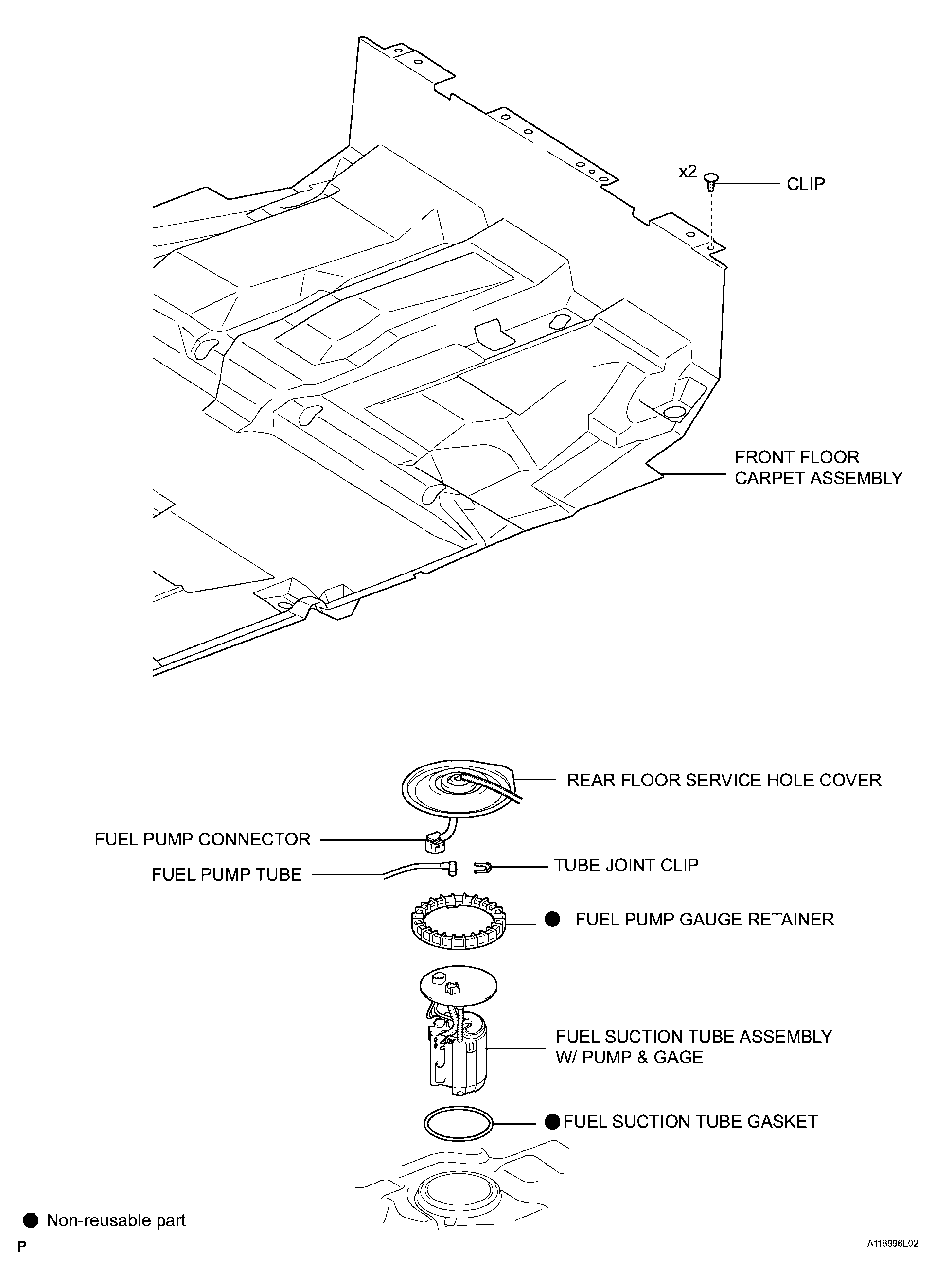

Fig 2: Exploded View Of Fuel Tank Components (2 Of 5)
G04088059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

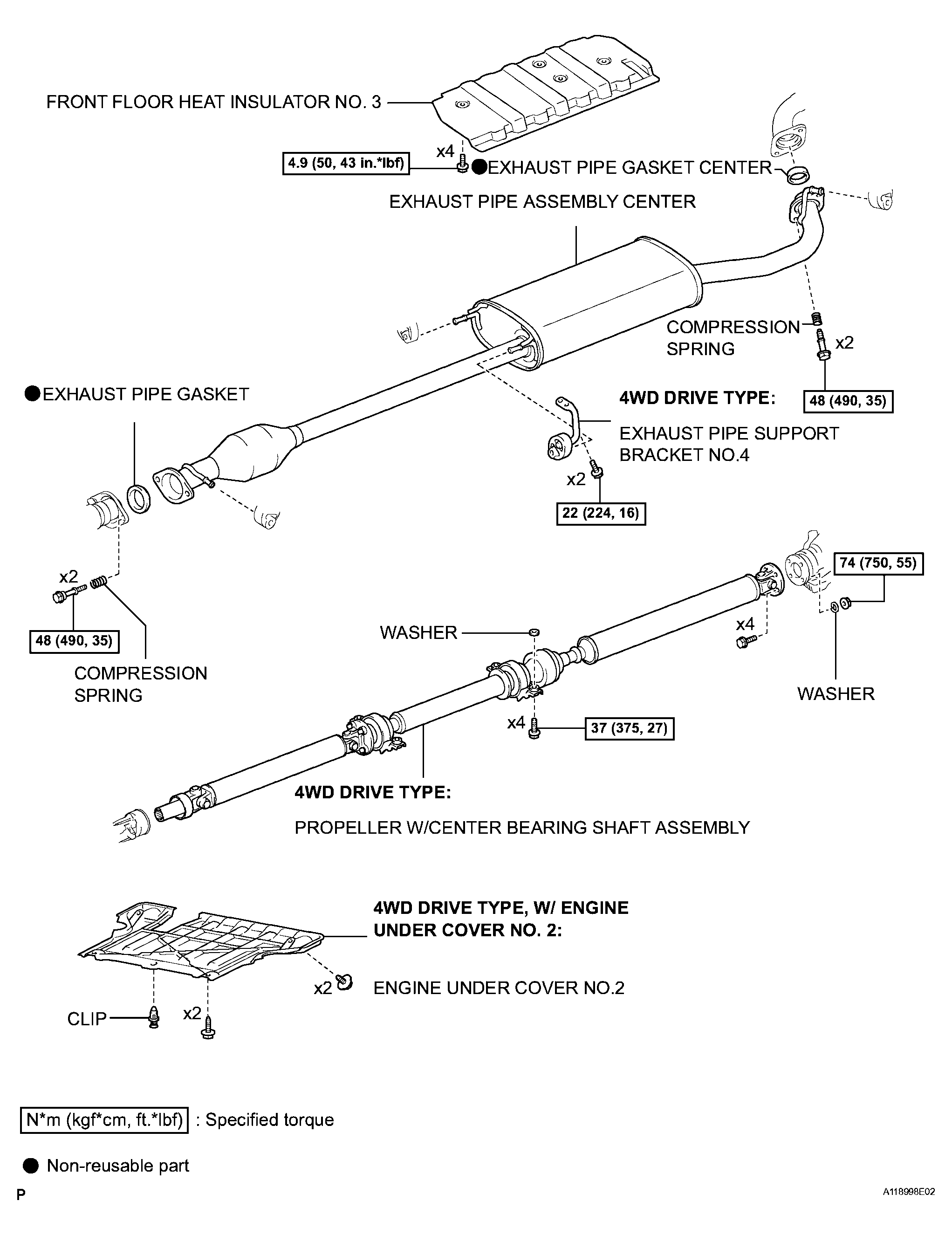

Fig 3: Exploded View Of Fuel Tank Components With Torque Specifications (3 Of 5)
G04088060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

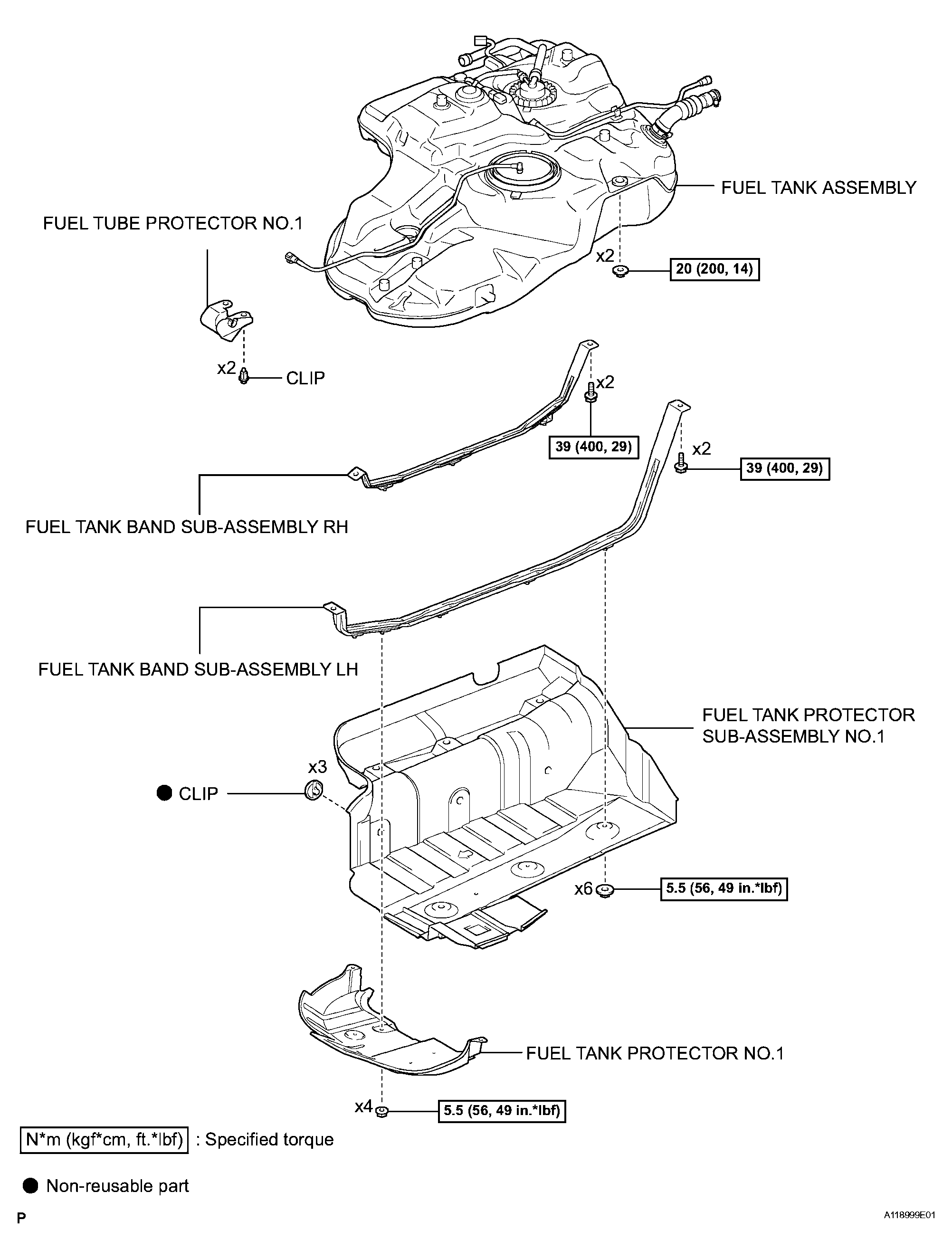

Fig 4: Exploded View Of Fuel Tank Components With Torque Specifications (4 Of 5)
G04088061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

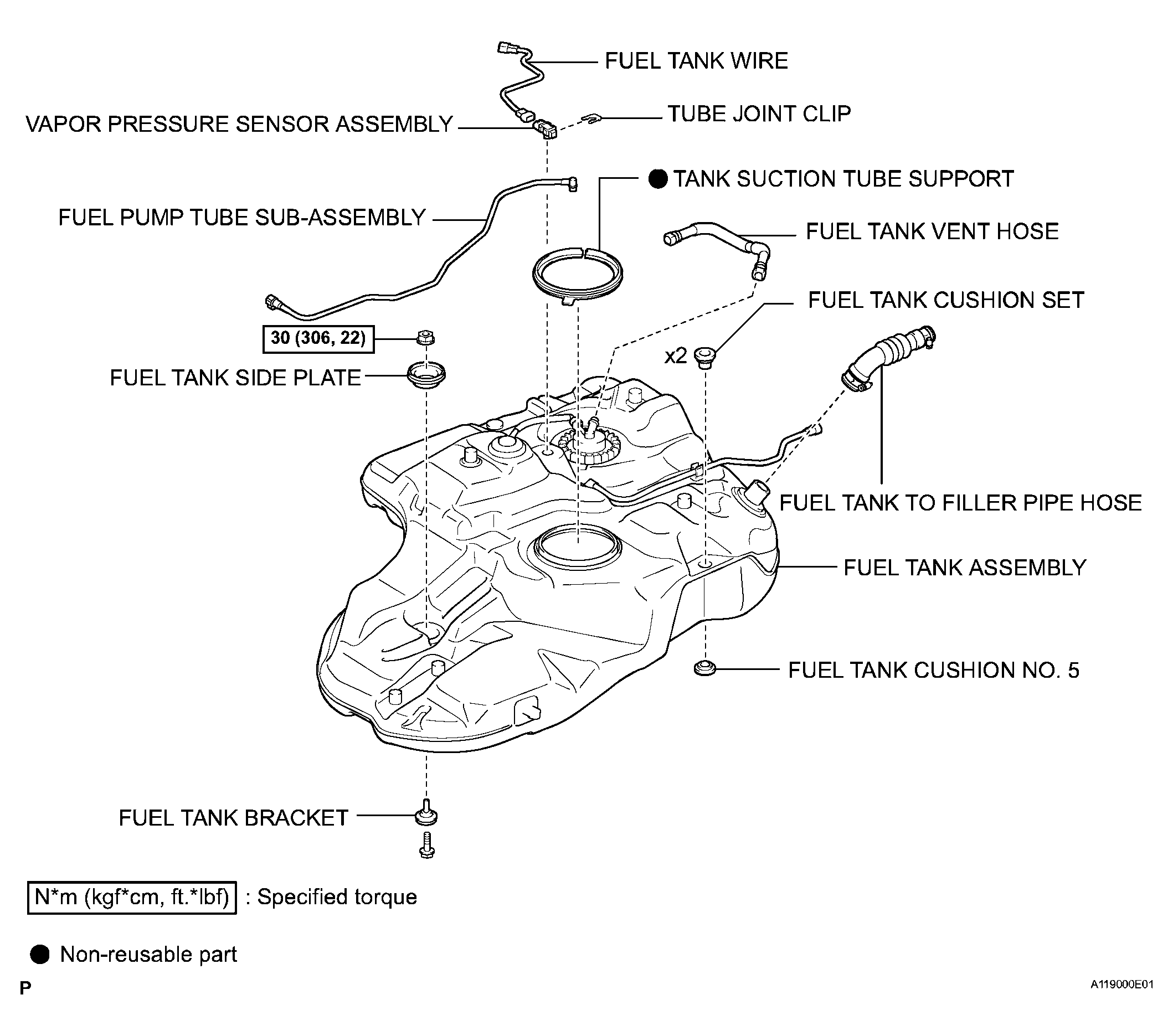

Fig 5: Exploded View Of Fuel Tank Components With Torque Specifications (5 Of 5)
G04088062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
