Rear Power Point Socket: Installation

  1. INSTALL POWER OUTLET SOCKET COVER REAR
    1. Engage the 2 claws and install the power outlet socket cover rear.
    Fig 1: Installing Power Outlet Socket Rear Cover
    G04093161Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL REAR POWER POINT SOCKET
    1. Place the rear power point socket with the notch on the power point socket cover, and push in the rear power point socket as hard as possible to install it.

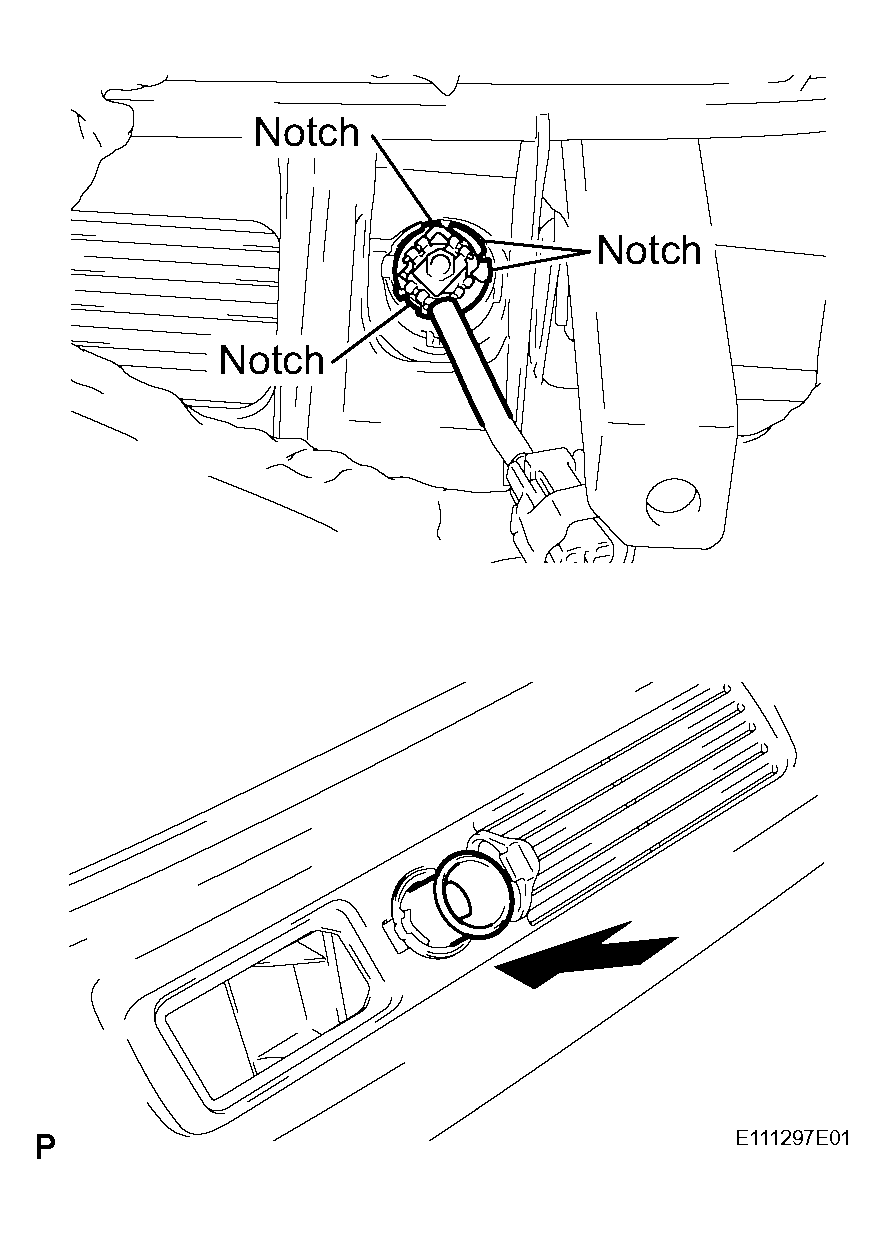

      Fig 2: Installing Rear Power Point Socket
      G04093162Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL ROOF SIDE GARNISH ASSEMBLY INNER LH
  4. INSTALL NO. 1 TONNEAU COVER HOLDER CAP
  5. INSTALL NO. 2 ROOM LIGHT ASSEMBLY
  6. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
  7. INSTALL ROPE HOOK
  8. INSTALL REAR SEAT SIDE COVER LH
  9. INSTALL REAR NO. 1 SEAT OUTER BELT ASSEMBLY LH
    1. Install the rear No. 1 seat outer belt assembly LH with the bolt.

      Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  10. INSTALL DECK SIDE TRIM COVER LH
  11. INSTALL REAR FLOOR FINISH SIDE PLATE LH
  12. INSTALL REAR FLOOR FINISH PLATE
  13. INSTALL DECK SIDE TRIM BOX LH
  14. INSTALL DECK SIDE TRIM BOX RH
  15. INSTALL BACK DOOR WEATHERSTRIP
  16. INSTALL NO. 3 DECK BOARD SUB-ASSEMBLY
  17. INSTALL NO. 2 DECK BOARD SUB-ASSEMBLY
  18. INSTALL DECK FLOOR BOX REAR
  19. INSTALL DECK FLOOR BOX FRONT
  20. INSTALL JACK CARRIER ASSEMBLY
  21. INSTALL JACK ASSEMBLY
  22. INSTALL JACK CARRIER SUPPORT
  23. INSTALL TONNEAU COVER ASSEMBLY
  24. INSTALL DECK BOARD SUB-ASSEMBLY
  25. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH
  26. INSTALL REAR DOOR SCUFF PLATE LH
