Power Point Socket: Removal

REMOVE CONSOLE BOX HOLE COVER (See REMOVAL )
REMOVE NO. 2 CONSOLE BOX HOLE COVER (See REMOVAL )
REMOVE REAR CONSOLE BOX (See REMOVAL )
REMOVE CONSOLE COVER LOWER
REMOVE POWER POINT SOCKET
1. Turn the power point socket in counterclockwise as shown in the illustration and disengage the claw between the power point socket and the power point socket cover.
2. Push out the power point socket.

  Fig 1: Disengaging Claw Between Power Point Socket And Power Point Socket Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Align the power point socket with the notch on the power point socket cover, and remove the power point socket.

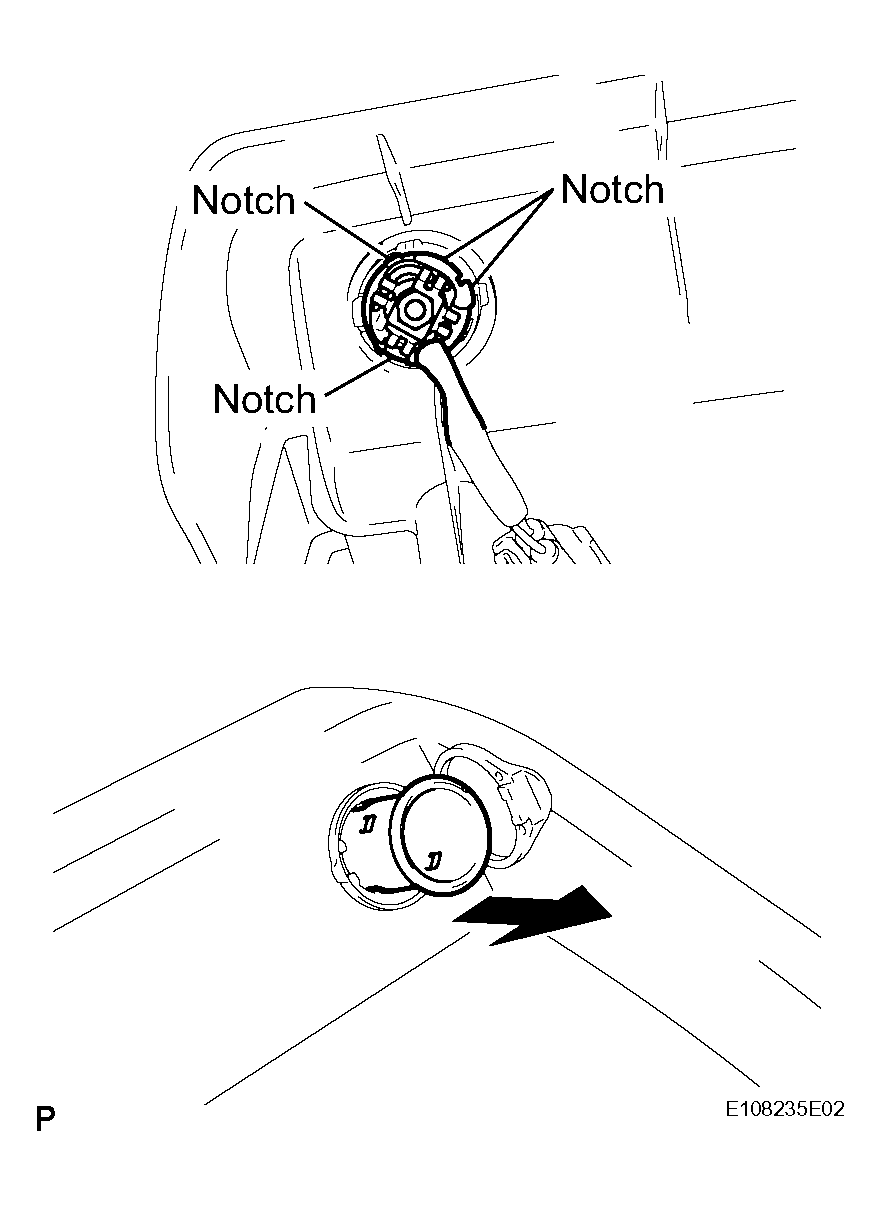

Fig 2: Removing Power Point Socket
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POWER POINT SOCKET COVER
1. Disengage the 2 claws and remove the power point socket cover.
Fig 3: Removing Power Point Socket Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
