Inspection Procedure

HINT:

After the inspection is completed, clear the DTCs.

1. CHECK VEHICLE SENSOR (NAVIGATION CHECK MODE)
   1. Enter the "Navigation Check" mode (Vehicle Sensors) (See NAVIGATION CHECK MODE ).
   2. Check the gyro voltage.

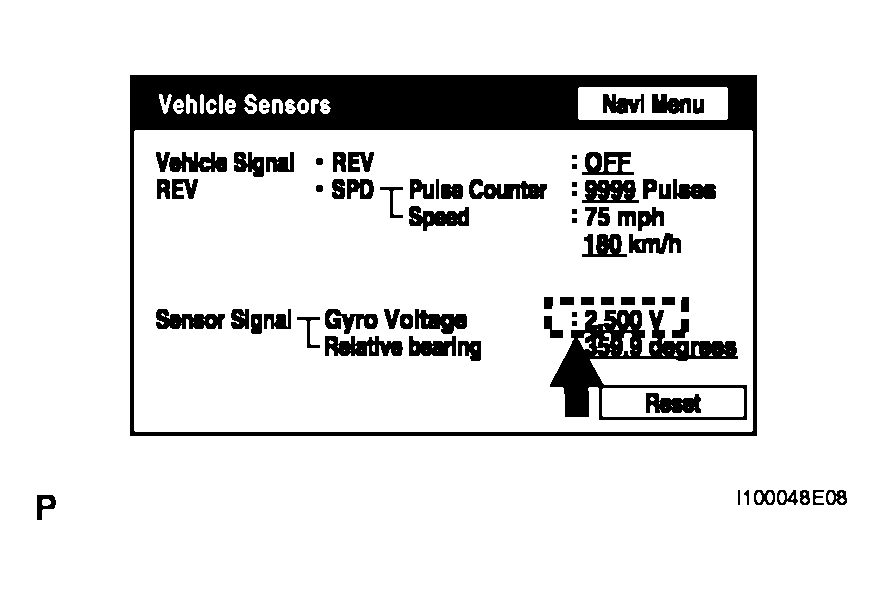

      Fig 1: Multi-Display Screen - Vehicle Sensors

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard voltage: 0.1 to 4.5 V

   NG: REPLACE NAVIGATION ECU

   OK: Go to next step.

2. CLEAR DTC
   1. Clear the DTCs (See DTC CHECK/CLEAR ).
3. RECHECK DTC
   1. Recheck for DTCs and check if the same trouble occurs again.

      HINT:

      If DTCs are detected frequently, replace the navigation ECU.

      OK: Malfunction disappears.

   NG: REPLACE NAVIGATION ECU END

   OK: END
