Navigation Ecu: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE DECK BOARD SUB-ASSEMBLY (See  REMOVAL  )
  3. REMOVE TONNEAU COVER ASSEMBLY
  4. REMOVE JACK CARRIER SUPPORT
  5. REMOVE JACK ASSEMBLY
  6. REMOVE JACK CARRIER ASSEMBLY
  7. REMOVE DECK FLOOR BOX FRONT (See  REMOVAL  )
  8. REMOVE DECK FLOOR BOX REAR (See  REMOVAL  )
  9. REMOVE DECK NO. 2 BOARD SUB-ASSEMBLY (See  REMOVAL  )
  10. REMOVE DECK NO. 3 BOARD SUB-ASSEMBLY (See  REMOVAL  )
  11. REMOVE REAR FLOOR FINISH PLATE (See  REMOVAL  )
  12. REMOVE DECK SIDE TRIM LH BOX (See  REMOVAL  )
  13. REMOVE DECK SIDE TRIM RH BOX
  14. REMOVE NAVIGATION ECU
    1. Disengage the clamp and disconnect the 3 connectors.
    2. Remove the 3 bolts and the navigation ECU.

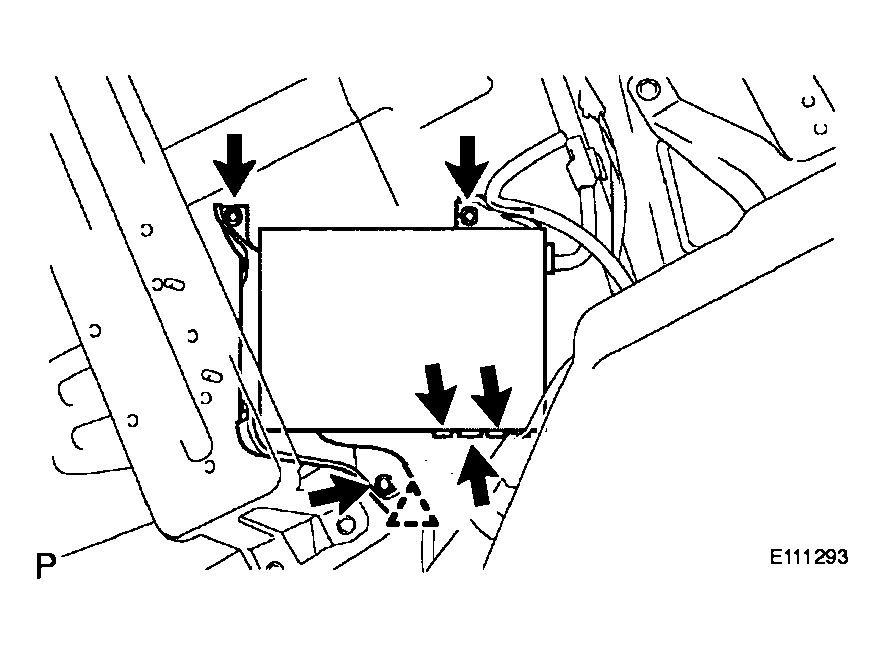

    Fig 1: Removing Navigation ECU
    G04093070Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE DISC PLAYER BRACKET
    1. Remove the screw and the disc player bracket.

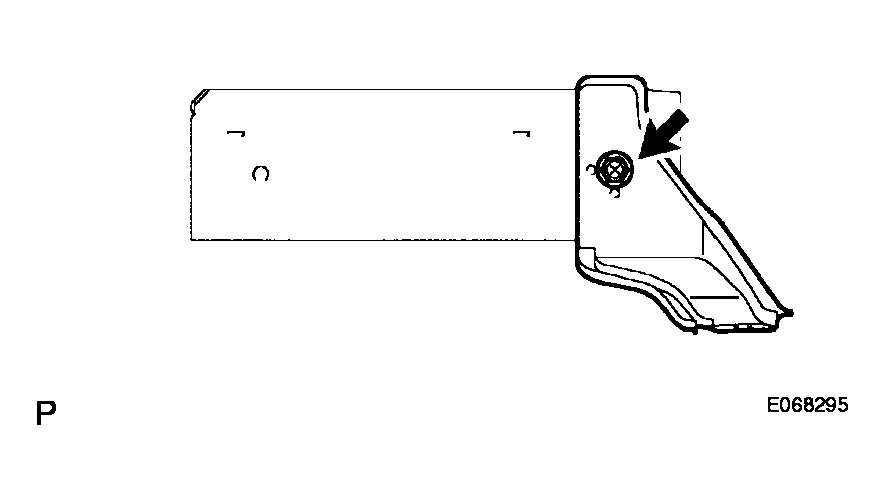

    Fig 2: Removing Disc Player Bracket
    G04093071Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. REMOVE NO. 2 DISC PLAYER BRACKET
    1. Remove the 2 screws and the No.2 disc player bracket.

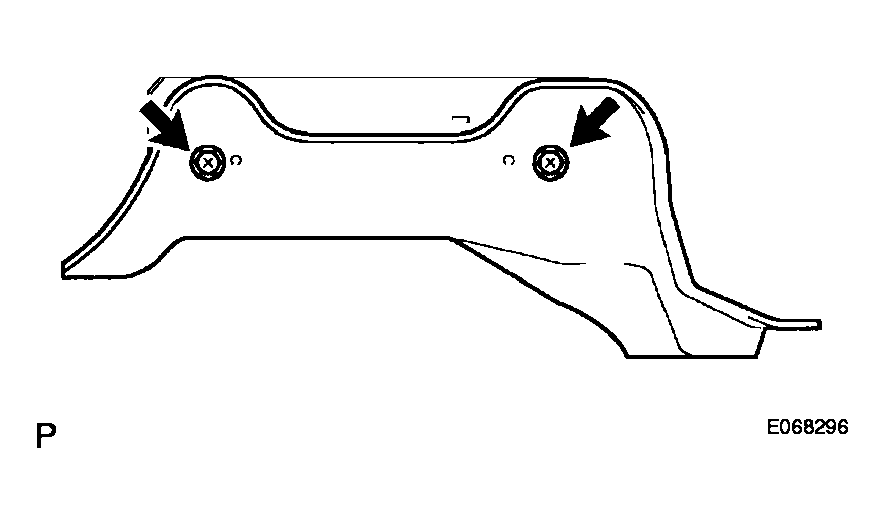

    Fig 3: Removing No 2 Disc Player Bracket Screws
    G04093072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
