Video Terminal: Removal
- DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
- REMOVE REAR DOOR SCUFF PLATE RH (See REMOVAL
)
- REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP RH
- REMOVE DECK BOARD SUB-ASSEMBLY (See REMOVAL
)
- REMOVE TONNEAU COVER ASSEMBLY
- REMOVE JACK CARRIER SUPPORT
- REMOVE JACK ASSEMBLY
- REMOVE JACK CARRIER ASSEMBLY
- REMOVE DECK FLOOR BOX FRONT (See REMOVAL
)
- REMOVE DECK FLOOR BOX REAR (See REMOVAL
)
- REMOVE DECK NO. 2 BOARD SUB-ASSEMBLY (See REMOVAL
)
- REMOVE DECK NO. 3 BOARD SUB-ASSEMBLY (See REMOVAL
)
- REMOVE BACK DOOR WEATHERSTRIP
- REMOVE DECK SIDE TRIM BOX LH (See REMOVAL
)
- REMOVE DECK SIDE TRIM BOX RH (See REMOVAL
)
- REMOVE DECK SIDE TRIM COVER RH (See REMOVAL
)
- REMOVE REAR FLOOR FINISH PLATE (See REMOVAL
)
- REMOVE REAR FLOOR FINISH SIDE PLATE RH (See REMOVAL
)
- SEPARATE REAR NO.1 SEAT BELT ASSEMBLY OUTER RH (See REMOVAL
)
- REMOVE REAR SEAT SIDE COVER RH (See REMOVAL
)
- REMOVE ROPE HOOK (See REMOVAL
)
- REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH (See REMOVAL
)
- REMOVE NO.2 ROOM LIGHT ASSEMBLY (See REMOVAL
)
- REMOVE NO.1 TONNEAU COVER HOLDER CAP
- REMOVE ROOF SIDE GARNISH ASSEMBLY INNER RH (See REMOVAL
)
- REMOVE VIDEO TERMINAL

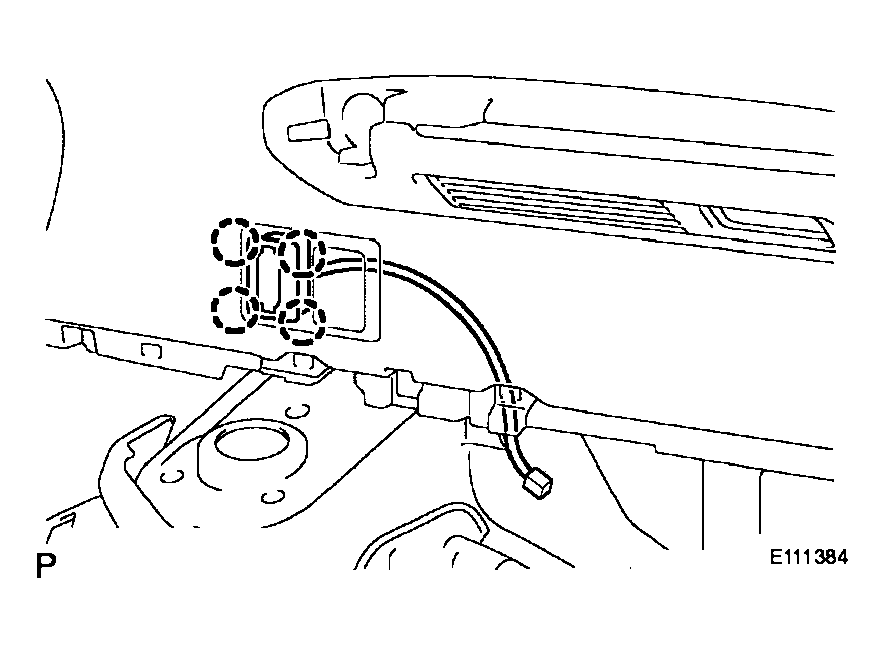

- Disengage the 4 claws and remove the video terminal.
