Stereo Component Amplifier: Installation

INSTALL STEREO COMPONENT AMPLIFIER (w/ Mark Levinson System)
1. Install the No.2 amplifier bracket with the 2 bolts.

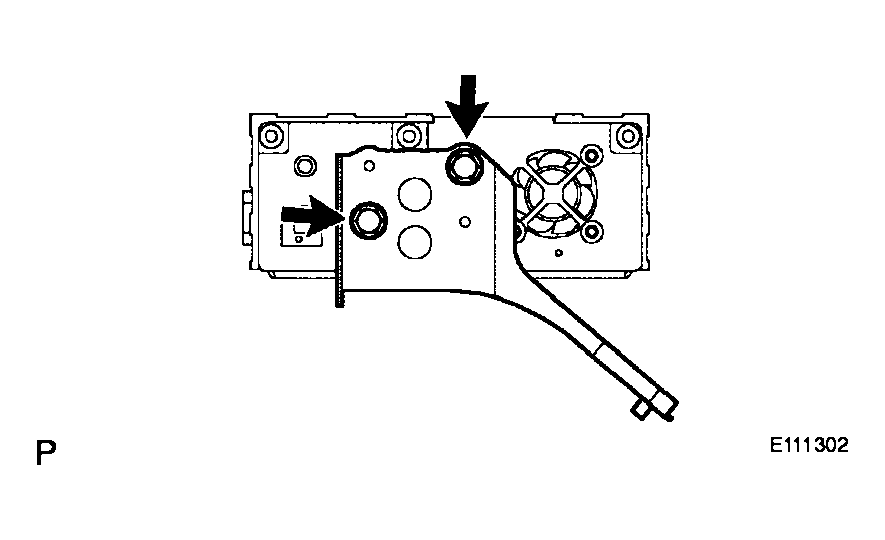

  Fig 1: Installing No.2 Amplifier Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the No.3 amplifier bracket with the 3 bolts.

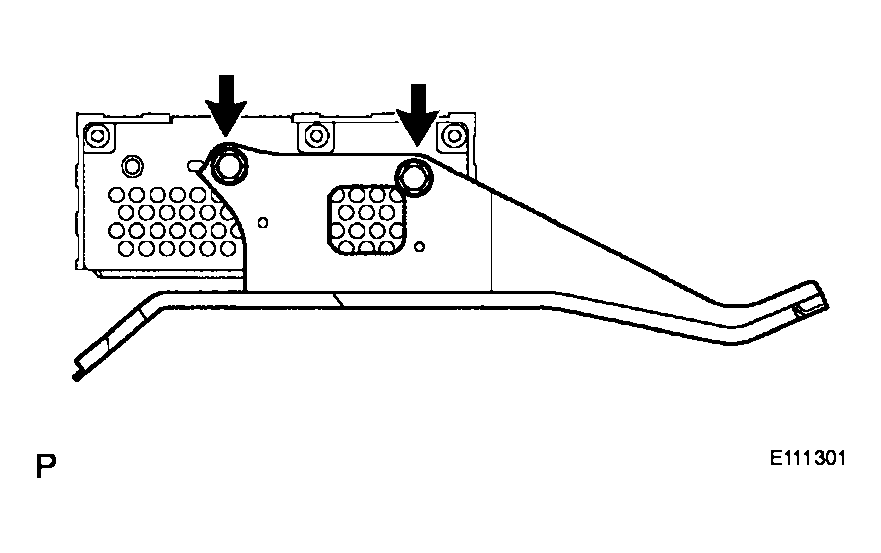

  Fig 2: Installing No.3 Amplifier Bracket With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the 4 connectors.
4. Install the stereo component amplifier with the 2 bolts and the nut.

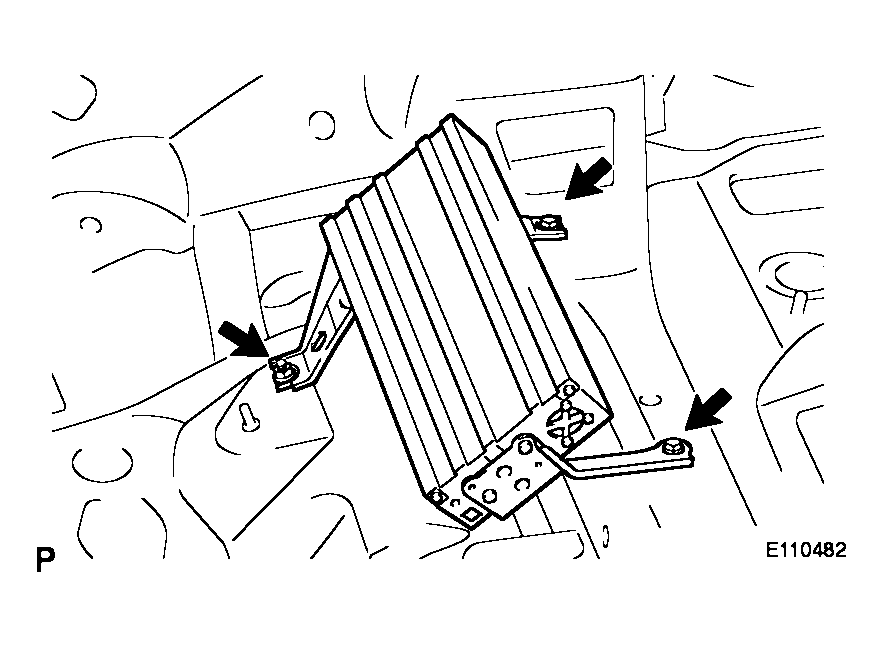

Fig 3: Installing Stereo Component Amplifier With Bolts And Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL STEREO COMPONENT AMPLIFIER
1. Connect the 2 connectors.
2. Install the stereo component amplifier with the 2 bolts and the nut.

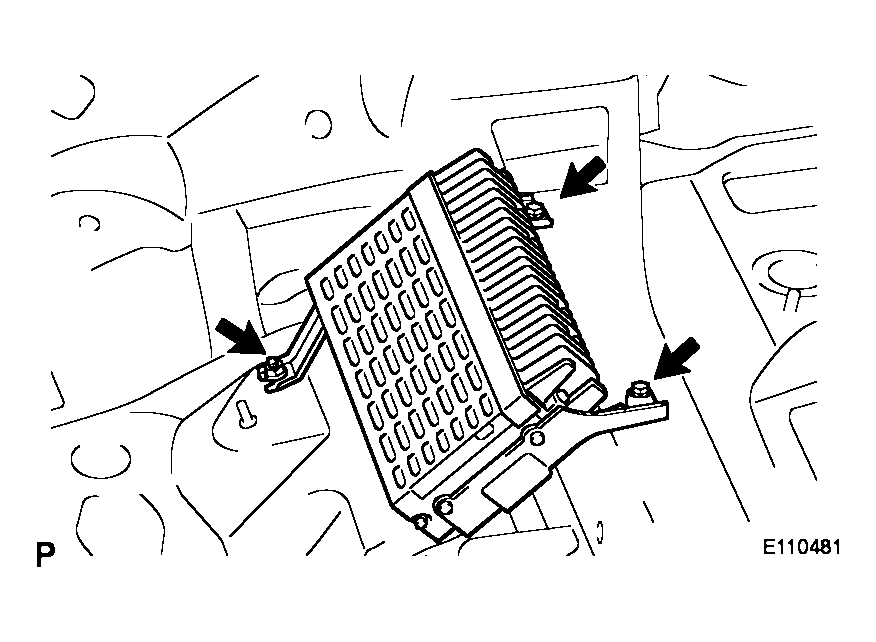

Fig 4: Installing Stereo Component Amplifier With Bolts And Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR SEAT SUB FLOOR PANEL ASSEMBLY

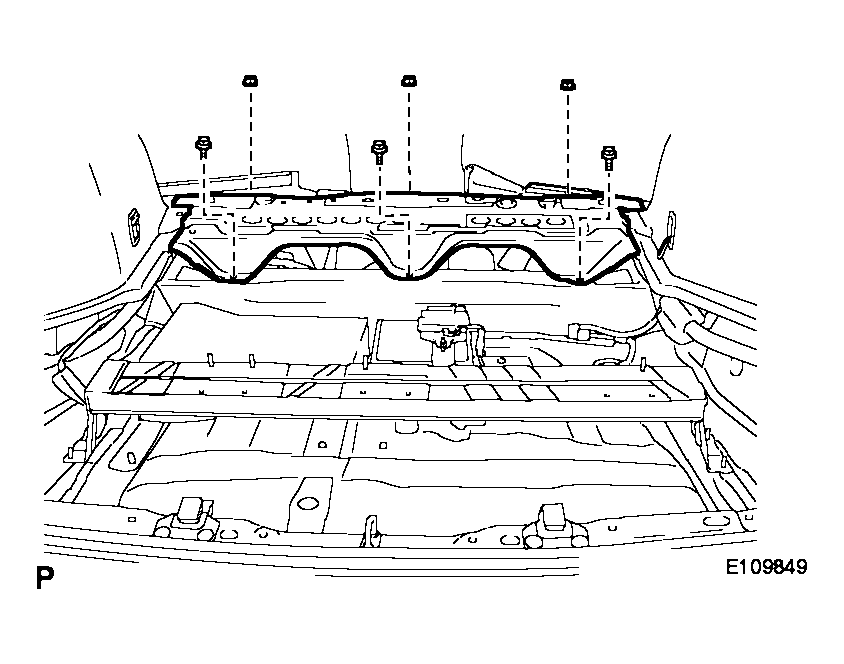

1. Install the rear seat sub floor panel assembly with the 3 bolts and the 3 nuts.
INSTALL DECK SIDE TRIM BOX RH
INSTALL DECK SIDE TRIM BOX LH
INSTALL REAR FLOOR FINISH PLATE
INSTALL DECK NO. 3 BOARD SUB-ASSEMBLY
INSTALL DECK NO. 2 BOARD SUB-ASSEMBLY
INSTALL DECK FLOOR BOX REAR
INSTALL DECK FLOOR BOX FRONT
INSTALL JACK CARRIER ASSEMBLY
INSTALL JACK ASSEMBLY
INSTALL JACK CARRIER SUPPORT
INSTALL DECK BOARD SUB-ASSEMBLY
INSTALL TONNEAU COVER ASSEMBLY
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from negative battery terminal. (See PRECAUTION )
