Steering Pad Switch: Installation

INSTALL STEERING PAD SWITCH LH
1. Engage the 2 claws and the pin.
2. Install the steering pad switch LH with the screw.
3. Connect the connector.

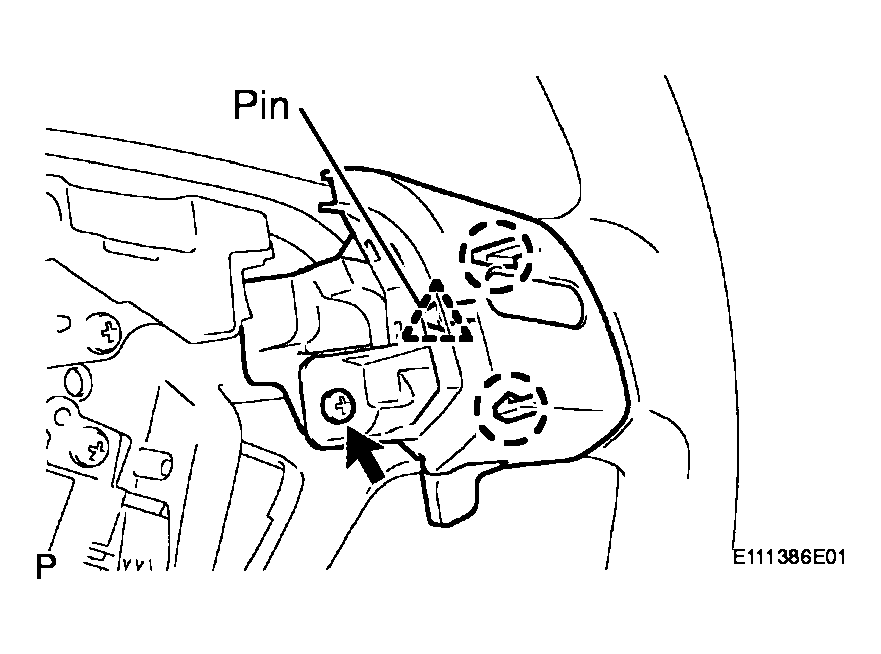

Fig 1: Locating Claws And Pin On Steering Pad Switch LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

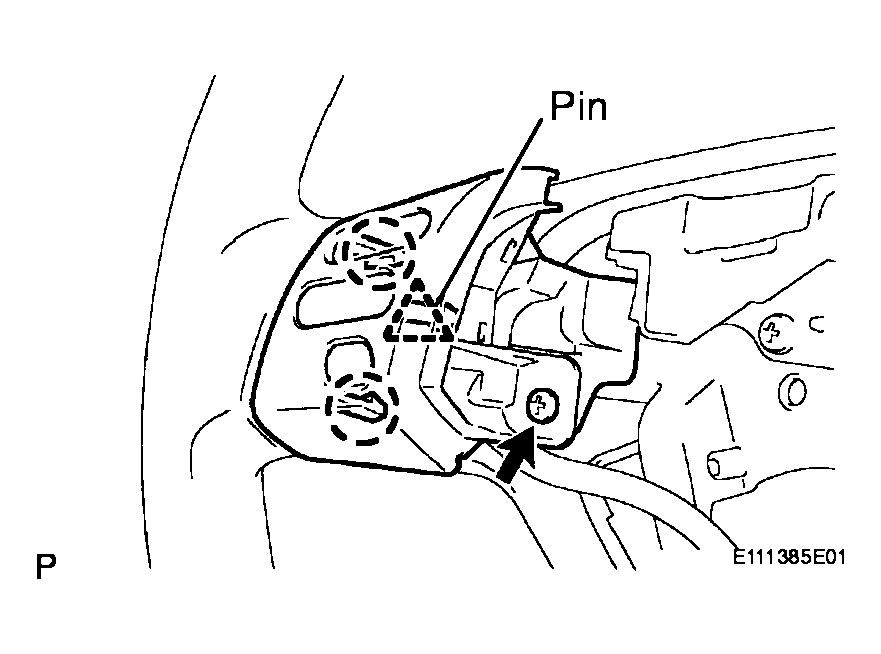

INSTALL STEERING PAD SWITCH RH
1. Engage the 2 claws and the pin.
2. Install the steering pad switch RH with the screw.
3. Connect the connector.
INSTALL STEERING PAD (See INSTALLATION )
INSTALL NO. 3 STEERING WHEEL COVER LOWER (See INSTALLATION )
INSTALL NO. 2 STEERING WHEEL COVER LOWER (See INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
PERFORM INITIALIZATION
NOTE: Some systems need initialization when disconnecting the cable from the negative battery terminal. (See PRECAUTION )
INSPECT STEERING PAD
(See ON-VEHICLE INSPECTION ).
INSPECT SRS WARNING LIGHT
(See DIAGNOSIS SYSTEM )
