Network Gateway Ecu: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  2. REMOVE FRONT DOOR SCUFF PLATE RH (See  REMOVAL  )
  3. REMOVE COWL SIDE TRIM SUB-ASSEMBLY RH (See  REMOVAL  )
  4. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See  REMOVAL  )
  5. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (See  REMOVAL  )
  6. REMOVE NETWORK GATEWAY ECU
    1. Disconnect the connector.
    2. Remove the screw and the network gateway ECU.

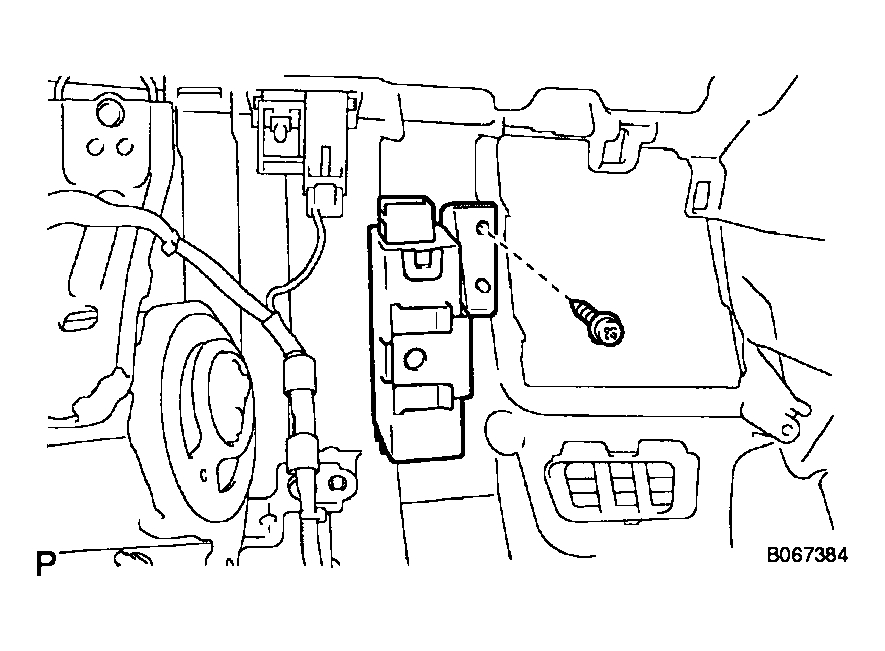

    Fig 1: Removing Network Gateway ECU
    G04092830Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
