Network Gateway Ecu: Installation
- INSTALL NETWORK GATEWAY ECU

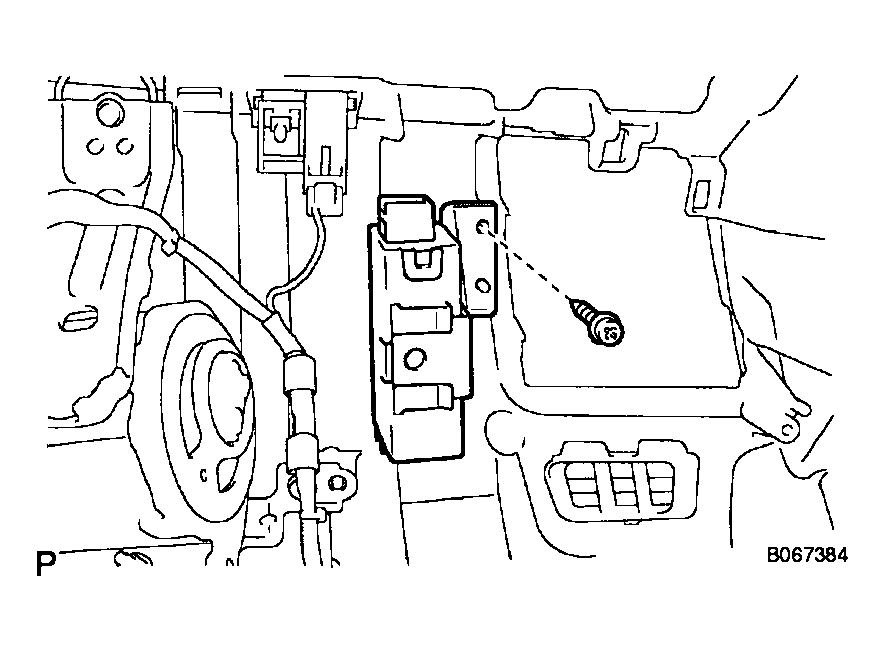

- Install the network gateway ECU with the screw.
- Connect the connector.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY (See INSTALLATION
)
- INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (See INSTALLATION
)
- INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH (See INSTALLATION
)
- INSTALL FRONT DOOR SCUFF PLATE RH
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
- PERFORM INITIALIZATION
NOTE:
Some systems need initialization when disconnecting the cable from negative battery terminal. (See PRECAUTION
)
